Generation of Geometric Measurement Collision-Free Path for Curved Part

Abstract:

Collision between the contact probe and the measuring part will occur easily when conducting geometric measurement of the curved parts with complex surface shape. To solve the security problem of geometric measurement, a generation method of collision-free measurement path was proposed. First, collision check was simplified into the calculation of line-surface intersection. Meanwhile, we used bounding box method and triangulation method as auxiliary tools. Then, when dealing with collision avoidance, we utilized bounding box in parametric directions to avoid collisions caused by neighboring surfaces. In addition, we used parameter extreme points to avoid collisions caused by the measuring surface itself. At last, path simulation of a complex curved part verifies the security of the path generated by means of the method proposed in this paper.

You might also be interested in these eBooks

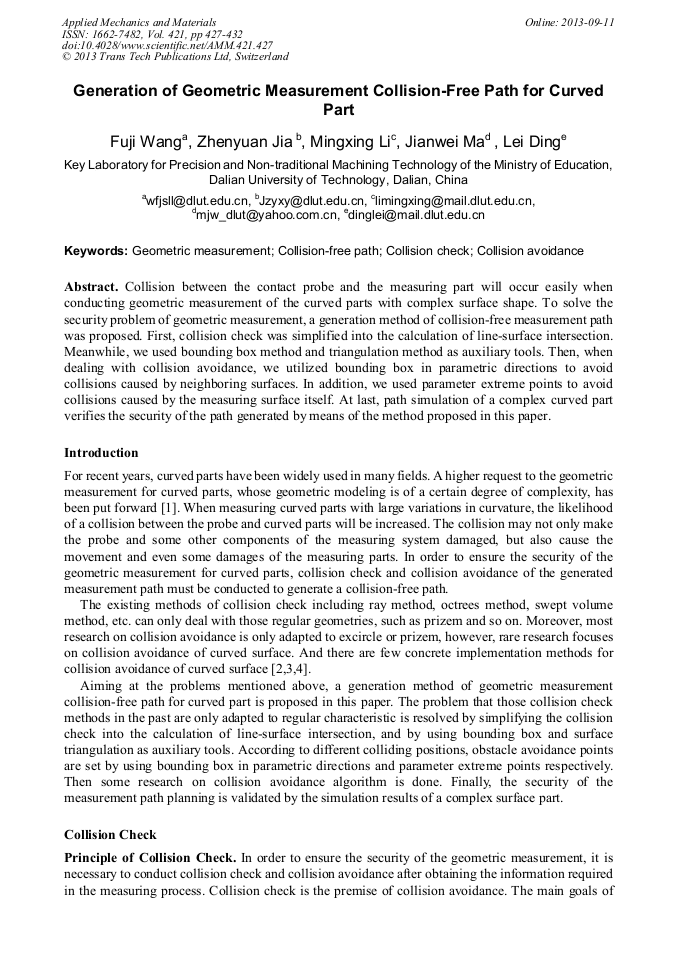

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 421)

Pages:

427-432

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.421.427

Citation:

Cite this paper

Online since:

September 2013

Authors:

Fu Ji Wang, Zhen Yuan Jia, Ming Xing Li, Jian Wei Ma, Lei Ding

Keywords:

Collision Avoidance, Collision Check, Collision-Free Path, Geometric Measurement

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Fan K C, Leu M C. Intelligent planning of CAD-directed inspection for coordinate measuring machines. Computer Integrated Manufacturing Systems. Vol. 11(1998), pp.43-51.

DOI: 10.1016/s0951-5240(98)00008-1

Google Scholar

[2] Lin Y J, Murugappan P. A new algorithm for determining a collision-free path for a CMM probe. International Journal of Machine Tools and Manufacture. Vol. 39(1999), pp.1397-1408.

DOI: 10.1016/s0890-6955(99)00006-1

Google Scholar

[3] Lu E, Ni J, Wu S M. An algorithm for the generation of an optimum CMM inspection path. Transactions-American Society of Mechanical Engineers Journal of Dynamic Systems Measurement and Control. Vol. 116(1994), pp.396-396.

DOI: 10.1115/1.2899234

Google Scholar

[4] Yau H T, Menq C H. Automated CMM path planning for dimensional inspection of dies and molds having complex surfaces. International Journal of Machine Tools and Manufacture. Vol. 35(1995), pp.861-876.

DOI: 10.1016/0890-6955(94)e0024-d

Google Scholar

[5] Qin Zhang, Kun Huang, Guangming Li. Improvement of collision-detection algorithm based on OBB. Journal of Huazhong University of Science and Technology: Nature Science Edition. Vol. 31(2003), pp.46-48.

Google Scholar
