Profile Estimation of Linear Slide in the Presence of Straightness, Yawing and Rolling Motion Errors

Abstract:

This paper presents a novel measurement system for the on-machine estimation of the profiles of a linear slide in the presence of three motion errors, i.e. straightness, yawing and rolling. The system consists of eight displacement sensors, a mounting stage and a data acquisition system. The Fourier Eight Sensor (F8S) method is employed for the error separation with software programs written in MATLAB codes. A prototype is designed, built and fitted to an axis of the precision slide. Experiments are performed to test the repeatability of the profile results under three different slide speeds. Results confirm that the proposed measurement system is capable of determining the profiles with good repeatability in the presence of straightness, yaw and roll errors of the slide.

You might also be interested in these eBooks

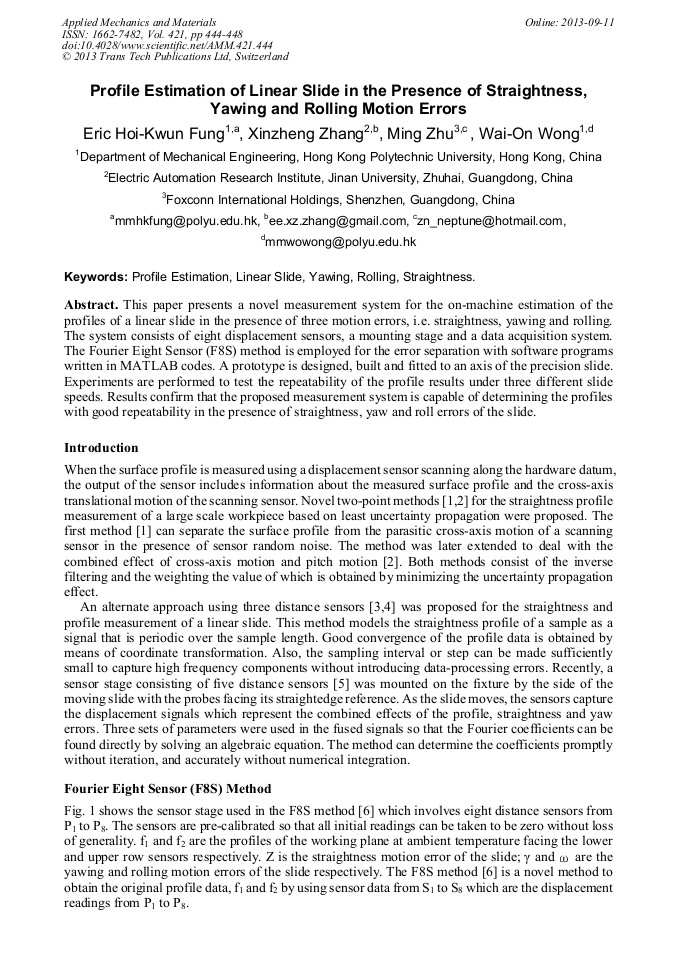

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 421)

Pages:

444-448

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.421.444

Citation:

Cite this paper

Online since:

September 2013

Authors:

Eric Hoi Kwun Fung, Xin Zheng Zhang, Ming Zhu, Wai On Wong

Keywords:

Rolling , Linear Slide, Profile Estimation, Straightness, Yawing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] E. Okuyama: Precis. Eng. Vol. 34 (2010), p.49.

Google Scholar

[2] E. Okuyama, H. Akata and H. Ishikawa: Precis. Eng. Vol. 34 (2010), p.683.

Google Scholar

[3] E.H.K. Fung and S.M. Yang: Meas. Sci. Technol. Vol. 11 (2000), p.1515.

Google Scholar

[4] E.H.K. Fung and S.M. Yang: Measurement Vol. 29 (2001), p.51.

Google Scholar

[5] E.H.K. Fung and M. Zhu: Measurement Vol. 45 (2012), p.1323.

Google Scholar

[6] E.H.K. Fung, M. Zhu, X.Z. Zhang and W.O. Wong, in: Proceedings of ASME International Mechanical Engineering Congress and Exposition (2010), IMECE 2010-37611.

Google Scholar
