The Feature Parametric Design of Crankshaft for Reciprocating Compressor

Abstract:

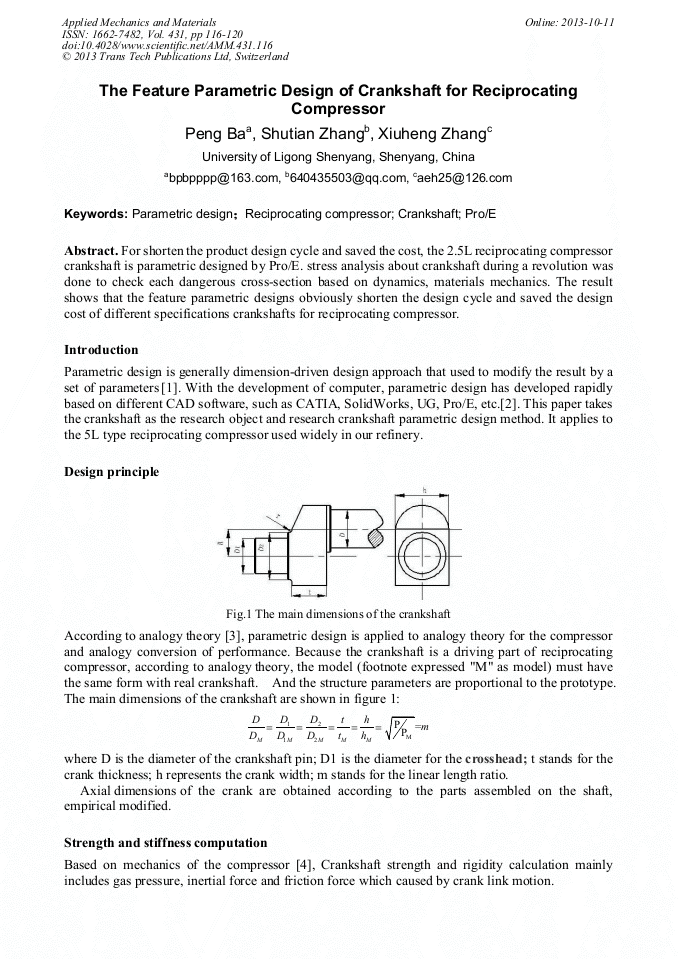

For shorten the product design cycle and saved the cost, the 2.5L reciprocating compressor crankshaft is parametric designed by Pro/E. stress analysis about crankshaft during a revolution was done to check each dangerous cross-section based on dynamics, materials mechanics. The result shows that the feature parametric designs obviously shorten the design cycle and saved the design cost of different specifications crankshafts for reciprocating compressor.
