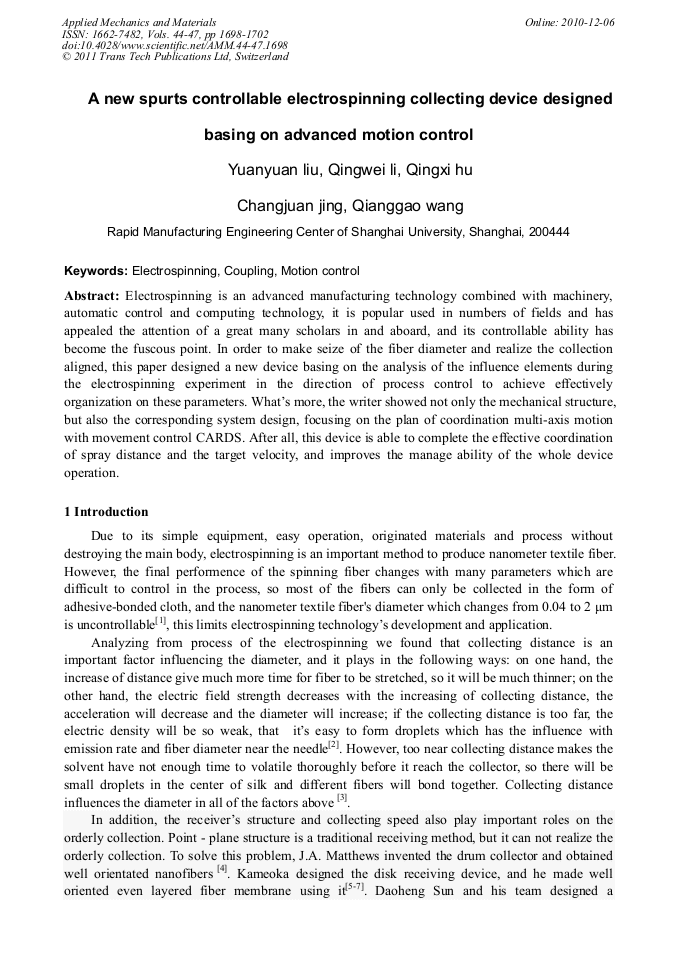

A New Spurts Controllable Electrospinning Collecting Device Designed Basing on Advanced Motion Control

Abstract:

Electrospinning is an advanced manufacturing technology combined with machinery, automatic control and computing technology, it is popular used in numbers of fields and has appealed the attention of a great many scholars in and aboard, and its controllable ability has become the fuscous point. In order to make seize of the fiber diameter and realize the collection aligned, this paper designed a new device basing on the analysis of the influence elements during the electrospinning experiment in the direction of process control to achieve effectively organization on these parameters. What’s more, the writer showed not only the mechanical structure, but also the corresponding system design, focusing on the plan of coordination multi-axis motion with movement control CARDS. After all, this device is able to complete the effective coordination of spray distance and the target velocity, and improves the manage ability of the whole device operation.

• Periodical: Applied Mechanics and Materials (Volumes 44-47)
• Pages: 1698-1702
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.44-47.1698
• Online since: December 2010
• Authors: Yuan Yuan Liu, Qing Wei Li, Qing Xi Hu, Chang Juan Jing, Qiang Gao Wang
• Keywords: Coupling, Electro-Spinning, Motion Control

References

[1] Park, H.S., Park, Y.O. Korean Journal of Chemical Engineering. 22, 165-172 (2005).

[2] Pawlowski K J，Belvin H L，Raney D L. Polymer. 44, 1309-1314 (2003).

[3] Wanhong xiao, Yongchun zeng. The effects of processing parameter and whipping on fiber morphology in electrospping [doctor paper]. (2009).

[4] J.A. Matthews, G.E. Wnek, D. G Simpson. Biomacromolecules. 3, 232-238 (2002).

[5] Kajmeoka. J, Craighead H.G. Applied physics letters. 83, 371-373 (2003).

[6] Paul D. Dalton, Dirk Grafahrend , Kristina Klinkhammer. Polymer. 48, 6823-6833 (2007).

[7] Kim，C. -W, Frey, M. W, Marquez, M., Joo, Y.L. Journal of Polymer Science. 43, 1673–1683 (2005).

[8] Lingyun Wang, Daoheng Sun, Dezhi Wu. A device of direct writing for Micro-nano-structures. Chinese patent CN 1966399A, May 23 (2007).

[9] Cuiru yang, Zhidong jia, Jianan liu. High Voltage Engineering. 35, 192-196 (2009).

[10] Sian F fennessey, Richard J Farris. Polymer. 45, 4217 - 4225 (2004).
