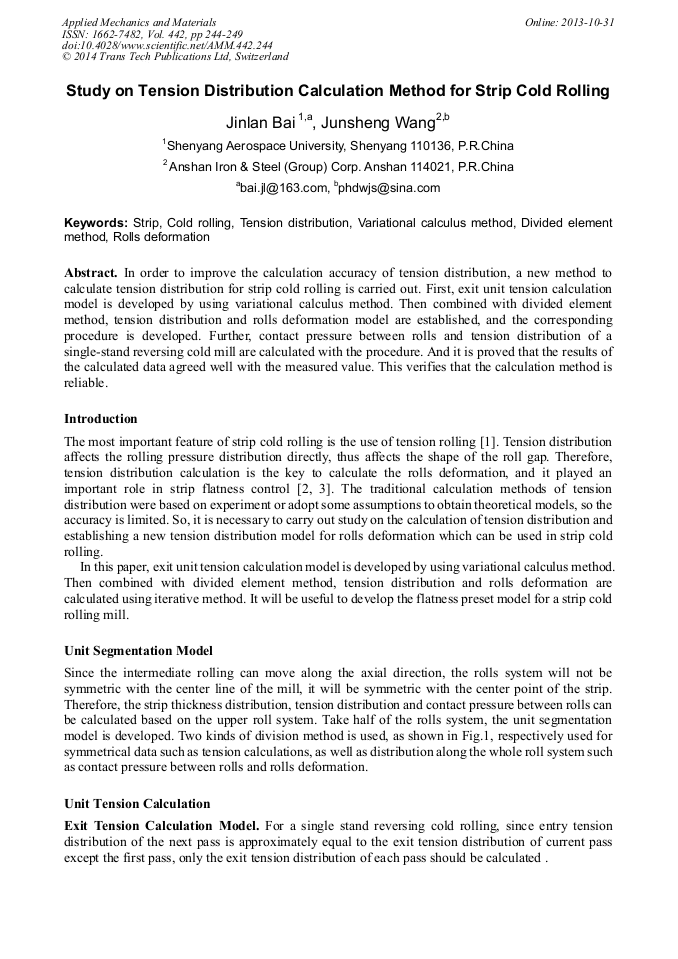

Study on Tension Distribution Calculation Method for Strip Cold Rolling

Abstract:

In order to improve the calculation accuracy of tension distribution, a new method to calculate tension distribution for strip cold rolling is carried out. First, exit unit tension calculation model is developed by using variational calculus method. Then combined with divided element method, tension distribution and rolls deformation model are established, and the corresponding procedure is developed. Further, contact pressure between rolls and tension distribution of a single-stand reversing cold mill are calculated with the procedure. And it is proved that the results of the calculated data agreed well with the measured value. This verifies that the calculation method is reliable.

• Periodical: Applied Mechanics and Materials (Volume 442)
• Pages: 244-249
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.442.244
• Online since: October 2013
• Authors: Jin Lan Bai*, Jun Sheng Wang
• Keywords: Cold Rolling, Divided Element Method, Rolls Deformation, Strip, Tension Distribution, Variational Calculus Method

References

[1] Guo-Dong Wang：Shape control and shape theory, Metallurgical Industry Press, Beijing (1986). (in Chinese).

[2] Hiruta toshiki, Akagi Isao, Mizushima Narihito: Kawasaki Steel Technical Report Vol. 37 (1997), p.9.

[3] Qiao Junfei, Wang Xiaobo, Chai Tianyou: Control Theory and Applications Vol. 17 (2000), p.393.

[4] Hong-Min Liu, Ying-Rui Wang: International Journal of Mechanical Sciences, Vol. 45 (2003), p.1541.

[5] Hong-Min Liu．3 d rolling theory and its application, Science Press, Beijing (1999)．(in Chinese).
