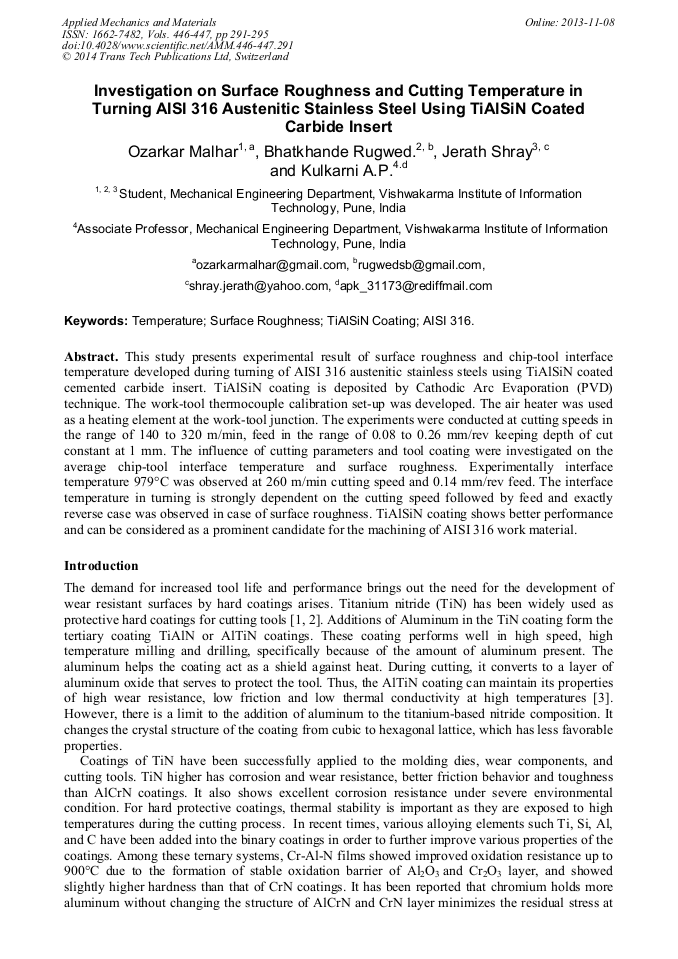

Investigation on Surface Roughness and Cutting Temperature in Turning AISI 316 Austenitic Stainless Steel Using TiAlSiN Coated Carbide Insert

Abstract:

This study presents experimental result of surface roughness and chip-tool interface temperature developed during turning of AISI 316 austenitic stainless steels using TiAlSiN coated cemented carbide insert. TiAlSiN coating is deposited by Cathodic Arc Evaporation (PVD) technique. The work-tool thermocouple calibration set-up was developed. The air heater was used as a heating element at the work-tool junction. The experiments were conducted at cutting speeds in the range of 140 to 320 m/min, feed in the range of 0.08 to 0.26 mm/rev keeping depth of cut constant at 1 mm. The influence of cutting parameters and tool coating were investigated on the average chip-tool interface temperature and surface roughness. Experimentally interface temperature 979°C was observed at 260 m/min cutting speed and 0.14 mm/rev feed. The interface temperature in turning is strongly dependent on the cutting speed followed by feed and exactly reverse case was observed in case of surface roughness. TiAlSiN coating shows better performance and can be considered as a prominent candidate for the machining of AISI 316 work material.

• Periodical: Applied Mechanics and Materials (Volumes 446-447)
• Pages: 291-295
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.446-447.291
• Online since: November 2013
• Authors: Malhar Ozarkar*, Rugwed Bhatkhande, Shray Jerath, A.P. Kulkarni
• Keywords: AISI 316, Surface Roughness (SR), Temperature, TiAlSiN Coating

References

[1] R.F. Bunshah, Handbook of Hard Coatings, 1st ed., Noyes: New Jersey-USA, (2001).

[2] V.G. Sargade, S. Gangopadhyay, M.H. Hasurkar, S. Paul, Deposition, Characterization and performance Evaluation of TiN coated HSS and cemented Carbide Cutting tools using Closed-field Unbalanced Magnetron Sputtering, Proc. 2nd Int. and 23rd AIMTDR conf., Chennai, pp.329-334, (2008).

[3] H. Takalka, E. Nakamura, T. Oshika And Nishiyama, Relationship between affinity of (Ti1_x, Alx)N layer toward iron and its cutting performance, Surf Coat Technol, vol 177-188, pp.306-414.

DOI: 10.1016/j.surfcoat.2003.09.009

[4] V.G. Sargade, S. Gangopadhyay, S. Paul, Effect of Coating Thickness and Dry Performance of TiN films, Mater. Manuf. Process, vol. 26, pp.1-6, (2011).

[5] A.A. Minevich, "Wear of cemented carbide inserts with multi-layer Ti-based PVD coatings, Surf. Coat. Technol., vol. 53, pp.161-170, (1992).

DOI: 10.1016/0257-8972(92)90118-t

[6] W. Grzesik, Experimental Investigation of the cutting Temperature when Turning with Coated indexable Inserts, Int. Jol. Machine Tools Manuf, vol. 44, pp.213-224, (2004).

DOI: 10.1016/s0890-6955(98)00044-3

[7] Ibrahim Ciftci and Seker, Determination of optimum cutting parameters during machining of AISI 304 austenitic stainless steel, Mater. Des., vol. 25, pp.303-305, (2005).

DOI: 10.1016/j.matdes.2003.10.011
