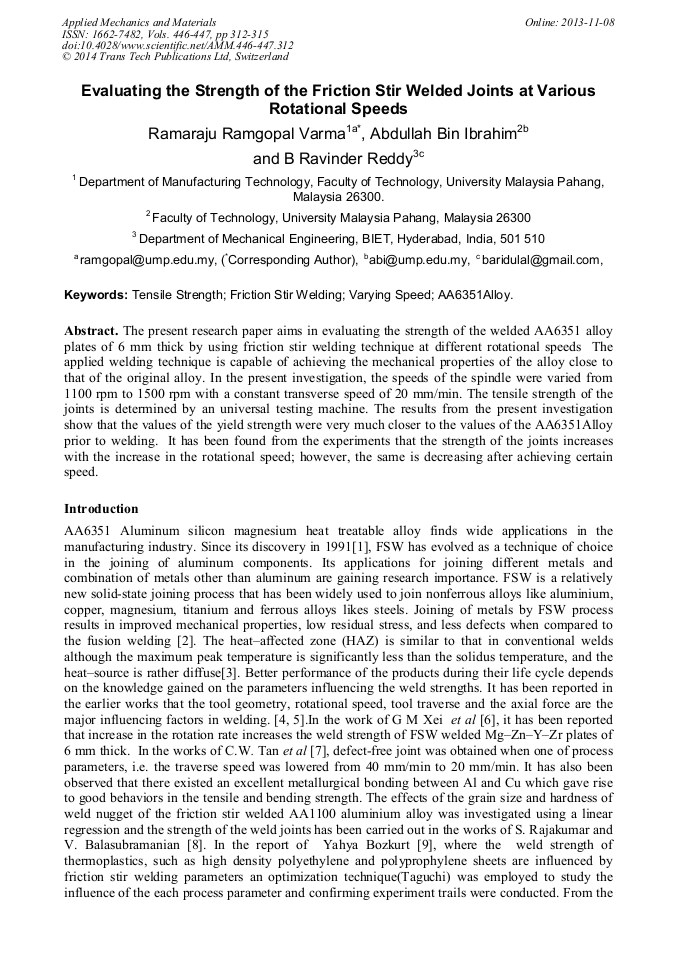

Evaluating the Strength of the Friction Stir Welded Joints at Various Rotational Speeds

Abstract:

The present research paper aims in evaluating the strength of the welded AA6351 alloy plates of 6 mm thick by using friction stir welding technique at different rotational speeds The applied welding technique is capable of achieving the mechanical properties of the alloy close to that of the original alloy. In the present investigation, the speeds of the spindle were varied from 1100 rpm to 1500 rpm with a constant transverse speed of 20 mm/min. The tensile strength of the joints is determined by an universal testing machine. The results from the present investigation show that the values of the yield strength were very much closer to the values of the AA6351Alloy prior to welding. It has been found from the experiments that the strength of the joints increases with the increase in the rotational speed; however, the same is decreasing after achieving certain speed.

You might also be interested in these eBooks

Advanced Research in Material Science and Mechanical Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 446-447)

Pages:

312-315

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.446-447.312

Citation:

Cite this paper

Online since:

November 2013

Authors:

Ramaraju Ramgopal Varma, Abdullah Bin Ibrahim, B. Ravinder Reddy

Keywords:

AA6351Alloy, Friction Stir Welding (FSW), Tensile Strength, Varying Speed

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Thomas WM, Nicholas ED, Needham JC, Murch MG, Templesmith P, Dawes CJ. GB Patent Application No. 9125978. 8, December; (1991).

Google Scholar

[2] Mishra RS, Ma ZY. Friction stir welding and processing. Mater Sci Eng R 2005; 50: 1–78.

Google Scholar

[3] R. Nandan, T. DebRoy and H. K. D. H. Bhadeshia, Recent Advances in Friction Stir Welding– Process, Weldment Structure and Properties, Progress in Materials Science 53 (2008) pp.980-1023.

DOI: 10.1016/j.pmatsci.2008.05.001

Google Scholar

[4] Cam G. Friction stir welded structural materials beyond Al-alloys. Int Mater Rev 2011; 56(1): 1–48.

Google Scholar

[5] Leal RM, Leitao C, Loureiro A, Rodrigues DM, Vilaca P. Material flow in heterogeneous friction stir welding of thin aluminium sheets: Effect of shoulder geometry. Mater Sci Eng A 2008; 498: 384–91.

DOI: 10.1016/j.msea.2008.08.018

Google Scholar

[6] G.M. Xie, Z.Y. Ma et al , Effect of Rotation Rate on Microstructures and Mechanical Properties of FSW Mg–Zn–Y–Zr Alloy Joints, J. Mater. Sci. Technol., 2011, 27(12), 1157-164.

DOI: 10.1016/s1005-0302(12)60012-7

Google Scholar

[7] C.W. Tan, Z.G. Jiang et al , Microstructural evolution and mechanical properties of dissimilar Al–Cu joints produced by friction stir welding, Materials and Design 51 (2013) 466–473.

DOI: 10.1016/j.matdes.2013.04.056

Google Scholar

[8] S. Rajakumar , V. Balasubramanian, Correlation between weld nugget grain size, weld nugget hardness and tensile strength of friction stir welded commercial grade aluminium alloy joints, Materials and Design 34 (2012) 242–251.

DOI: 10.1016/j.matdes.2011.07.054

Google Scholar

[9] Yahya Bozkurt, The optimization of friction stir welding process parameters to achieve maximum tensile strength in polyethylene sheets, Materials and Design 35 (2012) 440–445.

DOI: 10.1016/j.matdes.2011.09.008

Google Scholar

[10] Yahya Bozkurt, Mustafa Kemal Bilici, Application of Taguchi approach to optimize of FSSW parameters on joint properties of dissimilar AA2024-T3 and AA5754-H22 aluminum alloys, Materials and Design 51 (2013) 513–521.

DOI: 10.1016/j.matdes.2013.04.074

Google Scholar

[11] Lei Cui, Xinqi Yang et al Process parameter influence on defects and tensile properties of friction stir welded T-joints on AA6061-T4 sheets, Materials and Design 51 (2013) 161– 174.

DOI: 10.1016/j.matdes.2013.04.013

Google Scholar

[12] D.R. Ni, D.L. Chen, et al, Influence of microstructural evolution on tensile properties of friction stir welded joint of rolled SiCp/AA2009-T351 sheet, Materials and Design 51 (2013) 199–205.

DOI: 10.1016/j.matdes.2013.04.027

Google Scholar

[13] H.J. Liu, J.C. Hou et al , Effect of welding speed on microstructure and mechanical properties of self-reacting friction stir welded 6061-T6 aluminum alloy, Materials and Design 50 (2013) 872–878.

DOI: 10.1016/j.matdes.2013.03.105

Google Scholar

[14] S. Kundu D. Roy et al, Microstructure and tensile strength of friction stir welded joints between interstitial free steel and commercially pure aluminium, Materials and Design 50 (2013) 370–375.

DOI: 10.1016/j.matdes.2013.02.017

Google Scholar
