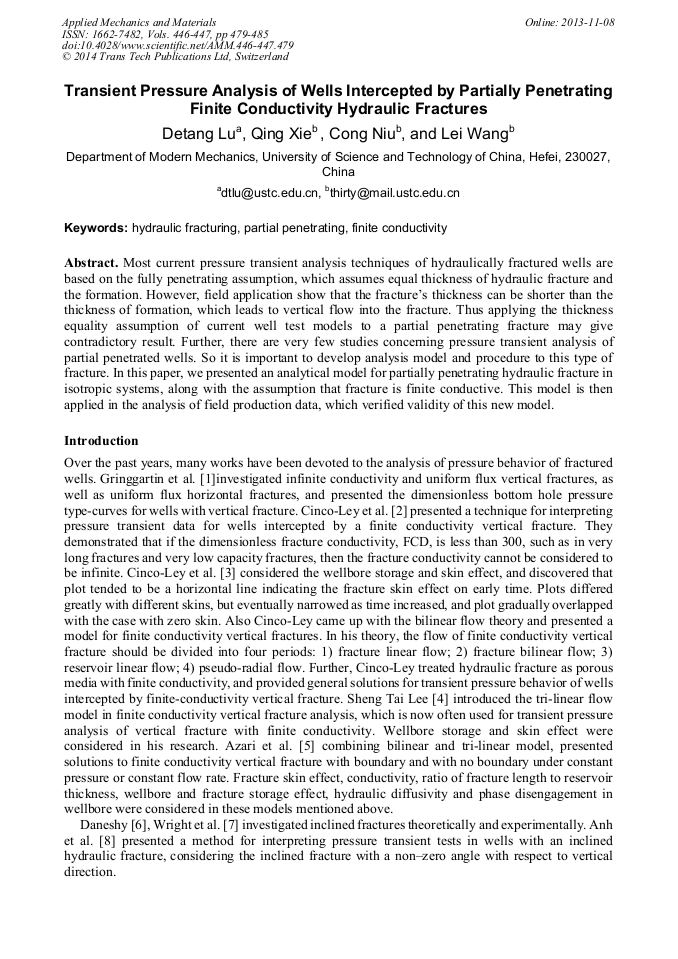

Transient Pressure Analysis of Wells Intercepted by Partially Penetrating Finite Conductivity Hydraulic Fractures

Abstract:

Most current pressure transient analysis techniques of hydraulically fractured wells are based on the fully penetrating assumption, which assumes equal thickness of hydraulic fracture and the formation. However, field application show that the fractures thickness can be shorter than the thickness of formation, which leads to vertical flow into the fracture. Thus applying the thickness equality assumption of current well test models to a partial penetrating fracture may give contradictory result. Further, there are very few studies concerning pressure transient analysis of partial penetrated wells. So it is important to develop analysis model and procedure to this type of fracture. In this paper, we presented an analytical model for partially penetrating hydraulic fracture in isotropic systems, along with the assumption that fracture is finite conductive. This model is then applied in the analysis of field production data, which verified validity of this new model.

• Periodical: Applied Mechanics and Materials (Volumes 446-447)
• Pages: 479-485
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.446-447.479
• Online since: November 2013
• Authors: De Tang Lu, Qing Xie, Cong Niu, Lei Wang
• Keywords: Finite Conductivity, Hydraulic Fracturing, Partial Penetrating

References

[1] A. C. Gringarten, R. Henry J., and R. Raghavan: Unsteady-State Pressure Distributions Created by a Well With a Single Infinite-Conductivity Vertical Fracture, SPE Journal, August 1974, P347-360.

DOI: 10.2118/4051-pa

[2] H. Cinco-Ley, F. Samaniego, and N. Dominguez: Transient Pressure Behavior for a Well With a Finite-Conductivity Vertical Fracture, SPE Journal, August 1978, P253-264.

DOI: 10.2118/6014-pa

[3] H. Cinco-Ley, and F. Samaniego: Transient Pressure Analysis for Fractured Wells, SPE Journal of Petroleum Technology, September 1981, P1749-1766.

DOI: 10.2118/7490-pa

[4] S. T. Lee, and J. R. Brockenbrough: A New Approximate Analytic Solution for Finite-Conductivity Vertical Fractures, SPE Formation Evaluation, February 1986, P75-88.

DOI: 10.2118/12013-pa

[5] M. Azari, W.O. Wooden, and L.E. Coble: Further Investigation on the Analytic Solutions for Finite-Conductivity Vertical Fractures, Middle East Oil Show, 1991, Bahrain.

DOI: 10.2118/21402-ms

[6] A. A. DANESHY: A Study of Inclined Hydraulic Fractures, SPE Journal, April 1973, P61-68.

[7] C. A. Wright, and R. A. Conant: Hydraulic Fracture Reorientation in Primary and Secondary Recovery from Low-Permeability Reservoirs, SPE Annual Technical Conference and Exhibition, 1995, Dallas, Texas.

DOI: 10.2118/30484-ms

[8] A. V. Dinh, and D. Tiab: Transient-Pressure Analysis of a Well With an Inclined Hydraulic Fracture Using Type Curve Matching, SPE Production and Operations Symposium, Society of Petroleum Engineers, Oklahoma City, Oklahoma, (2009).

DOI: 10.2118/120540-ms

[9] G. Guo, and R. D. Evans: Pressure-Transient Behavior and Inflow Performance of Horizontal Wells Intersecting Discrete Fractures, SPE Annual Technical Conference and Exhibition, Society of Petroleum Engineers, Inc., Houston, Texas, (1993).

DOI: 10.2118/26446-ms

[10] R. N. Horne, and K. O. Temeng: Relative Productivities and Pressure Transient Modeling of Horizontal Wells with Multiple Fractures, Middle East Oil Show, Society of Petroleum Engineers, Inc., Bahrain, (1995).

DOI: 10.2118/29891-ms

[11] E. Ozkan, M. L. Brown, R. S. Raghavan, and H. Kazemi: Comparison of Fractured Horizontal-Well Performance in Conventional and Unconventional Reservoirs, SPE Western Regional Meeting, Society of Petroleum Engineers, San Jose, California, (2009).

DOI: 10.2118/121290-ms
