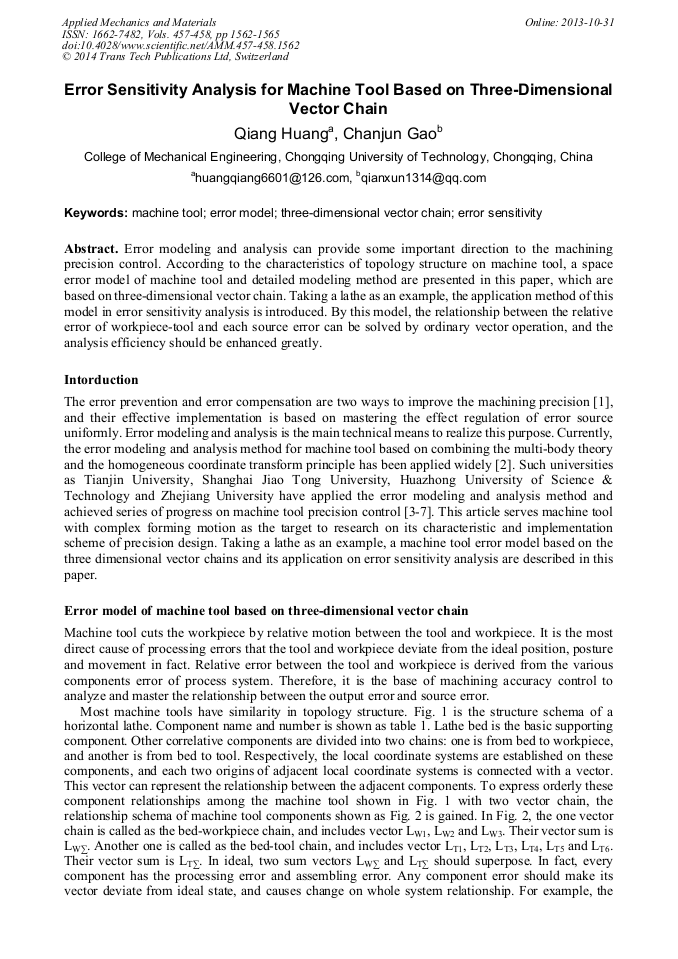

Error Sensitivity Analysis for Machine Tool Based on Three-Dimensional Vector Chain

Abstract:

Error modeling and analysis can provide some important direction to the machining precision control. According to the characteristics of topology structure on machine tool, a space error model of machine tool and detailed modeling method are presented in this paper, which are based on three-dimensional vector chain. Taking a lathe as an example, the application method of this model in error sensitivity analysis is introduced. By this model, the relationship between the relative error of workpiece-tool and each source error can be solved by ordinary vector operation, and the analysis efficiency should be enhanced greatly.
