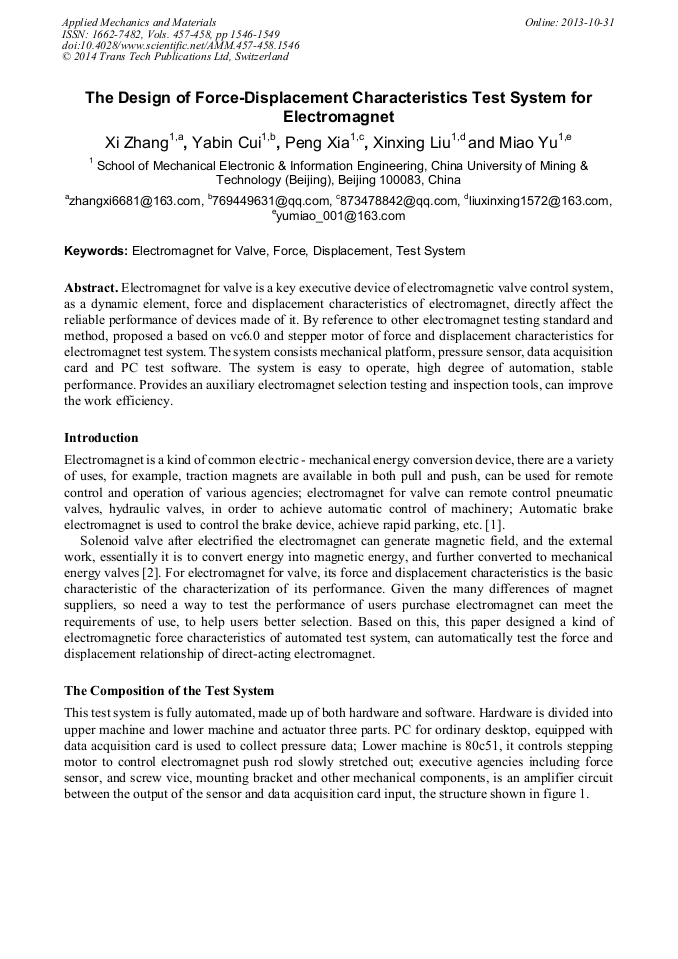

The Design of Force-Displacement Characteristics Test System for Electromagnet

Abstract:

Electromagnet for valve is a key executive device of electromagnetic valve control system, as a dynamic element, force and displacement characteristics of electromagnet, directly affect the reliable performance of devices made of it. By reference to other electromagnet testing standard and method, proposed a based on vc6.0 and stepper motor of force and displacement characteristics for electromagnet test system. The system consists mechanical platform, pressure sensor, data acquisition card and PC test software. The system is easy to operate, high degree of automation, stable performance. Provides an auxiliary electromagnet selection testing and inspection tools, can improve the work efficiency.
