Experimental Research on a Novel Design of Variable Area Caudal Fin

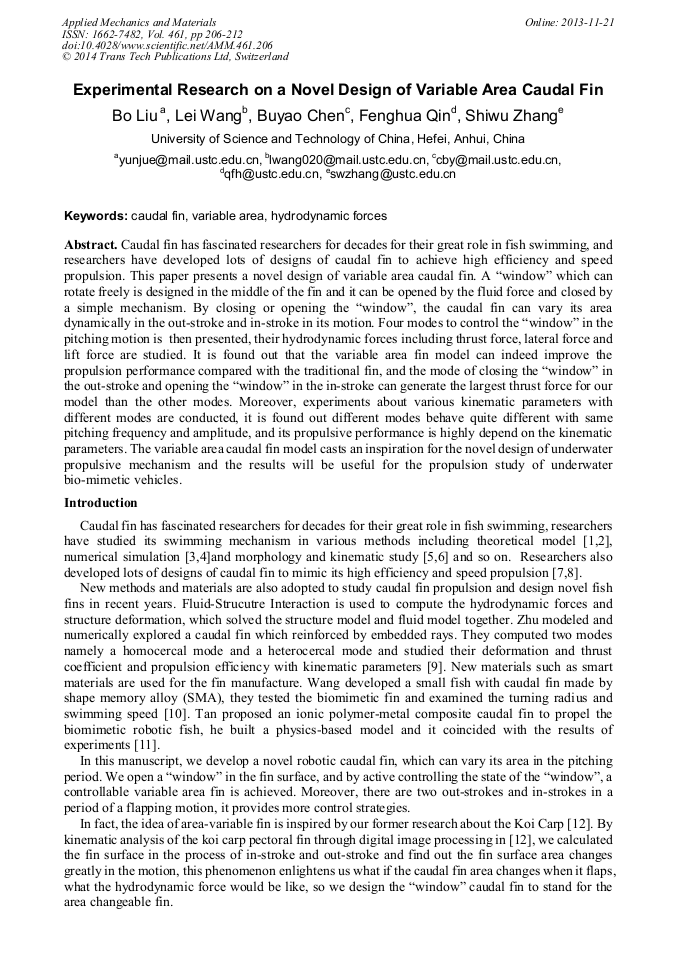

Article Preview

Abstract:

Caudal fin has fascinated researchers for decades for their great role in fish swimming, and researchers have developed lots of designs of caudal fin to achieve high efficiency and speed propulsion. This paper presents a novel design of variable area caudal fin. A “window” which can rotate freely is designed in the middle of the fin and it can be opened by the fluid force and closed by a simple mechanism. By closing or opening the “window”, the caudal fin can vary its area dynamically in the out-stroke and in-stroke in its motion. Four modes to control the “window” in the pitching motion is then presented, their hydrodynamic forces including thrust force, lateral force and lift force are studied. It is found out that the variable area fin model can indeed improve the propulsion performance compared with the traditional fin, and the mode of closing the “window” in the out-stroke and opening the “window” in the in-stroke can generate the largest thrust force for our model than the other modes. Moreover, experiments about various kinematic parameters with different modes are conducted, it is found out different modes behave quite different with same pitching frequency and amplitude, and its propulsive performance is highly depend on the kinematic parameters. The variable area caudal fin model casts an inspiration for the novel design of underwater propulsive mechanism and the results will be useful for the propulsion study of underwater bio-mimetic vehicles.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

206-212

Citation:

Online since:

November 2013

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] J. Lighthill, Hydromechanics of aquatic animal propulsion, Journal of Fluid Mech., 1(1969) 413-446.

DOI: 10.1146/annurev.fl.01.010169.002213

Google Scholar

[2] J. Lighthill, Large-amplitude elongated-body theory of fish locomotion, Proc. Roy. Soc. Lond. B. 17 (1971) 125-138.

DOI: 10.1098/rspb.1971.0085

Google Scholar

[3] W. C. Sandberg, R. Ramamurti, Unsteady flow computations for socillating fins: a status report. 11th International Symposium on UUs technology, Autonomous Undersea Systems Institute, 1999, 182-194.

Google Scholar

[4] P. Liu, N. Bose, Propulsive performance of three naturally occurring oscillating propeller planforms, Ocean Engineering, 20(2000) 57-75.

DOI: 10.1016/0029-8018(93)90046-k

Google Scholar

[5] G. V. Lauder, Function of caudal fin during locomotion in fishes: kinematics, flow visualization, and evalutional patterns, Am. Zool , 40(2000) 101-122.

DOI: 10.1093/icb/40.1.101

Google Scholar

[6] J. C. Nauen, G. V. Lauder. Hydrodynamics of Caudal fin Locomotion by Chub Mackerel, Scomber japonicus (Scombridae), J. Exp. Biol. 205(2002) 1709-1724.

DOI: 10.1242/jeb.205.12.1709

Google Scholar

[7] J. M. Kumph, M. S. Triantafyllou, D, Nugent, M. D. Santos, Fast-starting and maneuvering vehicles: robopike and robomuskie, 11th International symposium on UUs technology, Automomous Undersea System Institute, (1999) 439-445.

Google Scholar

[8] R. Mason, W. B. Joel, Experiments in carangiform robotic fish locomotio, IEEE Int. Conf. Robot. Autom. (2000) 428-435.

Google Scholar

[9] Q. Zhu, K. Shoele, Propulsion performance of a skeleton-strengthened fin. J. Exp. Biol., 211(2008) 2087-2100.

DOI: 10.1242/jeb.016279

Google Scholar

[10] Z. Wang, G. Hang, J. Li, Y. Wang, K. Xiao, 2008, A micro-robot fish with embedded SMA wire actuated flexible biomimetic fin, Sensors and Actuators A: Physical, 144(2008) 354-360.

DOI: 10.1016/j.sna.2008.02.013

Google Scholar

[11] Z. Chen, S. Shatara, X. Tan, Modeling of biomimetic robotic fish propelled by an ionic polymer-metal composite caudal fin, Mechatronics, IEEE/ASME Transactions on, 15(2010) 448-459.

DOI: 10.1109/tmech.2009.2027812

Google Scholar

[12] L. Wang, M. Xu, B. Liu, K. H. Low, J. Yang, S. Zhang, A three-dimensional kinematics analysis of a koi carp pectoral fin by digital image processing, J. Bionic Eng, 10(2013) 210-221.

DOI: 10.1016/s1672-6529(13)60217-6

Google Scholar
