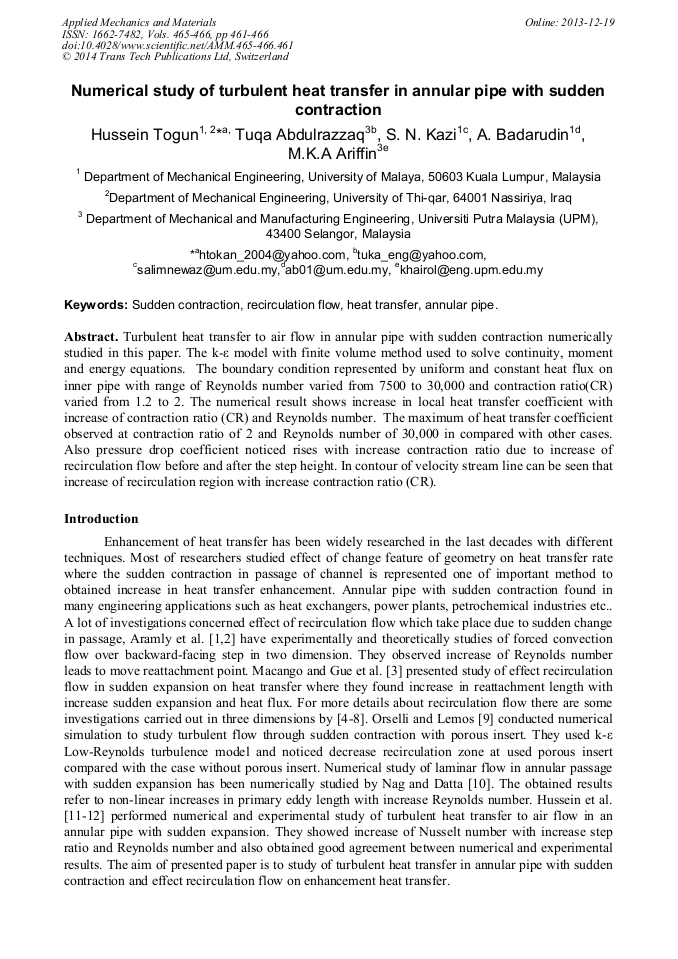

Numerical Study of Turbulent Heat Transfer in Annular Pipe with Sudden Contraction

Abstract:

Turbulent heat transfer to air flow in annular pipe with sudden contraction numerically studied in this paper. The k-ε model with finite volume method used to solve continuity, moment and energy equations. The boundary condition represented by uniform and constant heat flux on inner pipe with range of Reynolds number varied from 7500 to 30,000 and contraction ratio (CR) varied from 1.2 to 2. The numerical result shows increase in local heat transfer coefficient with increase of contraction ratio (CR) and Reynolds number. The maximum of heat transfer coefficient observed at contraction ratio of 2 and Reynolds number of 30,000 in compared with other cases. Also pressure drop coefficient noticed rises with increase contraction ratio due to increase of recirculation flow before and after the step height. In contour of velocity stream line can be seen that increase of recirculation region with increase contraction ratio (CR).

• Periodical: Applied Mechanics and Materials (Volumes 465-466)
• Pages: 461-466
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.465-466.461
• Online since: December 2013
• Authors: Hussein Togun*, Tuqa Abdulrazzaq, S.N. Kazi, A. Badarudin, Mohd Khairol Anuar Ariffin
• Keywords: Annular Pipe, Heat Transfer, Recirculation Flow, Sudden Contraction

References

[1] B.F. Armaly, F. Durst, J.C.F. Pereira, B. Schonung, Experimental and theoretical investigation of backward-facing step flow, J. Fluid Mech. 127 (1983) 361-367.

DOI: 10.1017/s0022112083002839

[2] B.F. Armaly, F. Durst, V. Kottke, Momentum heat and mass transfer in backward-facing step flows. Numerical heat transfer and fluid flow, Mc Graw-Hill, New York, (1980).

[3] Gue, Z. Y., Li, D. Y, and Liang, X. G., Thermal effect on the recirculation zone in sudden expansion gas flows. Int. J. Heat and Mass Transfer, , 39 (13) (1996) 2619-2624.

DOI: 10.1016/0017-9310(95)00371-1

[4] V. De Brederode, P. Bradshaw, Three-Dimensional Flow in Normally Two- Dimensional Separation Bubbles I, Flow Behind A Rearward-Facing Step, I. C Aero Report #72-9, (1972).

DOI: 10.21236/ad0753358

[5] J. Hertzberg, C.M. Ho, Vortex dynamics in a rectangular sudden expansion, AIAA J. 30 (10) (1992) 2420–2425.

DOI: 10.2514/3.11242

[6] T.P. Chiang, T.W.H. Sheu, Vortical flow over a 3D backward-facing step, Numer. Heat Transfer, Part A 31 (2) (1997) 167–192.

DOI: 10.1080/10407789708914031

[7] B.F. Armaly, A. Li, J.H. Nie, Measurements in three-dimensional laminar separated flow, Int. J. Heat Mass Transfer 46 (2003) 3573–3582.

DOI: 10.1016/s0017-9310(03)00153-4

[8] J.H. Nie, B.F. Armaly, Reverse flow regions in three-dimensional backward-facing step flow, Int. J. Heat Mass Transfer 47 (2004) 4713–4720.

DOI: 10.1016/j.ijheatmasstransfer.2004.05.027

[9] R.M. Orselli and M.J.S. De Lemos, Sudden contraction in a turbulent with a porous insert, Latin American Journal of Solids and Structures 2 (2005) 269-290.

[10] D Nag and A Datta, On the eddy characteristics of laminar axisymmetric flows through confined annular geometries with inward expansion, Proc. IMechE vol. 21 Part C: J Mechanical Engineering Science (2007).

DOI: 10.1243/0954406jmes428

[11] Hussein Togun, Y.K. Salman, H.S. Sultan Aljibori, S.N. Kazi, An experimental study of heat transfer to turbulent separation fluid flow in an annular passage, International Journal of Heat and Mass Transfer 54 (4) (2011) 766–773.

DOI: 10.1016/j.ijheatmasstransfer.2010.10.031

[12] C.S. Oon, Hussein Togun, S.N. Kazi, A. Badarudin, M.N.M. Zubir, E. Sadeghinezhad, Numerical simulation of heat transfer to separation air flow in an annular pipe, International Communications in Heat and Mass Transfer 39 (2012) 1176–1180.

DOI: 10.1016/j.icheatmasstransfer.2012.06.019
