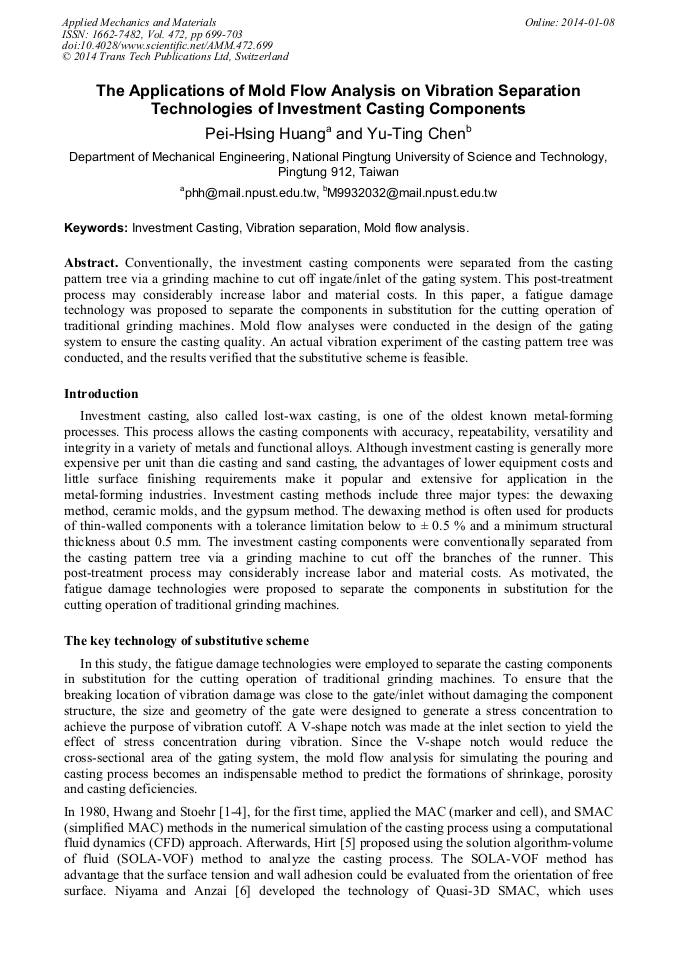

The Applications of Mold Flow Analysis on Vibration Separation Technologies of Investment Casting Components

Abstract:

Conventionally, the investment casting components were separated from the casting pattern tree via a grinding machine to cut off ingate/inlet of the gating system. This post-treatment process may considerably increase labor and material costs. In this paper, a fatigue damage technology was proposed to separate the components in substitution for the cutting operation of traditional grinding machines. Mold flow analyses were conducted in the design of the gating system to ensure the casting quality. An actual vibration experiment of the casting pattern tree was conducted, and the results verified that the substitutive scheme is feasible.

• Periodical: Applied Mechanics and Materials (Volume 472)
• Pages: 699-703
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.472.699
• Online since: January 2014
• Authors: Pei Hsing Huang, Yu Ting Chen
• Keywords: Investment Casting, Mold Flow Analysis, Vibration Separation

References

[1] W.S. Hwang, Computer Simulation for the Fluid Flow in Casting System, MSc Thesis, Department of Metallurgical and Materials Engineering, University of Pittsburgh, (1981).

[2] R.A. Stoehr and W.S. Hwang, in: Modeling the Flow of Molten Metal Having a Free Surface During Entry into Molds, Proc. 2nd Conf. on Modeling of Casting and Welding Processes (1983) p.47.

[3] W.S. Hwang and R.A. Stoehr: J. Met. Vol. 15 (1983), p.22.

[4] W.S. Hwang and R.A. Stoehr, in: Computer Application in Metal Casting–Modeling of Fluid Flow, Vol. 15 of Metals Handbook, 9th ed., Chapter 11, Section B, p.867 (1988).

[5] C.W. Hirt, in: Flow Analysis for Non-expects, Proc. 2nd Conf. on Modeling of Casting and Welding Processes (1983) p.67.

[6] K. Anzai and E. Niyama, in: Quasi Three-Dimensional Mold Filling Simulation System for Prediction of Defects in Die Castings, Conf. Proc. on the Modeling of Casting, Welding and Advanced Solidification Processes IV (1988) p.471.

[7] H. Nomura, K. Terashima and K. Keishima: Imono Vol. 63 (1991), p.425.

[8] B. Minaie, K.A. Stelson and V.R. Voller: J. Eng. Technol. (Trans. ASME) Vol. 113(3) (1991), p.296.

[9] C. Hartman, V. Kokot and R. Seefeldt, in: Numerical optimization of casting processes-leveraging coupled process and multi-object optimization to the manufacturing, International Congress on FEM Technology, (2003).

[10] H. Joseph, P. Clerry, V. Alguine and T. Nguyen, in: ORC for Alloy and Solidification Technology (CAST), p.423. (1999).

[11] M. Bellet, F. Decultieux, M. Menai, F. Bay, C. Levaillant, J.L. Chenot, P. Schmidt and I.L. Svensso: Metall. Mater. Trans. B. Vol. 29B (1996), p.81.

[12] J. -M. Drezet and M. Rappaz: Metall. Mater. Trans. A. Vol. 27A, (1996), p.3214.
