The Numerical Simulation of Workpiece Clamping

Jarmila Oravcová

doi:10.4028/www.scientific.net/AMM.474.218

Paper Titles

Finite Element Simulation of Cutting Forces in Orthogonal Machining of Titanium Alloy Ti-6Al-4V
p.192

Investigation of Stress State and Contact Pressures in Contact Area of Journal Bearing by Numerical Simulation
p.200

Possibility of the Process Monitoring during Assembly and Disassembly Components
p.206

Adaptive Control System to Assist the Surface Workpiece Quality when Drilling
p.212

The Numerical Simulation of Workpiece Clamping
p.218

Investigation of the Surface Quality when End–Ball–Milling Form Surfaces with Sequence of the Radii Ratio
p.224

The Influence of Technological Loading on Stable Operating State of Asynchronous Motor
p.230

Trends in Cutting Materials and Tools for Hard Machining
p.236

Component Base for CNC Processing Center EMCO Concept TURN 105
p.242

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 474The Numerical Simulation of Workpiece Clamping

The Numerical Simulation of Workpiece Clamping

Abstract:

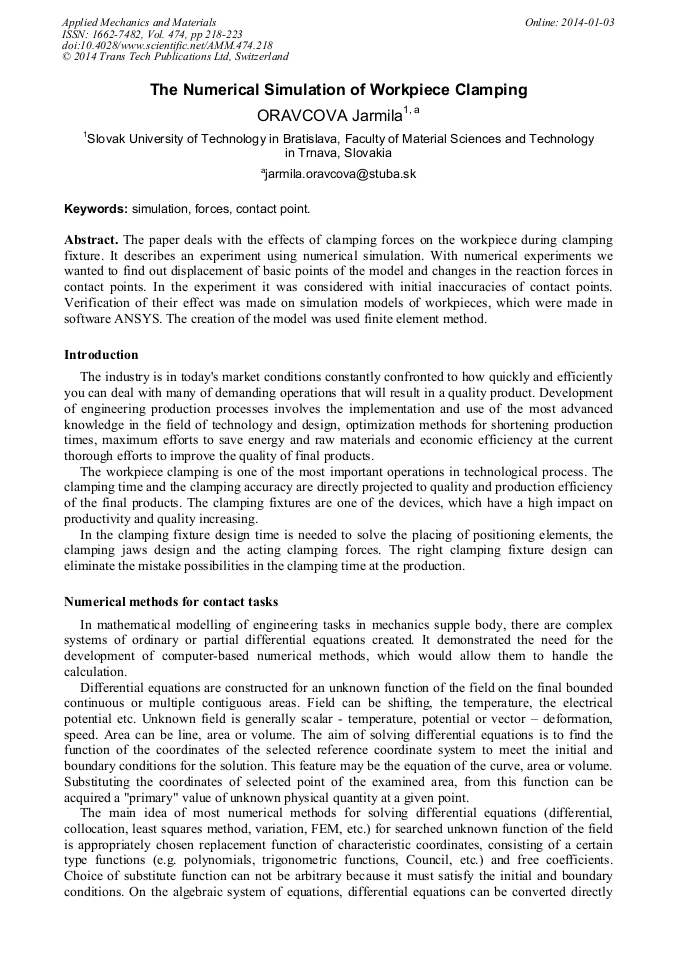

The paper deals with the effects of clamping forces on the workpiece during clamping fixture. It describes an experiment using numerical simulation. With numerical experiments we wanted to find out displacement of basic points of the model and changes in the reaction forces in contact points. In the experiment it was considered with initial inaccuracies of contact points. Verification of their effect was made on simulation models of workpieces, which were made in software ANSYS. The creation of the model was used finite element method.
