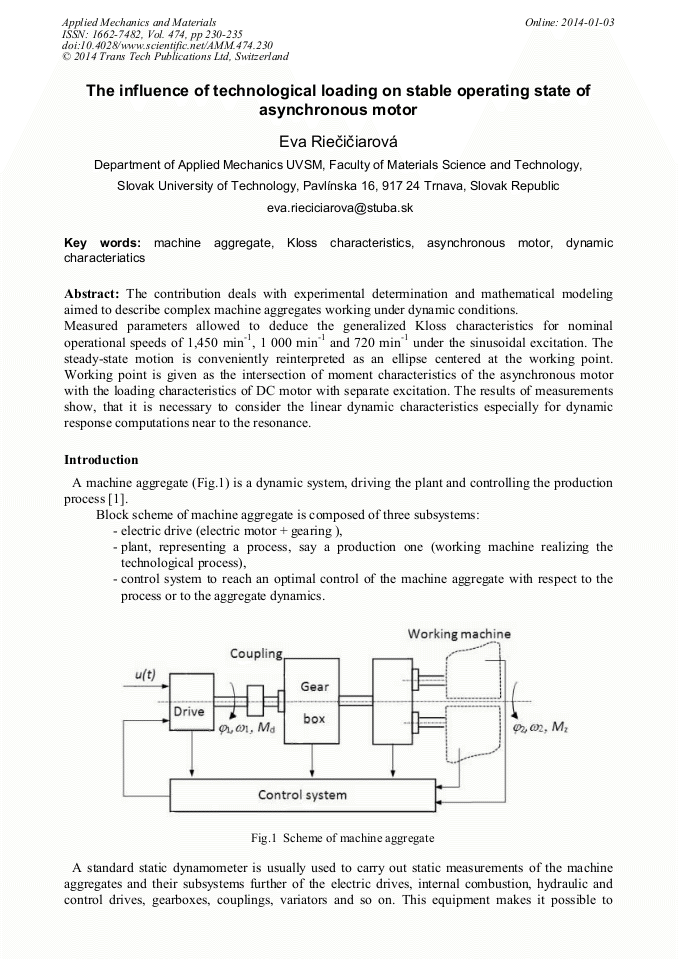

The Influence of Technological Loading on Stable Operating State of Asynchronous Motor

Abstract:

The contribution deals with experimental determination and mathematical modeling aimed to describe complex machine aggregates working under dynamic conditions. Measured parameters allowed to deduce the generalized Kloss characteristics for nominal operational speeds of 1,450 min^-1, 1 000 min^-1 and 720 min^-1 under the sinusoidal excitation. The steady-state motion is conveniently reinterpreted as an ellipse centered at the working point. Working point is given as the intersection of moment characteristics of the asynchronous motor with the loading characteristics of DC motor with separate excitation. The results of measurements show, that it is necessary to consider the linear dynamic characteristics especially for dynamic response computations near to the resonance.

• Periodical: Applied Mechanics and Materials (Volume 474)
• Pages: 230-235
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.474.230
• Online since: January 2014
• Authors: Eva Riečičiarová
• Keywords: Asynchronous Motor, Dynamic Characteristic, Kloss Characteristics, Machine Aggregate

References

[1] J. Mudrik, M. Naď, Principles of mechatronic modelling of machine aggregates. In Proceedings of International Conference Theory and Practice of Gear Drives and Transmissions, Iževsk, Russia, 2008, 27-32.

[2] J. Mudrik, N. Lipták, M. Naď, The effect of the speed torque characteristics upon the steady-state motion of the machine aggregate. In Proceedings of the X. International Conference on the Theory of Machines and Mechanisms, Liberec, 2008, 417-422.

[3] Naď, M. Structural dynamic modification of vibrating systems. Applied and Computational Mechanics, Vol. 1, No. 1, 2007, ISSN 1802-680X, 203 – 214.

[4] J. Mudrik, R. Ďuriš, Transient phenomena of electric drive with load arising during a technological process. In: AT&P Journal Plus. ISSN 1336-5010, 1/2007, 169-172.

[5] J. Mudrik, M. Naď, Mechatronical approach to machine dynamics. In Proceedings of 10th International Symposium on Mechatronics. Alexander Dubček University of Trenčín, Trenčianske Teplice, 2007, 33-38.
