Verification of Shaped Surface Manufacturability and Surface Quality of Stamping Die’s Punch

Abstract:

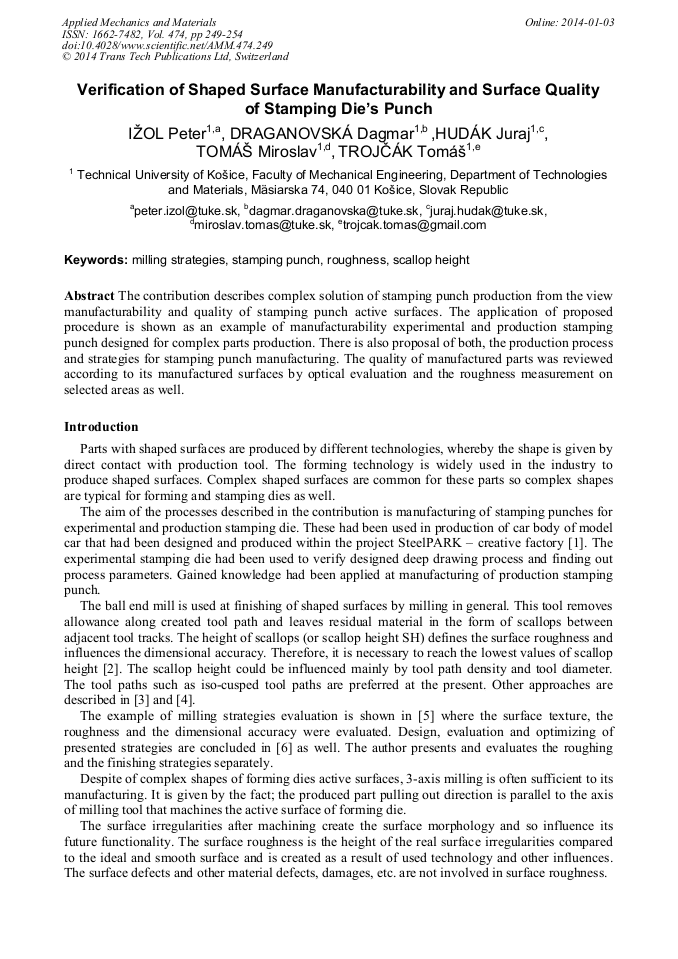

The contribution describes complex solution of stamping punch production from the view manufacturability and quality of stamping punch active surfaces. The application of proposed procedure is shown as an example of manufacturability experimental and production stamping punch designed for complex parts production. There is also proposal of both, the production process and strategies for stamping punch manufacturing. The quality of manufactured parts was reviewed according to its manufactured surfaces by optical evaluation and the roughness measurement on selected areas as well.
