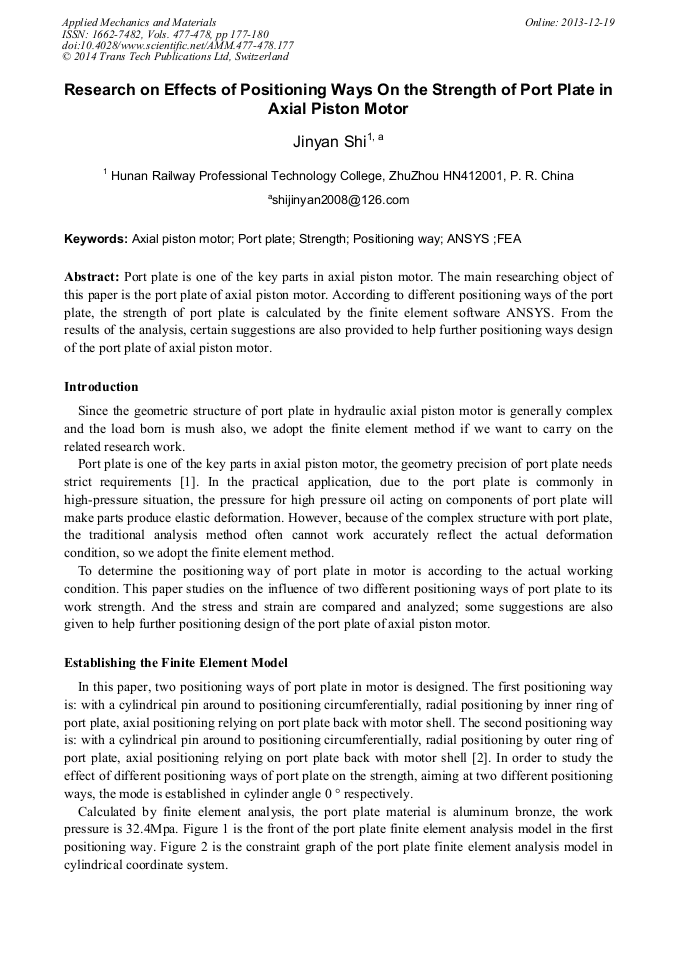

Research on Effects of Positioning Ways on the Strength of Port Plate in Axial Piston Motor

Abstract:

Port plate is one of the key parts in axial piston motor. The main researching object of this paper is the port plate of axial piston motor. According to different positioning ways of the port plate, the strength of port plate is calculated by the finite element software ANSYS. From the results of the analysis, certain suggestions are also provided to help further positioning ways design of the port plate of axial piston motor.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 477-478)

Pages:

177-180

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.477-478.177

Citation:

Cite this paper

Online since:

December 2013

Authors:

Jin Yan Shi

Keywords:

ANSYS, Axial Piston Motor, Finite Element Analysis (FEA), Port Plate, Positioning Way, Strength

Export:

RIS, BibTeX
