Dynamic Characteristics Analysis of the Magnetic Levitation Cylindrical Linear Motion Guide

Abstract:

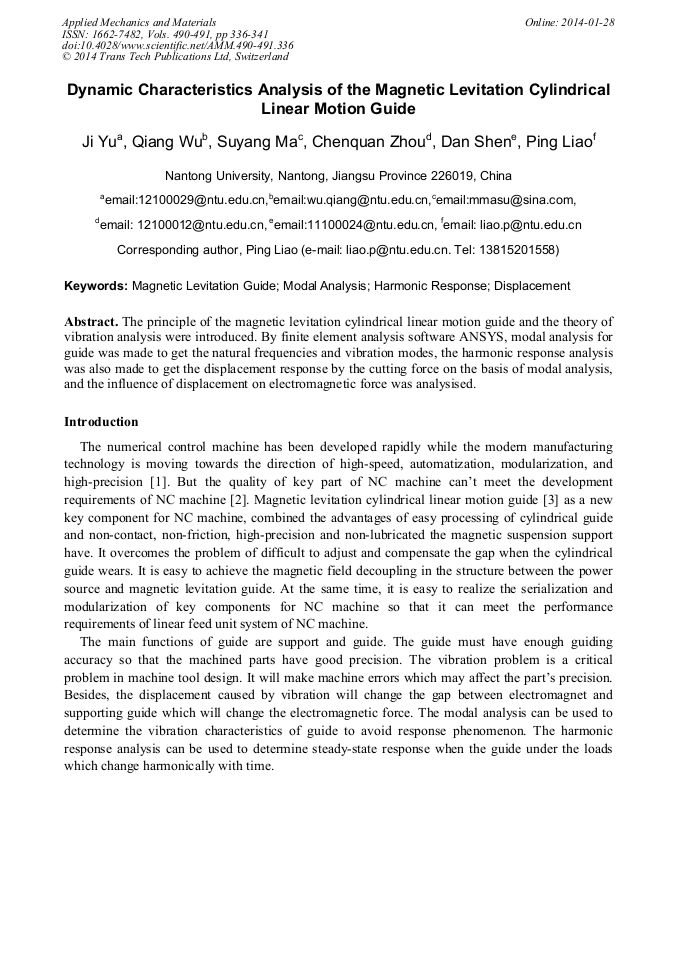

The principle of the magnetic levitation cylindrical linear motion guide and the theory of vibration analysis were introduced. By finite element analysis software ANSYS, modal analysis for guide was made to get the natural frequencies and vibration modes, the harmonic response analysis was also made to get the displacement response by the cutting force on the basis of modal analysis, and the influence of displacement on electromagnetic force was analysised.
