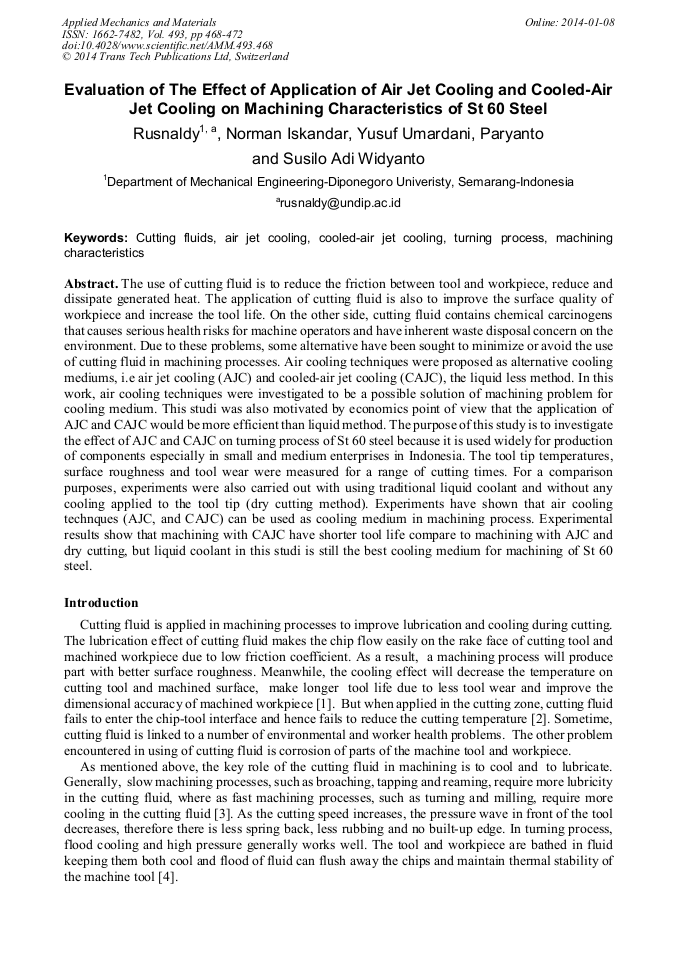

Evaluation of the Effect of Application of Air Jet Cooling and Cooled-Air Jet Cooling on Machining Characteristics of St 60 Steel

Abstract:

The use of cutting fluid is to reduce the friction between tool and workpiece, reduce and dissipate generated heat. The application of cutting fluid is also to improve the surface quality of workpiece and increase the tool life. On the other side, cutting fluid contains chemical carcinogens that causes serious health risks for machine operators and have inherent waste disposal concern on the environment. Due to these problems, some alternative have been sought to minimize or avoid the use of cutting fluid in machining processes. Air cooling techniques were proposed as alternative cooling mediums, i.e air jet cooling (AJC) and cooled-air jet cooling (CAJC), the liquid less method. In this work, air cooling techniques were investigated to be a possible solution of machining problem for cooling medium. This studi was also motivated by economics point of view that the application of AJC and CAJC would be more efficient than liquid method. The purpose of this study is to investigate the effect of AJC and CAJC on turning process of St 60 steel because it is used widely for production of components especially in small and medium enterprises in Indonesia. The tool tip temperatures, surface roughness and tool wear were measured for a range of cutting times. For a comparison purposes, experiments were also carried out with using traditional liquid coolant and without any cooling applied to the tool tip (dry cutting method). Experiments have shown that air cooling technques (AJC, and CAJC) can be used as cooling medium in machining process. Experimental results show that machining with CAJC have shorter tool life compare to machining with AJC and dry cutting, but liquid coolant in this studi is still the best cooling medium for machining of St 60 steel..

• Periodical: Applied Mechanics and Materials (Volume 493)
• Pages: 468-472
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.493.468
• Online since: January 2014
• Authors: Rusnaldy Rusnaldy, Norman Iskandar, Yusuf Umardani, Paryanto Paryanto, Susilo Adi Widyanto
• Keywords: Air Jet Cooling, Cooled-Air Jet Cooling, Cutting Fluids, Machining Characteristics, Turning Process

References

[1] O. Cakir, A. Yardimeden, T. Ozben, E. Kilickap, Selection of cutting fluids in machining processes, Journal of Achievements in Materials and Manufacturing Engineering Vol 25 issue 2, (2007) 99-102.

[2] B.D. Jerold, M.P. Kumar, Experimental investigation of turning AISI 1045 steel using cryogenic carbon dioxide as the cutting fluid, Journal of Manufacturing Processes 13 (2011), 113-119.

DOI: 10.1016/j.jmapro.2011.02.001

[3] J.S. Mc Coy, Introduction: Tracing the historical development of metalworking fluids, in J.P. Byers (Ed. ), Metalworking Fluids, Taylor & Francis, 2006, pp.1-18.

DOI: 10.1201/9781420017731-5

[4] S.C. Salmon, Metal Cutting Process, in J.P. Byers (Ed. ), Metalworking fluids, Taylor & Francis, 2006, pp.47-74.

[5] Y. Su, N. He, L. Li, A. Iqbal, M.H. Xiao, S. Xu, B.G. Qiu, Refrigerated cooling air cutting of difficult-to-cut materials, International Journal of Machine Tool & Manufacture Vol. 47 (2007), 927-933.

DOI: 10.1016/j.ijmachtools.2006.07.005

[6] Rusnaldy, Paryanto, T.S. Utomo, Y. Umardani, Analysis of air jet cooling effect on the turning process of St 40 steel, Proceeding of the 12th International Conference on Quality in Research, Bali-Indonesia (2011), 962-967.

DOI: 10.4028/www.scientific.net/amm.493.468

[7] T. Obikawa, M. Yamaguchi, K. Funai, Y. Kamata, S. Yamada, Air jet assisted machining of nickel-base superalloy, International Journal of Machine Tools & Manufacture 61 (2012), 20-26.

DOI: 10.1016/j.ijmachtools.2012.05.005

[8] T.J. Ko, H.S. Kim, B.G. Chung, Air-oil cooling for turning of hardened material, International Journal of Advanced Manufacturing Technology Vol. 15 (1999), 470-477.

DOI: 10.1007/s001700050091

[9] J. Liu, Y.K. Chou, On temperatures and tool wear in machining hypereutectic Al-Si alloys with vortex tube cooling, International Journal of Machine Tools & Manufacture 47 (2007), 635-645.

DOI: 10.1016/j.ijmachtools.2006.04.008

[10] B. Boswell, T.T. Chandratilleke, Air-cooling used for metal cutting, Am. J. Applied Sci., Vol. 6 No. 2 (2009), 251-262.

[11] M. Selek, S. Tasdemir, K. Dincer, S. Baskaya, Experimental examination of the coolong performance of Ranque-Hilsch vortex tube on the cutting tool nose point of the turret lathe through infrared thermography method, International Journal of Refrigeration 34 (2011).

DOI: 10.1016/j.ijrefrig.2010.11.008

[12] N.R. Dhar, S. Islam, M. Kamaruzzaman, Effect of minimum quantity lubrication (MQL) on tool wear, surface roughness and dimensional deviation in turning AISI 4340 steel, G.U. Journal of Science 20 (2), (2007), 23-32.

DOI: 10.1016/j.jmatprotec.2005.09.022
