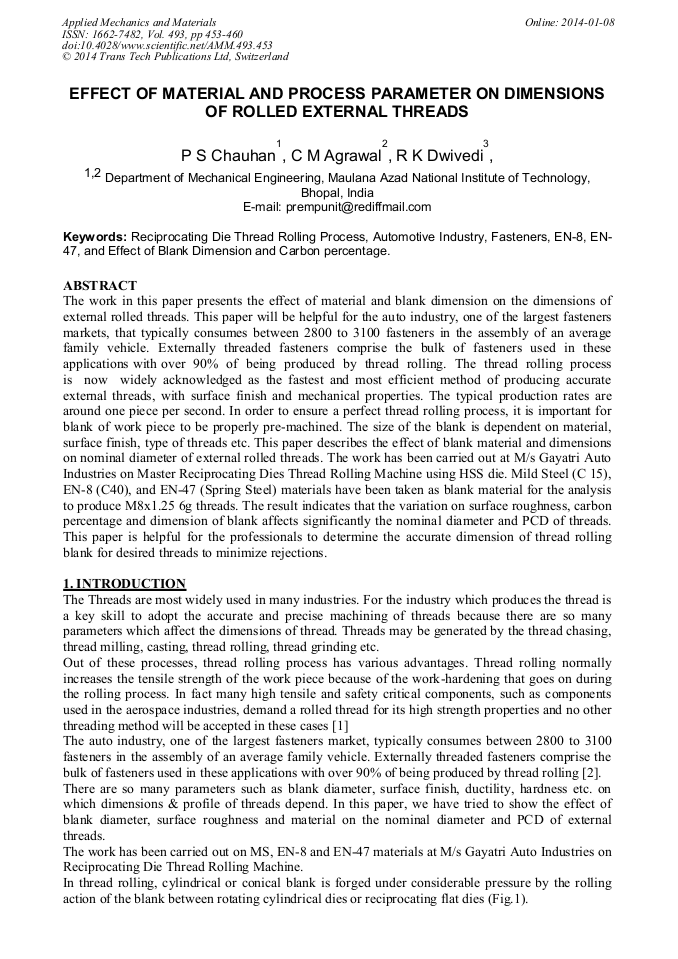

Effect of Material and Process Parameter on Dimensions of Rolled External Threads

Abstract:

The work in this paper presents the effect of material and blank dimension on the dimensions ofexternal rolled threads. This paper will be helpful for the auto industry, one of the largest fastenersmarkets, that typically consumes between 2800 to 3100 fasteners in the assembly of an average familyvehicle. Externally threaded fasteners comprise the bulk of fasteners used in these applications withover 90% of being produced by thread rolling. The thread rolling process is now widelyacknowledged as the fastest and most efficient method of producing accurate external threads, withsurface finish and mechanical properties. The typical production rates are around one piece persecond. In order to ensure a perfect thread rolling process, it is important for blank of work piece to beproperly pre-machined. The size of the blank is dependent on material, surface finish, type of threadsetc. This paper describes the effect of blank material and dimensions on nominal diameter of externalrolled threads. The work has been carried out at M/s Gayatri Auto Industries on Master ReciprocatingDies Thread Rolling Machine using HSS die. Mild Steel (C 15), EN-8 (C40), and EN-47 (SpringSteel) materials have been taken as blank material for the analysis to produce M8x1.25 6g threads.The result indicates that the variation on surface roughness, carbon percentage and dimension of blankaffects significantly the nominal diameter and PCD of threads. This paper is helpful for theprofessionals to determine the accurate dimension of thread rolling blank for desired threads tominimize rejections.

• Periodical: Applied Mechanics and Materials (Volume 493)
• Pages: 453-460
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.493.453
• Online since: January 2014
• Authors: P.S. Chauhan, C.M. Agrawal, R.K. Dwivedi
• Keywords: Automotive Industry, Carbon Percentage, Effect of Blank Dimension, EN-47, EN-8, Fastener, Reciprocating Die Thread Rolling Process

References

[1] Fennell, C; Shivpuri, R; Blodgett, O.W; Kalpakjian, S; Miller, D. K; Sadegh' A. M; Perkins' R.W; Osborn' C; Manufacturing Processes, McGraw-Hill, 13.16.

[2] .] Ostwald, P; Munoz, J. (2002). Manufacturing Processes & Systems, John Wiley & Sons (ASIA) Pte Ltd, 516 -519.

[3] .] Taylor, M. (2005). Manufacturing Technology, University of Canterbury press.

[4] .] DeGarma, E; Black, Ronald A; Kohser; Klameeki, B. (2004). Material and Processes in Manufacturing, John Wiley & Sons (ASIA) Pte Ltd, 756-758.

[5] .] Kalpakjian, S; Schmid, S. (2012). Manufacturing Engineering & Technology, Pearson Education (Singapore) Pte Ltd, 352-353.

[6] .] Domblesky, J. P; Feng, F. (2002). A parametric study of process parameters in External Thread Rolling, Journal of Materials Processing Technology. 121:341-349.

DOI: 10.1016/s0924-0136(01)01223-7

[7] .] Chauhan, P.S; Arora, K.C. (2009). Experimental study of effect of surface roughness of blank diameter on external threads, Int. J. Manufacturing Technology and Management, Vol. 17, No. 4, 386–395.

DOI: 10.1504/ijmtm.2009.023955

[8] .] Saglam, H; Kus, R. (2011). Performance of Internal Thread Rolling Head and The Mechanical Properties of Rolled Thread, Proceedings of 6th International Advanced Technologies Symposium, 210-217.

[9] .] Gagg, C. R. (2001). Premature failure of thread rolling dies: material selection, hardness criteria and case studies, Engineering Failure Analysis, Volume 8, Issue 1, 87-105.

DOI: 10.1016/s1350-6307(99)00038-2

[10] .] HMT, Banglore, Production Technology, Tata McGraw- Hill Publishing Company Ltd (12).
