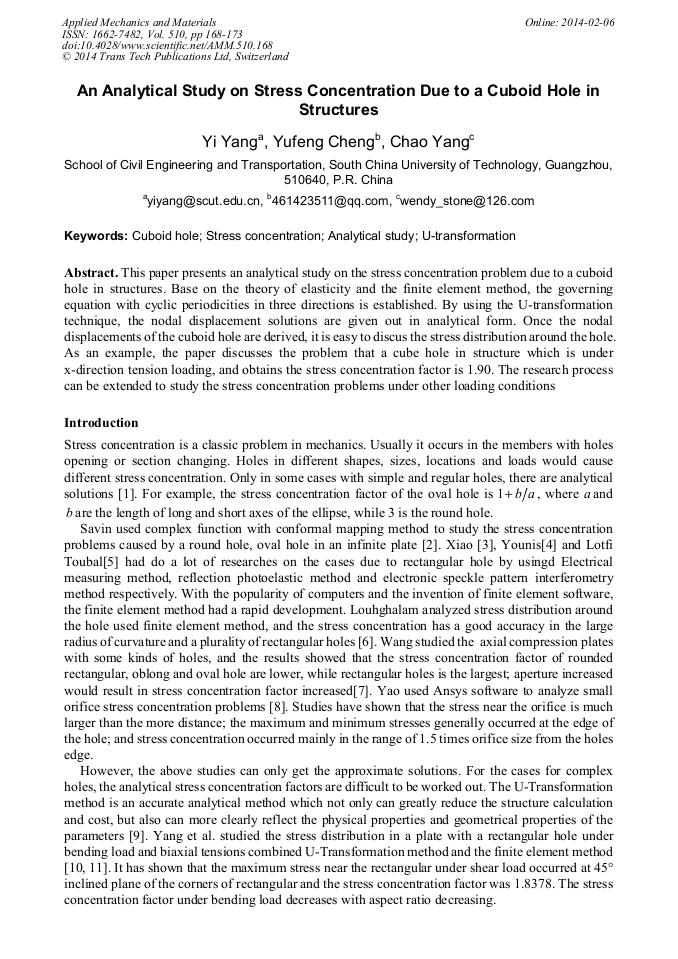

An Analytical Study on Stress Concentration due to a Cuboid Hole in Structures

Abstract:

This paper presents an analytical study on the stress concentration problem due to a cuboid hole in structures. Base on the theory of elasticity and the finite element method, the governing equation with cyclic periodicities in three directions is established. By using the U-transformation technique, the nodal displacement solutions are given out in analytical form. Once the nodal displacements of the cuboid hole are derived, it is easy to discus the stress distribution around the hole. As an example, the paper discusses the problem that a cube hole in structure which is under x-direction tension loading, and obtains the stress concentration factor is 1.90. The research process can be extended to study the stress concentration problems under other loading conditions

• Periodical: Applied Mechanics and Materials (Volume 510)
• Pages: 168-173
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.510.168
• Online since: February 2014
• Authors: Yi Yang, Yu Feng Cheng, Chao Yang
• Keywords: Analytical Study, Cuboid Hole, Stress Concentration, U-Transformation

References

[1] Young W C, Budynas R G. Roark's formulas for stress and strain (7-th Ed. ) [M]. New York: McGraw-Hill, (2002).

[2] Savin G N. Stress concentration around holes [M]. New York: Academic Press, (1951).

[3] Xiao shan, Wang Lihua. Experiment study on stress concentration of the plate with a circular hole [J]. Physical Experiment of College, 2009, 22(1): 18-22.

[4] Younis N T. Assembly stress for the reduction of stress concentration [J]. Mechanics Research Communications, 2006, 33(6): 837-845.

DOI: 10.1016/j.mechrescom.2006.03.007

[5] Lotfi Toubal, Moussa Karama, Bernard Lorrain. Stress concentration in a circular hole in composite plate [J]. Composite Structures, 2005, 68: 31-36.

DOI: 10.1016/j.compstruct.2004.02.016

[6] Louhghalam A, Igusa T, Park C, et al. Analysis of stress concentrations in plates with rectangular openings by a combined conformal mapping-Finite element approach [J]. International Journal of Solids and Structures, 2011, 48(13): 1991-(2004).

DOI: 10.1016/j.ijsolstr.2011.03.005

[7] Wang Jianlei, Chen Bin, Zhao Jincheng. Access hole shape selection and finite element analysis of perforated plates in steel pylons [J]. Engineering Design, 2012, 2(27): 24-29.

[8] Yao Ruiping, Wang Lei. ANSYS finite element analysis of stress concentration orifice [J]. Building Materials of Jiangxi, 2012, 3: 150-152.

[9] Chan H C, Cai C W, Cheung Y K. Exact analysis of structures with periodicity using U-transformation [M ]. Singapore: World Scientific, (1998).

[10] Y Yang, J K Liu, C W Cai. Analytical studies on stress concentration due to a rectangular small hole in thin plate under bending loads [J]. Structural Engineering and Mechanics, 2010, 36(6): 669-678.

DOI: 10.12989/sem.2010.36.6.669

[11] Yang Y, Liu J K, Cai C W. Analytical solutions to stress concentration problem in plates containing a rectangular hole under biaxial tensions [J]. Acta Mechanica Solida Sinica, 2008, 21(5): 411-419.

DOI: 10.1007/s10338-008-0850-1
