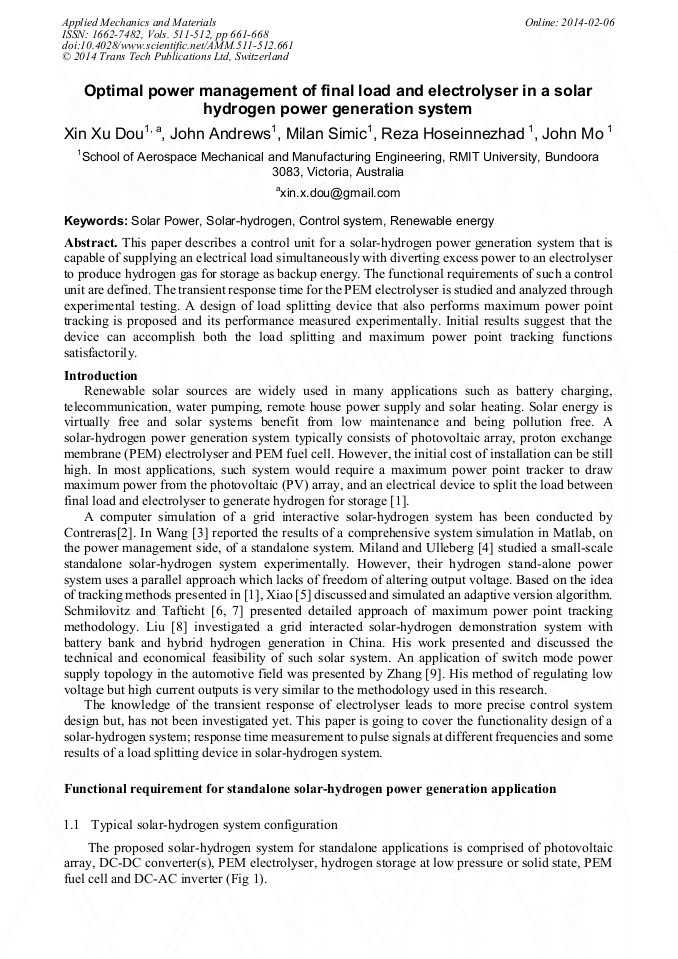

Optimal Power Management of Final Load and Electrolyser in a Solar Hydrogen Power Generation System

Abstract:

This paper describes a control unit for a solar-hydrogen power generation system that is capable of supplying an electrical load simultaneously with diverting excess power to an electrolyser to produce hydrogen gas for storage as backup energy. The functional requirements of such a control unit are defined. The transient response time for the PEM electrolyser is studied and analyzed through experimental testing. A design of load splitting device that also performs maximum power point tracking is proposed and its performance measured experimentally. Initial results suggest that the device can accomplish both the load splitting and maximum power point tracking functions satisfactorily.

• Periodical: Applied Mechanics and Materials (Volumes 511-512)
• Pages: 661-668
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.511-512.661
• Online since: February 2014
• Authors: Xin Xu Dou*, John Andrews, Milan Simic, Reza Hoseinnezhad, John Mo
• Keywords: Control System, Renewable Energy, Solar Power, Solar-Hydrogen

References

[1] Koutroulis, E., K. Kalaitzakis, and N.C. Voulgaris, Development of a microcontroller-based, photovoltaic maximum power point tracking control system. Power Electronics, IEEE Transactions on, 2001. 16(1): pp.46-54.

DOI: 10.1109/63.903988

[2] Contreras, A., R. Guirado, and T.N. Veziroglu, Design and simulation of the power control system of a plant for the generation of hydrogen via electrolysis, using photovoltaic solar energy. International Journal of Hydrogen Energy, 2007. 32(18): pp.4635-4640.

DOI: 10.1016/j.ijhydene.2007.07.006

[3] Caisheng, W. and M.H. Nehrir, Power Management of a Stand-Alone Wind/Photovoltaic/Fuel Cell Energy System. Energy Conversion, IEEE Transactions on, 2008. 23(3): pp.957-967.

DOI: 10.1109/tec.2007.914200

[4] Miland, H. and Ø. Ulleberg, Testing of a small-scale stand-alone power system based on solar energy and hydrogen. Solar Energy, 2012. 86(1): pp.666-680.

DOI: 10.1016/j.solener.2008.04.013

[5] Weidong, X. and D. William G., A modified adaptive hill climbing MPPT method for photovoltaic power systems. Power Electronics Specialists Conference, 2004. PESC 04. 2004 IEEE 35th Annual, (2004).

DOI: 10.1109/pesc.2004.1355417

[6] Tafticht, T.A., K; Doumbia, M, A new MPPT method for photovoltaic systems used for hydrogen production. (2007).

[7] D. Shmilovitz, On the control of photovoltaic maximum power point tracker via output parameters. Electric Power Applications, IEE Proceedings, 2005. 152(2).

DOI: 10.1049/ip-epa:20040978

[8] Liu, Q., M. Shi, and K. Jiang, New power generation technology options under the greenhouse gases mitigation scenario in China. Energy Policy, 2009. In Press, Corrected Proof.

DOI: 10.1016/j.enpol.2009.02.044

[9] Zhang, X. and K.T. Chau, An automotive thermoelectric–photovoltaic hybrid energy system using maximum power point tracking. Energy Conversion and Management, 2011. 52(1): pp.641-647.

DOI: 10.1016/j.enconman.2010.07.041

[10] Dou, X.X. and J. Andrews, Design of a Dynamic Control System for Standalone Solar-Hydrogen Power Generation. Procedia Engineering, 2012. 49(0): pp.107-115.

DOI: 10.1016/j.proeng.2012.10.118

[11] Kingo Itaya, et al., Prussianbluemodified electrodes: An application for a stable electrochromic display device. Journal of Applied Physics, 1982. 53(804).
