A 4-Bit 5 GS/s Current Steering DAC Integrated Circuit

Abstract:

In order to satisfy the higher and higher transmission rate and broadband requirement of modern communication, a 4-bit 5 GS/s digital-to-analog converter (DAC) integrated circuit is presented. The DAC circuit is based on current steering architecture and segmented with a 4 bit unary. The circuit is designed and analyzed in TSMC 0.18 μm CMOS technology. The chip size is 0.675 mm 0.525 mm. Simulation results show that the maximum integral nonlinearity (INL) is 0.15 LSB. The DAC can achieve a spurious-free dynamic range (SFDR) of 22.76 dB under a clock frequency of 5 GHz with an input signal frequency of 250 MHz, while the power consumption is 11.6 mW.

You might also be interested in these eBooks

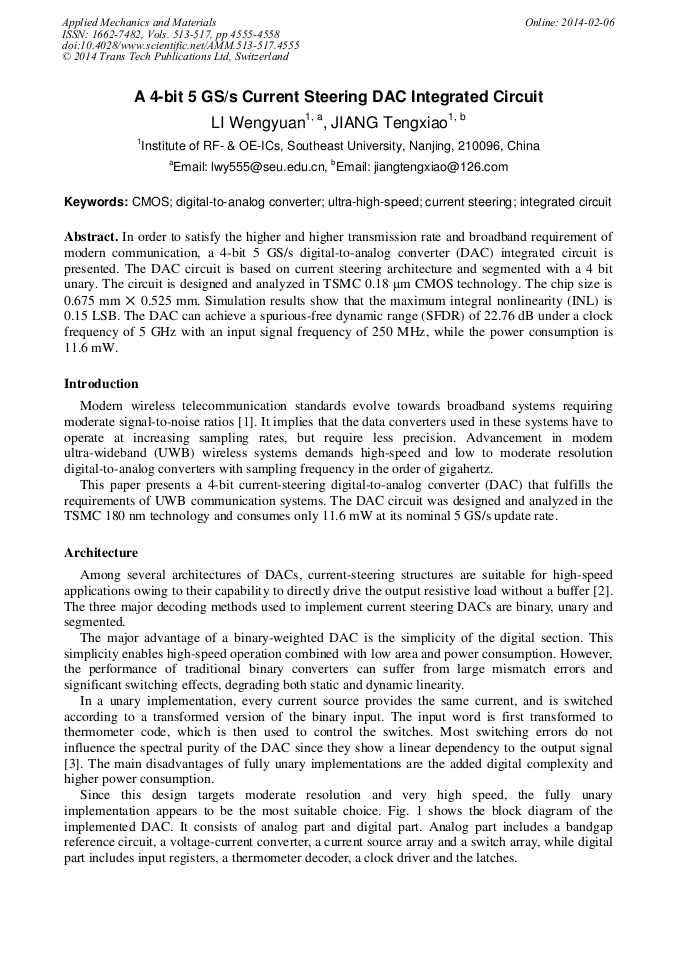

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 513-517)

Pages:

4555-4558

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.513-517.4555

Citation:

Cite this paper

Online since:

February 2014

Authors:

Weng Yuan Li*, Teng Xiao Jiang

Keywords:

CMOS, Current Steering, Digital-to-Analog Converter (DAC), Integrated Circuit, Ultra-High-Speed

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Wu Xu, Palmers P, Steyaert M. A 130 nm CMOS 6-bit full nyquist 3 GS/s DAC ［J］. IEEE Journal of Solid State Circuit, 2008, 43(11): 2396-2403.

DOI: 10.1109/jssc.2008.2004527

Google Scholar

[2] Zhang Yi, Meng Qiao, Li Xiaomei, Tang Kai. 2 GS/s 6-bit DAC in 0. 18μm CMOS technology [J]. JOURNAL OF SOUTHEAST UNIVERSITY (Natural Science Edition), 2012, 42(5): 837-842.

Google Scholar

[3] C. H. Lin and K. Bult, A 10-b 500-MSamples/s CMOS DAC in 0. 6 mm, IEEE J. Solid-State Circuits, vol. 33, no. 12, p.1948–1958, Dec. (1998).

DOI: 10.1109/4.735535

Google Scholar

[4] Cong Yonghua and Geiger L, Formulation of INL and DNL yield estimate on incurrent-steering D/A converters, IEEE International Symposium on Circuit and Systems. Scottsdale, Arizona, USA, 2002, 3: 149-152.

DOI: 10.1109/iscas.2002.1010182

Google Scholar

[5] Wikner Jacob, Tan Nianxiong. Modeling of CMOS digital-to-analog converters for telecommunication ［J］. IEEE Transactions on Circuits and Systems-II: Analog and Digital Signal Processing, 1999, 46(5): 489-499.

DOI: 10.1109/82.769797

Google Scholar

[6] B. Razavi. Principles of data conversion system design,. IEEE Press, ISBN 0-7803-1093-4, (1995).

Google Scholar

[7] W. Jacob, N. X. Tan. Influence of circuit imperfections on the performance of DACs,. Analog Integrated Circuits and Signal Processing, vol. 18, no. 1, pp.7-20, (1999).

Google Scholar

[8] Phillip E. Allen, Douglas R. Holberg. CMOS Analog Circuit Design, Second Edition [M]. Beijing: Publishing House of Electronics Industry. 2011: 100.

Google Scholar

[9] J. S. Wang and P. H. Yang, A pulse-triggered TSPC flip-flop for high-speed low-power VLSI design applications, Proc. IEEE ISCAS 1998, p. II-93-II-96(1998).

DOI: 10.1109/iscas.1998.706849

Google Scholar
