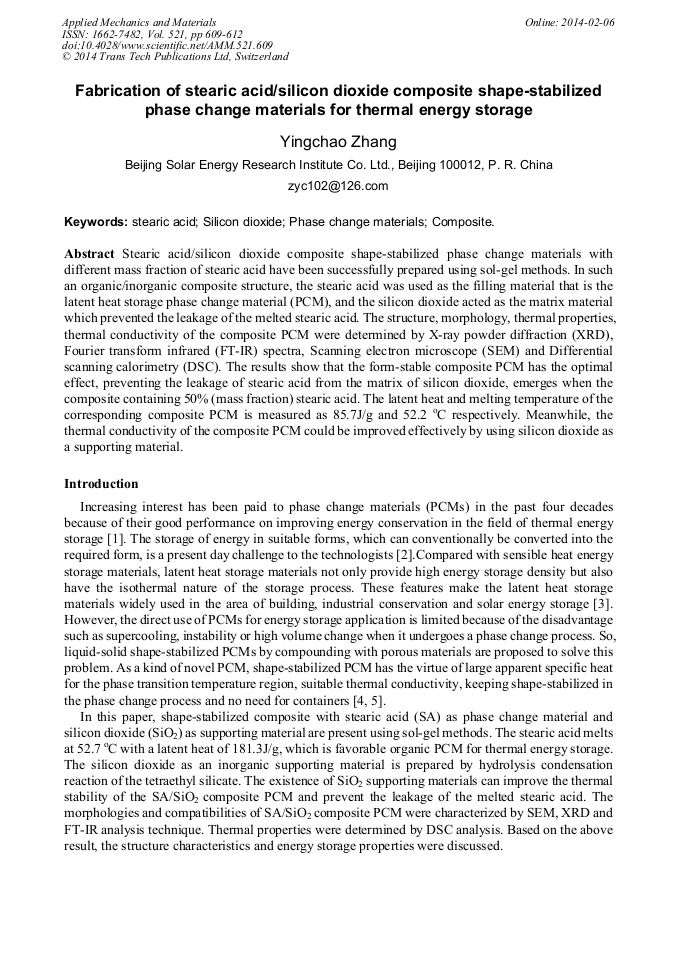

Fabrication of Stearic Acid/Silicon Dioxide Composite Shape-Stabilized Phase Change Materials for Thermal Energy Storage

Abstract:

Stearic acid/silicon dioxide composite shape-stabilized phase change materials with different mass fraction of stearic acid have been successfully prepared using sol-gel methods. In such an organic/inorganic composite structure, the stearic acid was used as the filling material that is the latent heat storage phase change material (PCM), and the silicon dioxide acted as the matrix material which prevented the leakage of the melted stearic acid. The structure, morphology, thermal properties, thermal conductivity of the composite PCM were determined by X-ray powder diffraction (XRD), Fourier transform infrared (FT-IR) spectra, Scanning electron microscope (SEM) and Differential scanning calorimetry (DSC). The results show that the form-stable composite PCM has the optimal effect, preventing the leakage of stearic acid from the matrix of silicon dioxide, emerges when the composite containing 50% (mass fraction) stearic acid. The latent heat and melting temperature of the corresponding composite PCM is measured as 85.7J/g and 52.2 °C respectively. Meanwhile, the thermal conductivity of the composite PCM could be improved effectively by using silicon dioxide as a supporting material.

• Periodical: Applied Mechanics and Materials (Volume 521)
• Pages: 609-612
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.521.609
• Online since: February 2014
• Authors: Ying Chao Zhang
• Keywords: Composite, Phase Change Materials (PCM), Silicon Dioxide, Stearic Acid

References

[1] M. Kenisari, K. Mahkamov, Solar energy storage using phase change materials, Renew Sustain Energy Rev, 11(2007), 1913-(1965).

DOI: 10.1016/j.rser.2006.05.005

[2] A. Sharma, V. V Tyagi, C.R. Chen, D. Buddhi, Review on thermal energy stotage with phase change materials and application, Renew Sustain Energy Rev, 13(2009), 318-345.

DOI: 10.1016/j.rser.2007.10.005

[3] A. Abhat, Low temperature latent heat thermal energy storage: heat storage materials, Solar Energy 30 (1983), 313-332.

DOI: 10.1016/0038-092x(83)90186-x

[4] Y.P. Zhang, et al., Preparation, thermal performance and application of shape-stabilized PCM in energy building, Energy Buildings 38(2006), 1262-1269.

DOI: 10.1016/j.enbuild.2006.02.009

[5] M. Li, Z.S. Wu, H.T. Kao, Study on preparation and thermal properties of binary fatty acid/diatomite shape-stabilized phase change materials, Sol. Energy Mater. Sol. Cells 95(2011), 2412-2416.

DOI: 10.1016/j.solmat.2011.04.017
