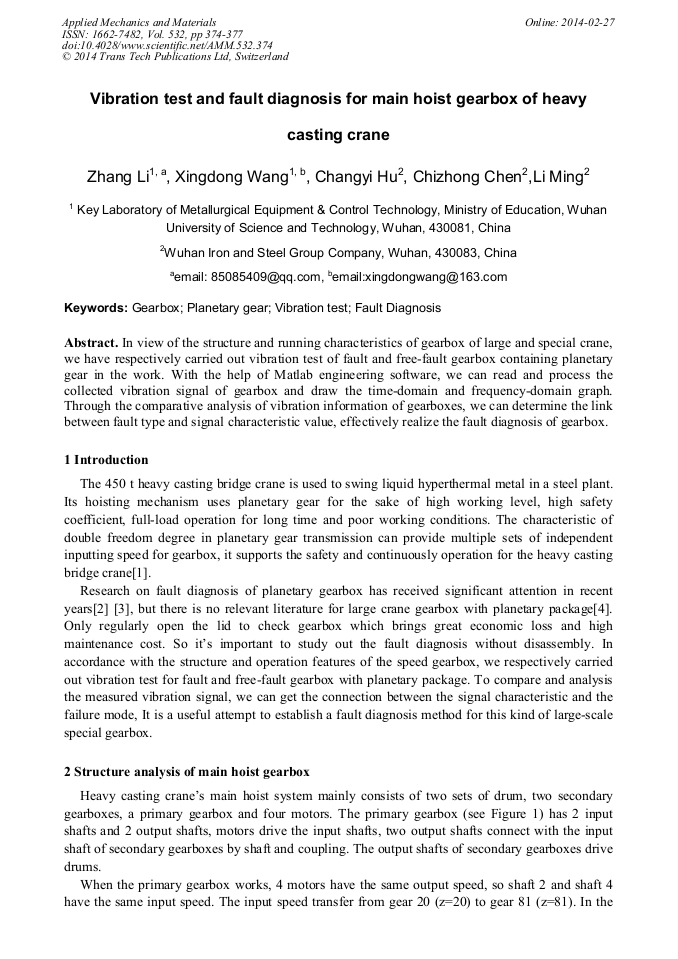

Vibration Test and Fault Diagnosis for Main Hoist Gearbox of Heavy Casting Crane

Abstract:

In view of the structure and running characteristics of gearbox of large and special crane, we have respectively carried out vibration test of fault and free-fault gearbox containing planetary gear in the work. With the help of Matlab engineering software, we can read and process the collected vibration signal of gearbox and draw the time-domain and frequency-domain graph. Through the comparative analysis of vibration information of gearboxes, we can determine the link between fault type and signal characteristic value, effectively realize the fault diagnosis of gearbox.
