Identification of Surface Crack in Steel Rods Using Wavelet Transform Modulus Maximum on Vibration Mode

Abstract:

The traditional identification method of surface crack has some shortcomings such as detection equipment complex, high requirements for operator and not suitable for large-scale structure inspection, vibration method is applied to identify surface crack in steel rods in this paper, using the method of calculating modal analysis combined with time-frequency wavelet analysis. The research on damage identification is performed on steel rods with different deep crack. The research results show that the accurate damage location can be judged by wavelet modulus maximum and the quantitative analysis of single crack identification can be achieved by constructing mathematical expressions of a single crack damage degree and damage index Lipschitz index. The research would province some guidance for engineering applications.

You might also be interested in these eBooks

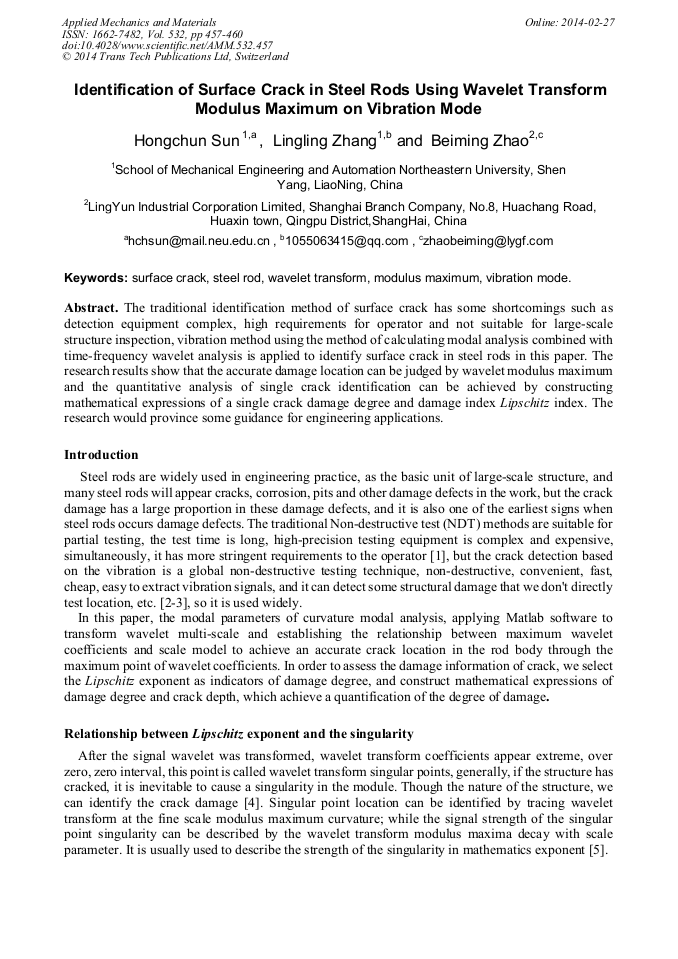

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 532)

Pages:

457-460

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.532.457

Citation:

Cite this paper

Online since:

February 2014

Authors:

Hong Chun Sun*, Ling Ling Zhang, Bei Ming Zhao

Keywords:

Modulus Maximum, Steel Rod, Surface Crack, Vibration Mode, Wavelet Transform (WT)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Fan, W., and Qiao, P. Vibration Based Damage Identification Methods: A review and Comparative Study. Structural Health Monitoring Vol. 10(2011), pp.83-111.

DOI: 10.1177/1475921710365419

Google Scholar

[2] Peeters B, Maeck J, Roeck G D. Vibration-based damage detection in civil engineering: excitation sources and temperature effects. Smart Materials and Structures Vol. 10( 2001), pp.518-527.

DOI: 10.1088/0964-1726/10/3/314

Google Scholar

[3] W.C. Gao , W. Liu, J.X. Zou . Based on changes of vibration parameters of the damage detection methods . Journal of vibration and shock Vol. 23(2004), pp.1-7.

Google Scholar

[4] M. C. Liu. Wavelet analysis and its application , Beijing, Qinghua University press( 2005).

Google Scholar

[5] F. S. Yang. Engineering analysis and application of wavelet transform , Bei Jing, Science Press(1999).

Google Scholar

[6] Y.C. Deng . Study on the method of crack identification of steel rods based on modal analysis. Shenyang: Northeastern University(2012).

Google Scholar

[7] J. C. Hong, Y. Y. Kim, H.C. Lee, Y. W. Lee. Damage detection using the Lipschitz exponent estimated by the wavelet transform: applications to vibration modes of a beam. International Journal of Solids and Structures Vol. 39(2002), pp.1803-1816.

DOI: 10.1016/s0020-7683(01)00279-7

Google Scholar
