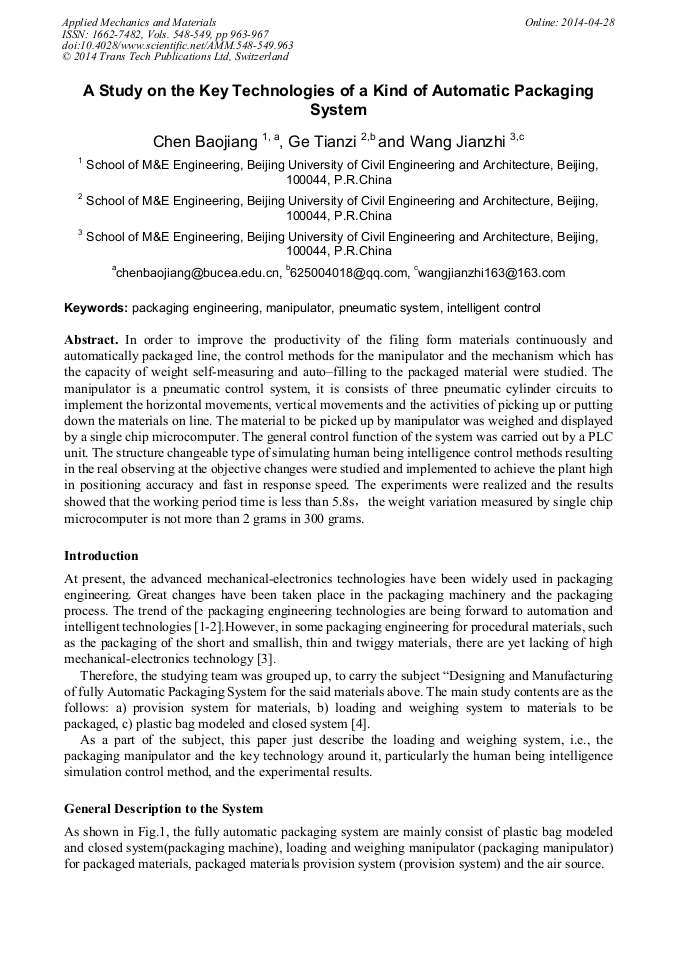

A Study on the Key Technologies of a Kind of Automatic Packaging System

Abstract:

In order to improve the productivity of the filing form materials continuously and automatically packaged line, the control methods for the manipulator and the mechanism which has the capacity of weight self-measuring and auto–filling to the packaged material were studied. The manipulator is a pneumatic control system, it is consists of three pneumatic cylinder circuits to implement the horizontal movements, vertical movements and the activities of picking up or putting down the materials on line. The material to be picked up by manipulator was weighed and displayed by a single chip microcomputer. The general control function of the system was carried out by a PLC unit. The structure changeable type of simulating human being intelligence control methods resulting in the real observing at the objective changes were studied and implemented to achieve the plant high in positioning accuracy and fast in response speed. The experiments were realized and the results showed that the working period time is less than 5.8s,the weight variation measured by single chip microcomputer is not more than 2 grams in 300 grams.

• Periodical: Applied Mechanics and Materials (Volumes 548-549)
• Pages: 963-967
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.548-549.963
• Online since: April 2014
• Authors: Bao Jiang Chen, Tian Zi Ge, Jian Zhi Wang
• Keywords: Intelligent Control, Manipulator, Packaging Engineering, Pneumatic System

References

[1] Zhang Li. The research progress of the packaging for the rice freshness[ J]. Packaging Engineering, 2010, 13: 114-116+121. (In Chinese).

[2] Han Zhanhua, Guo Fei. The application and forecasts on automation in the packing machinery[J]. Packaging and Food Machinery, 2011, 03: 49-52. (In Chinese).

[3] Yang Yang. The modern packaging industry is developing forward to the intellectualization [J]. Chinese Packaging Iindustry, 2012, 16: 18-20. (In Chinese).

[4] Hong Bo, Bao Nengsheng. The evaluation method research of conceptual design plan of packaging machinery [ J]. Packaging Engineering, 2010, 11: 80-83+95. (In Chinese).

[5] Chen Baojiang, Cao Fan. An Energy saving, quick response and high accuracy Electro-hydraulic system[J]. Mechanical Engineering Journal, 2005, 41(5): 191-195. (In Chinese).

[6] Ryoo J R, Doh T Y, Chung M J. Robust disturbance observer for the track-following control system of an optical disk drive[J]. Control Engineering Practice, 2004, 12(5): 577-585.

DOI: 10.1016/s0967-0661(03)00140-0

[7] B. Savornin, X. Baillin, E. Blanquet, et al. New method to evaluate materials out gassing used in MEMS thin film packaging technology[J]. Microelectronic Engineering, 2013, 10(7): 258-265.

DOI: 10.1016/j.mee.2012.12.002

[8] Sajjad Shoja Majidabad, Heydar Toosian Shandiz. Discrete-time based sliding-mode control of robot manipulators[J]. International Journal of Intelligent Computing and Cybernetics, 2012, 53: 345-352.

DOI: 10.1108/17563781211255880
