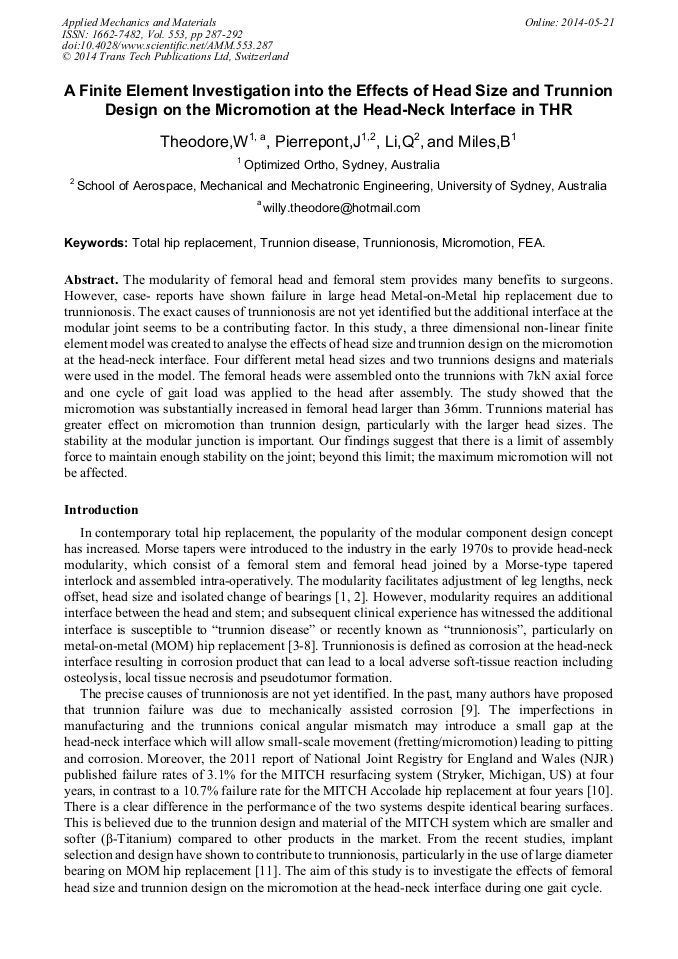

A Finite Element Investigation into the Effects of Head Size and Trunnion Design on the Micromotion at the Head-Neck Interface in THR

Abstract:

The modularity of femoral head and femoral stem provides many benefits to surgeons. However, case-reports have shown failure in large head Metal-on-Metal hip replacement due to trunnionosis. The exact causes of trunnionosis are not yet identified but the additional interface at the modular joint seems to be a contributing factor. In this study, a three dimensional non-linear finite element model was created to analyse the effects of head size and trunnion design on the micromotion at the head-neck interface. Four different metal head sizes and two trunnions designs and materials were used in the model. The femoral heads were assembled onto the trunnions with 7kN axial force and one cycle of gait load was applied to the head after assembly. The study showed that the micromotion was substantially increased in femoral head larger than 36mm. Trunnions material has greater effect on micromotion than trunnion design, particularly with the larger head sizes. The stability at the modular junction is important. Our findings suggest that there is a limit of assembly force to maintain enough stability on the joint; beyond this limit; the maximum micromotion will not be affected.

• Periodical: Applied Mechanics and Materials (Volume 553)
• Pages: 287-292
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.553.287
• Online since: May 2014
• Authors: W. Theodore*, J. Pierrepont, Q. Li, B. Miles
• Keywords: Finite Element Analysis (FEA), Micromotion, Total Hip Replacement, Trunnion Disease, Trunnionosis

References

[1] Pennock, A.T., A.H. Schmidt, and C.A. Bourgeault, Morse-type tapers: factors that may influence taper strength during total hip arthroplasty. J Arthroplasty, 2002. 17(6): pp.773-8.

DOI: 10.1054/arth.2002.33565

[2] Lieberman, J.R., et al., An analysis of the head-neck taper interface in retrieved hip prostheses. Clin Orthop Relat Res, 1994(300): pp.162-7.

[3] Head diameter is positively correlated with taper corrosion in retrieved LDMoM hips (2012).

[4] Chana, R., et al., Mixing and matching causing taper wear: corrosion associated with pseudotumour formation. J Bone Joint Surg Br, 2012. 94(2): pp.281-6.

DOI: 10.1302/0301-620x.94b2.27247

[5] Meyer, H., et al., Corrosion at the cone/taper interface leads to failure of large-diameter metal-on-metal total hip arthroplasties. Clin Orthop Relat Res, 2012. 470(11): pp.3101-8.

DOI: 10.1007/s11999-012-2502-5

[6] Barrett, W.P., K.A. Kindsfater, and J.P. Lesko, Large-Diameter Modular Metal-on-Metal Total Hip Arthroplasty: Incidence of Revision for Adverse Reaction to Metallic Debris. J Arthroplasty, 2012. 27(6): pp.976-983 e1.

DOI: 10.1016/j.arth.2012.01.019

[7] Bolland, B.J., et al., High failure rates with a large-diameter hybrid metal-on-metal total hip replacement: clinical, radiological and retrieval analysis. J Bone Joint Surg Br, 2011. 93(5): pp.608-15.

DOI: 10.1302/0301-620x.93b5.26309

[8] Cooper, H.J., et al., Corrosion at the head-neck taper as a cause for adverse local tissue reactions after total hip arthroplasty. J Bone Joint Surg Am, 2012. 94(18): pp.1655-61.

DOI: 10.2106/jbjs.k.01352

[9] Gilbert, J.L., C.A. Buckley, and J.J. Jacobs, In vivo corrosion of modular hip prosthesis components in mixed and similar metal combinations. The effect of crevice, stress, motion, and alloy coupling. J Biomed Mater Res, 1993. 27(12): pp.1533-44.

DOI: 10.1002/jbm.820271210

[10] listed, N. a. National Joint Registry for England and Wales: 7th Annual Report. (2010).

[11] Langton, D.J., et al., Taper junction failure in large-diameter metal-on-metal bearings. Bone Joint Res, 2012. 1(4): pp.56-63.

DOI: 10.1302/2046-3758.14.2000047

[12] Naomi G.D. Murray, V.R.J., and Howard L. Freese Mechanical and Physical Properties of Titanium-12Molybdenum-6Zirconium-2Iron Beta Titanium Alloy journal of ASTM international, 2005. 2(8).

DOI: 10.1520/jai12774

[13] Shareef, N. and D. Levine, Effect of manufacturing tolerances on the micromotion at the Morse taper interface in modular hip implants using the finite element technique. Biomaterials, 1996. 17(6): pp.623-30.

DOI: 10.1016/0142-9612(96)88713-8

[14] Bergmann, G., et al., Realistic loads for testing hip implants. Biomed Mater Eng, 2010. 20(2): pp.65-75.

[15] Fessler, H. and D.C. Fricker, Friction in femoral prosthesis and photoelastic model cone taper joints. Proc Inst Mech Eng H, 1989. 203(1): pp.1-14.

DOI: 10.1243/pime_proc_1989_203_003_01

[16] Naomi G.D. Murray, V.R.J., Howard L. Freese., Mechanical and Physical Properties of Titanium-12Molybdenum-6Zirconium-2Iron Beta Titanium Alloy. Journal of ASTM international, 2005. 2(8).

DOI: 10.1520/jai12774

[17] Collier, J.P., et al., Corrosion at the interface of cobalt-alloy heads on titanium-alloy stems. Clin Orthop Relat Res, 1991(271): pp.305-12.

DOI: 10.1097/00003086-199110000-00042

[18] Kurtz, S.M., et al., Do Ceramic Femoral Heads Reduce Taper Fretting Corrosion in Hip Arthroplasty? A Retrieval Study. Clin Orthop Relat Res, (2013).

[19] Goldberg, J.R., et al., A multicenter retrieval study of the taper interfaces of modular hip prostheses. Clin Orthop Relat Res, 2002(401): pp.149-61.

[20] Malik, A., A. Maheshwari, and L.D. Dorr, Impingement with total hip replacement. J Bone Joint Surg Am, 2007. 89(8): pp.1832-42.

DOI: 10.2106/jbjs.f.01313

[21] Nassif, N.A., et al., Taper Design Affects Failure of Large-head Metal-on-metal Total Hip Replacements. Clin Orthop Relat Res, (2013).

DOI: 10.1007/s11999-013-3115-3

[22] Australian orthopaedic association national joint replacement registry: Annual Report 2011. : www. dmac. adelaide. edu. au [Accessed 15/03/2012], (2011).
