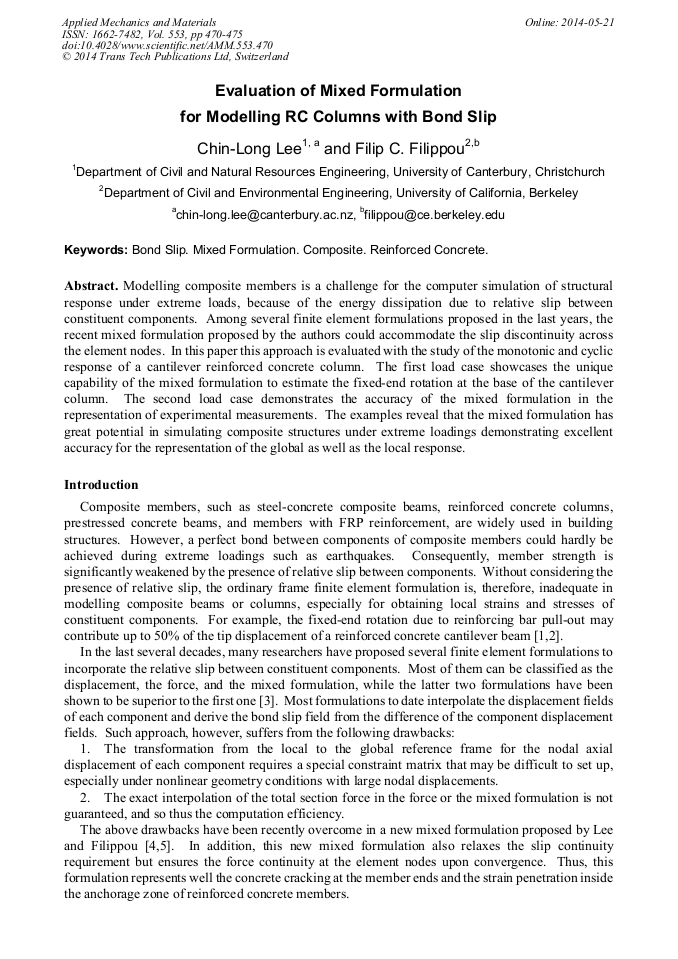

Evaluation of Mixed Formulation for Modelling RC Columns with Bond Slip

Abstract:

Modelling composite members is a challenge for the computer simulation of structural response under extreme loads, because of the energy dissipation due to relative slip between constituent components. Among several finite element formulations proposed in the last years, the recent mixed formulation proposed by the authors could accommodate the slip discontinuity across the element nodes. In this paper this approach is evaluated with the study of the monotonic and cyclic response of a cantilever reinforced concrete column. The first load case showcases the unique capability of the mixed formulation to estimate the fixed-end rotation at the base of the cantilever column. The second load case demonstrates the accuracy of the mixed formulation in the representation of experimental measurements. The examples reveal that the mixed formulation has great potential in simulating composite structures under extreme loadings demonstrating excellent accuracy for the representation of the global as well as the local response.

• Periodical: Applied Mechanics and Materials (Volume 553)
• Pages: 470-475
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.553.470
• Online since: May 2014
• Authors: Chin Long Lee*, Filip C. Filippou
• Keywords: Bond Slip, Composite, Mixed Formulation, Reinforced Concrete

References

[1] R. Eligehausen, E. P. Popov, V.V. Bertero, Local bond stress-slip relationships of deformed bars under generalized excitations: experimental results and analytical model, Report no. UCB/EERC-83/2, Earthquake Engineering Research Center, University of California, Berkeley, (1983).

[2] F.C. Filippou, E.P. Popov, V.V. Bertero, Effects of bond deterioration on hysteretic behavior of reinforced concrete joints, Report no. UCB/EERC-83/19. Earthquake Engineering Research Center, University of California, Berkeley, (1983).

[3] E. Spacone, S. El-Tawil, Nonlinear analysis of steel-concrete composite structures: State of the art, Journal of Structural Engineering ASCE, Vol 130(2): 159-168, (2004).

DOI: 10.1061/(asce)0733-9445(2004)130:2(159)

[4] C. -L. Lee, Hu-Washizu 3d frame formulations including bond-slip and singular section response. Ph.D. Dissertation. University of California, Berkeley, (2008).

[5] C. -L. Lee, F.C. Filippou, Mixed Formulation for Composite and RC Frame Element with Bond-Slip. 19th Analysis & Computation Specialty Conference, Orlando, 12-15 May 2010, Florida, (2010).

DOI: 10.1061/41131(370)45

[6] A.S. Ayoub, F.C. Filippou, Mixed formulation of bond slip problems under cyclic loads, Journal of Structural Engineering ASCE 125 (6) 661-671, (1999).

DOI: 10.1061/(asce)0733-9445(1999)125:6(661)

[7] S.N. Bousias, G. Verzeletti, M.N. Fardis, E. Guitierrez, E. Load-path effects in column biaxial bending with axial force, Journal of Environmental Engineering, 125(5) 596-605, (1995).

DOI: 10.1061/(asce)0733-9399(1995)121:5(596)

[8] J.B. Mander, M.J.N. Priestley, R. Park, Theoretical stress-strain model for confined concrete, Journal of Structural Engineering ASCE, 114(8) 1804-1826, (1988).

DOI: 10.1061/(asce)0733-9445(1988)114:8(1804)

[9] M. Menegotto, P.E. Pinto, Method of analysis for cycli-cally loaded reinforced concrete plane frames including changes in geometry and nonelastic behavior of elements under combined normal force and bending, Proc., IABSE Symp. on Resistance and Ultimate Deformability of Structures Acted on by Well-Defined Repeated Loads, Final Report, Lisbon, Portugal, (1973).
