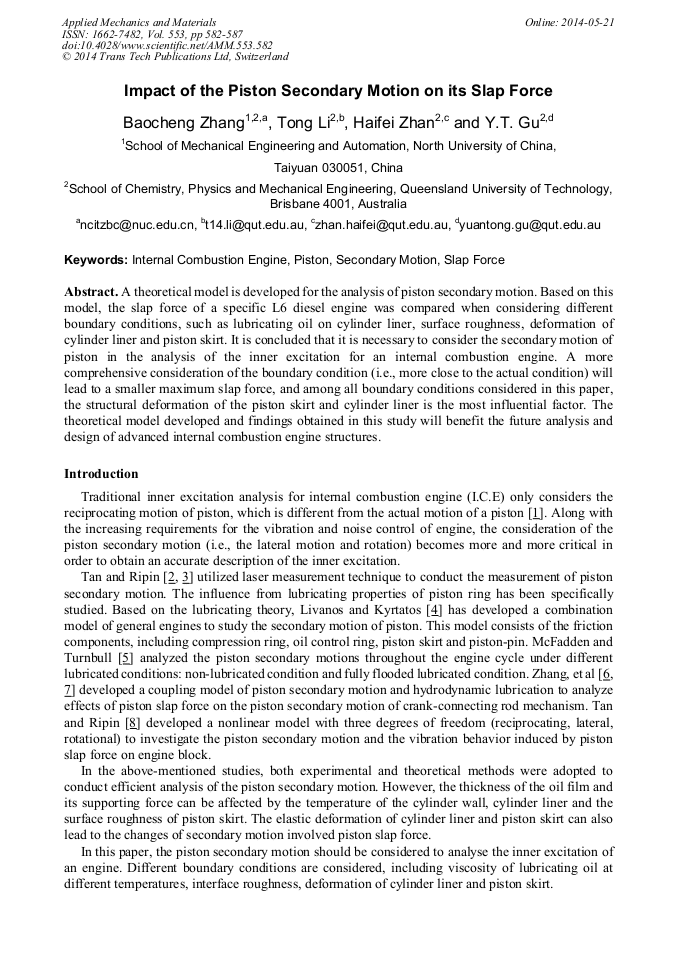

Impact of the Piston Secondary Motion on its Slap Force

Abstract:

A theoretical model is developed for the analysis of piston secondary motion. Based on this model, the slap force of a specific L6 diesel engine was compared when considering different boundary conditions, such as lubricating oil on cylinder liner, surface roughness, deformation of cylinder liner and piston skirt. It is concluded that it is necessary to consider the secondary motion of piston in the analysis of the inner excitation for an internal combustion engine. A more comprehensive consideration of the boundary condition (i.e., more close to the actual condition) will lead to a smaller maximum slap force, and among all boundary conditions considered in this paper, the structural deformation of the piston skirt and cylinder liner is the most influential factor. The theoretical model developed and findings obtained in this study will benefit the future analysis and design of advanced internal combustion engine structures.

• Periodical: Applied Mechanics and Materials (Volume 553)
• Pages: 582-587
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.553.582
• Online since: May 2014
• Authors: Bao Cheng Zhang*, Tong Li, Hai Fei Zhan, Yuan Tong Gu
• Keywords: Internal Combustion Engine, Piston, Secondary Motion, Slap Force

References

[1] B. Zhang, L.S. Yin, Y.D. Guo, Q. Zhang, Engineering Realization of Vibration Control for Certain V6 Diesel Engine, Chinese Internal Combustion Engine Engineering, 25 (2004) 48-50.

[2] Y.C. Tan, Z.M. Ripin, Technique of Measuring Piston Secondary Motion Using Laser Displacement Sensors, Experimental Mechanics, 52 (2012) 1447-1459.

DOI: 10.1007/s11340-012-9600-x

[3] Y. -C. Tan, Z.M. Ripin, Frictional behavior of piston rings of small utility two-stroke engine under secondary motion of piston, Tribology International, 44 (2011) 592-602.

DOI: 10.1016/j.triboint.2010.12.009

[4] G.A. Livanos, N.P. Kyrtatos, Friction model of a marine diesel engine piston assembly, Tribology International, 40 (2007) 1441-1453.

DOI: 10.1016/j.triboint.2007.01.020

[5] P.D. McFadden, S.R. Turnbull, Dynamic analysis of piston secondary motion in an internal combustion engine under non-lubricated and fully flooded lubricated conditions, Proceedings of the Institution of Mechanical Engineers Part C-Journal of Mechanical Engineering Science, 225 (2011).

DOI: 10.1177/0954406211408674

[6] Z. Zhang, Y. Xie, X. Zhang, X. Meng, Analysis of piston secondary motion considering the variation in the system inertia, Proceedings of the Institution of Mechanical Engineers Part D-Journal of Automobile Engineering, 223 (2009) 549-563.

DOI: 10.1243/09544070jauto1078

[7] X. Zhang, Z. Zhang, P. Wang, Y. Xie, A Piston Lubrication Model Considering the Coupling between the Piston Secondary Motion and the System Inertia Variation in an IC Engine, (2009).

DOI: 10.1007/978-3-642-03653-8_65

[8] Y. -C. Tan, Z.M. Ripin, Analysis of piston secondary motion, Journal of Sound and Vibration, 332 (2013) 5162-5176.

DOI: 10.1016/j.jsv.2013.04.042

[9] B. Zhang, T. Su, L. Zhang, Internal Combustion Engine Dynamics, National Defence Industry Press, Beijing, (2009).

[10] PISDYN Documentation/User's Manual V3. 2, Ricardo Inc., (2003).
