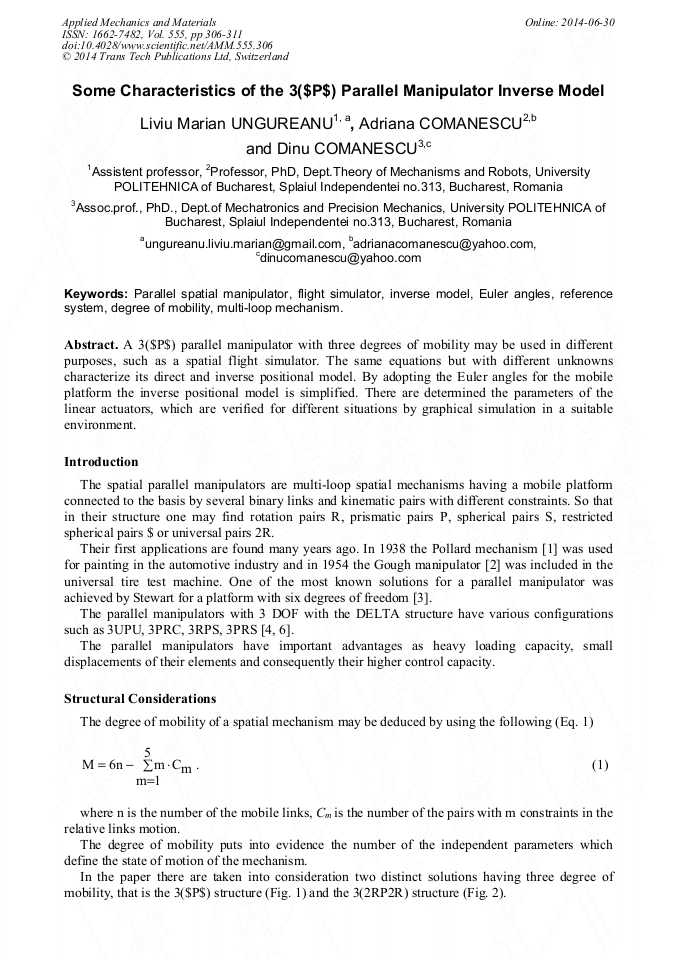

Some Characteristics of the 3($P$) Parallel Manipulator Inverse Model

Abstract:

A 3($P$) parallel manipulator with three degrees of mobility may be used in different purposes, such as a spatial flight simulator. The same equations but with different unknowns characterize its direct and inverse positional model. By adopting the Euler angles for the mobile platform the inverse positional model is simplified. There are determined the parameters of the linear actuators, which are verified for different situations by graphical simulation in a suitable environment.

• Periodical: Applied Mechanics and Materials (Volume 555)
• Pages: 306-311
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.555.306
• Online since: June 2014
• Authors: Liviu Marian Ungureanu*, Adriana Comanescu, Dinu Comanescu
• Keywords: Degree of Mobility, Euler Angles, Flight Simulator, Inverse Model, Multi-Loop Mechanism, Parallel Spatial Manipulator, Reference System

References

[1] Chr. Pelecudi: Bazele analizei mecanismelor, Editura Academiei Romane, (1962).

[2] V.E. Gough and S.G. Whitehall: Universal tire test machine, Proc. of the FISITA-9th International Technical Congress, (1962), pp.117-137.

[3] D. Stewart: A platform with six degrees of freedom, Proc. of the Institution of Mechanical Engineers, Vol. 180, Part 1, Nr. 15, pp.371-385.

[4] Adr. Comănescu, D. Comănescu, I. Dugăeşescu, A. Boureci: Bazele modelării mecanismelor, Editura Politehnica Press, Bucureşti, (2010).

[5] J.P. Merlet: An algorithm for the forward kinematics of general parallel manipulators, IEEE, (1991), P. 1136-1140.

[6] St. Staicu, C. Popa: Kinematics of the 3-UPU parallel robot, UPB Sci. Bull, series D, no. 3, (2013), pp.9-18.
