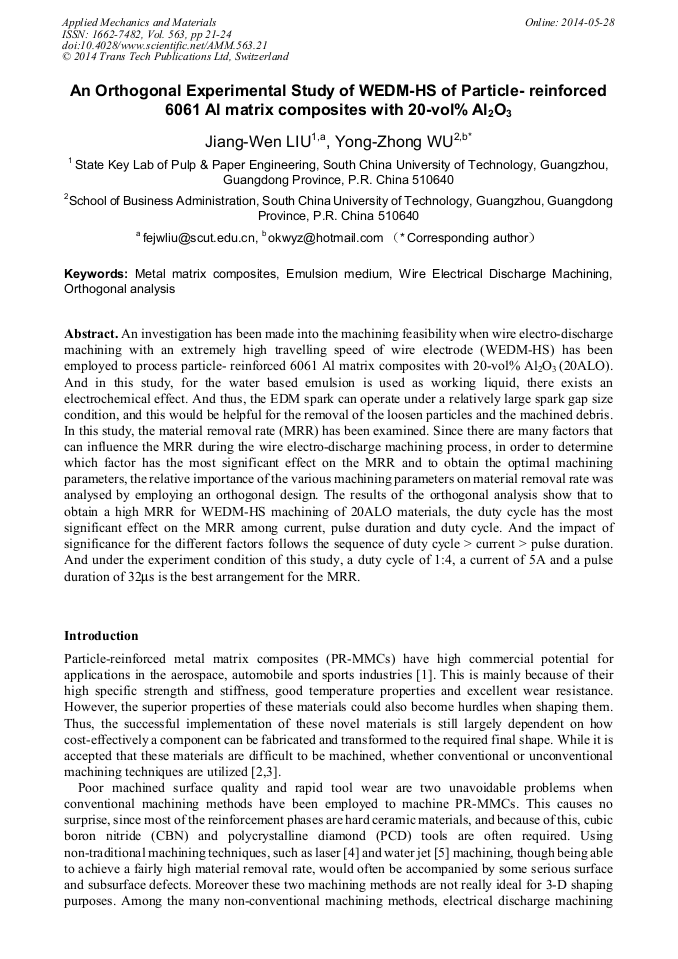

An Orthogonal Experimental Study of WEDM-HS of Particle-Reinforced 6061 Al Matrix Composites with 20-Vol% Al₂O₃

Abstract:

An investigation has been made into the machining feasibility when wire electro-discharge machining with an extremely high travelling speed of wire electrode (WEDM-HS) has been employed to process particle-reinforced 6061 Al matrix composites with 20-vol% Al₂O₃ (20ALO). And in this study, for the water based emulsion is used as working liquid, there exists an electrochemical effect. And thus, the EDM spark can operate under a relatively large spark gap size condition, and this would be helpful for the removal of the loosen particles and the machined debris. In this study, the material removal rate (MRR) has been examined. Since there are many factors that can influence the MRR during the wire electro-discharge machining process, in order to determine which factor has the most significant effect on the MRR and to obtain the optimal machining parameters, the relative importance of the various machining parameters on material removal rate was analysed by employing an orthogonal design. The results of the orthogonal analysis show that to obtain a high MRR for WEDM-HS machining of 20ALO materials, the duty cycle has the most significant effect on the MRR among current, pulse duration and duty cycle. And the impact of significance for the different factors follows the sequence of duty cycle > current > pulse duration. And under the experiment condition of this study, a duty cycle of 1:4, a current of 5A and a pulse duration of 32μs is the best arrangement for the MRR.

• Periodical: Applied Mechanics and Materials (Volume 563)
• Pages: 21-24
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.563.21
• Online since: May 2014
• Authors: Jiang Wen Liu, Yong Zhong Wu*
• Keywords: Emulsion Medium, Metal Matrix Composite (MMC), Orthogonal Analysis, Wire Electrical Discharge Machining (WEDM)

References

[1] W. Speer and O.S. Es-Said, Applications of an aluminum-beryllium composite for structural aerospace components, Engineering Failure Analysis. 11 (2004), 895-902.

DOI: 10.1016/j.engfailanal.2004.02.002

[2] I. Ciftci, M. Turker and U. Seker, Evaluation of tool wear when machining SiCp-reinforced Al-2014 alloy matrix composites Materials and Design, 25 (2004), 251-255.

DOI: 10.1016/j.matdes.2003.09.019

[3] F. Müller and J. Monaghan, Non-conventional machining of particle reinforced metal matrix composite, International Journal of Machine Tools and Manufacture, 40, (2000), 1351-1366.

DOI: 10.1016/s0890-6955(99)00121-2

[4] T.M. Yue, and W.S. Lau. Pulsed Nd: YAG laser cutting of SiC/Al-Li metal matrix composite, Materials and Manufacturing Processes, (1996) 11, 17-29.

DOI: 10.1080/10426919608947458

[5] E. Savrun and M. Taya, Surface characterization of SiC wisker/2124 aluminium and Al2O3 composites machined by abrasive water jet, Journal of Materials Science, (1988) 23, 1453-1458.

DOI: 10.1007/bf01154616

[6] M. Ramulu and M. Taya, EDM machinability of SiCw/Al composites, Journal of Materials Science, 24 (1989), 1103-1108.

DOI: 10.1007/bf01148805

[7] A. Dvivedi, P. Kumar and I. Singh, Experimental investigation and optimisation in EDM of Al 6063 SiCp metal matrix composite, International Journal of Machining and Machinability of Materials, 3 (2008), 293-308.

DOI: 10.1504/ijmmm.2008.020965

[8] B.H. Yan, H.C. Tsai, F.Y. Huang and L.C. Lee, Examination of wire electrical discharge machining of Al2O3p/6061Al composites, International Journal of Machine tools & Manufacture, 45 (2005), 251-269.

DOI: 10.1016/j.ijmachtools.2004.08.015

[9] B.H. Yan, et al. Feasibility study of rotary electrical discharge machining with ball burnishing for Al2O3 6061Al composite, International Journal of Machine Tools & Manufacture, 40, (2000), 1403-1421.

DOI: 10.1016/s0890-6955(00)00005-5

[10] C.C. Wang and B.H. Yan, Blind-hole drilling of Al2O3 6061Al composite using rotary electro-discharge machining, Journal of materials processing technology, 102, (2000), 90-102.

DOI: 10.1016/s0924-0136(99)00423-9
