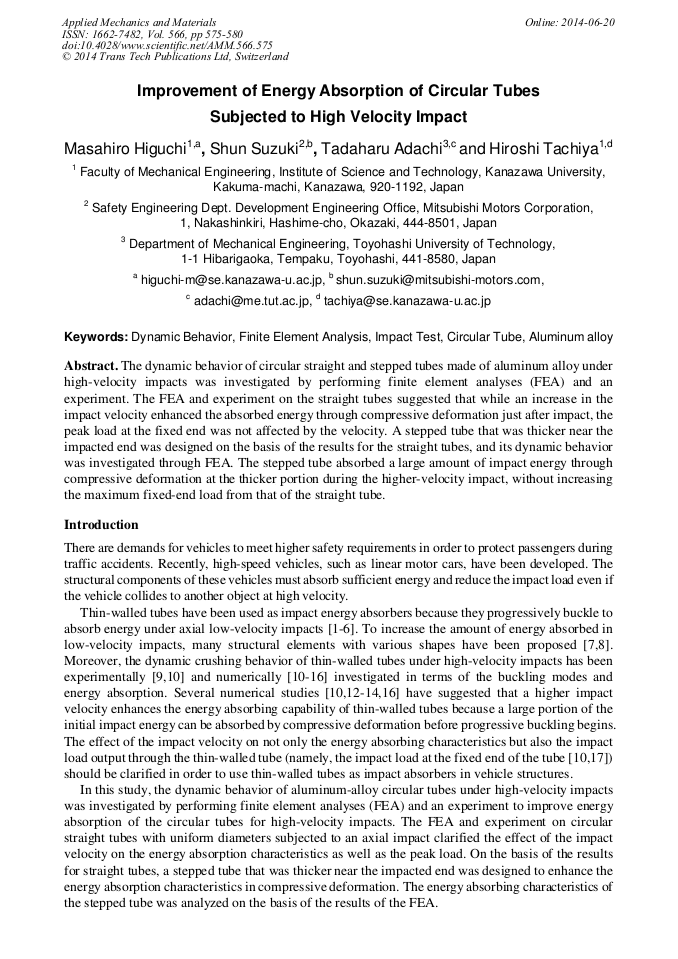

Improvement of Energy Absorption of Circular Tubes Subjected to High Velocity Impact

Abstract:

The dynamic behavior of circular straight and stepped tubes made of aluminum alloy under high-velocity impacts was investigated by performing finite element analyses (FEA) and an experiment. The FEA and experiment on the straight tubes suggested that while an increase in the impact velocity enhanced the absorbed energy through compressive deformation just after impact, the peak load at the fixed end was not affected by the velocity. A stepped tube that was thicker near the impacted end was designed on the basis of the results for the straight tubes, and its dynamic behavior was investigated through FEA. The stepped tube absorbed a large amount of impact energy through compressive deformation at the thicker portion during the higher-velocity impact, without increasing the maximum fixed-end load from that of the straight tube.

• Periodical: Applied Mechanics and Materials (Volume 566)
• Pages: 575-580
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.566.575
• Online since: June 2014
• Authors: Masahiro Higuchi*, Shun Suzuki, Tadaharu Adachi, Hiroshi Tachiya
• Keywords: Aluminium Alloy, Circular Tube, Dynamic Behavior, Finite Element Analysis (FEA), Impact Test

References

[1] N. Jones: Structural Impact (Cambridge University Press, Cambridge 1989).

[2] S.R. Gullow, G. Lu and R.H. Grzebieta: Int. J. Mech. Sci., Vol. 43 (2001), p.2103.

[3] F.C. Bardi, H.D. Yun and S. Kyriakides: Int. J. Solids & Struct., Vol. 40 (2003), p.3137.

[4] D.A. Galib and A. Limam: Thin-Walled Struct., Vol. 42 (2004), p.1103.

[5] S. Ujihashi, T. Sogo, H. Matsumoto and T. Adachi: J. Soc. Mat. Sci. (in Japanese), Vol. 42 (1993), p.1427.

[6] S.S. Hsu and N. Jones: Lat. Am. J. Solids & Struct., Vol. 1 (2004), p.296.

[7] A.G. Mamalis, G.L. Viegelahn, D.E. Manolakos and W. Johnson: Int. J. Impact Eng., Vol. 4 (1986), p.117.

[8] T. Adachi, A. Tomiyama, W. Araki and A. Yamaji: Int. J. Impact Eng., Vol. 35 (2008), p.65.

[9] K. Murase and N. Jones: J. Soc. Mat. Sci., Jpn. (in Japanese), Vol. 42 (1993), p.1420.

[10] M. Higuchi, Y. Hamaguchi, S. Suzuki and T. Adachi: J. JSEM, Vol. 12 (2012), p. s133.

[11] D. Karagiozova and N. Jones: Int. J. Solids & Struct., Vol. 37 (2000), p. (2005).

[12] D. Karagiozova, M. Alves and N. Jones: Int. J. Imp. Eng., Vol. 24 (2000), p.1083.

[13] D. Karagiozova and N. Jones: Thin-Walled Struct., Vol. 39 (2001), p.583.

[14] D. Karagiozova and N. Jones: Int. J. Solids & Struct., Vol. 38 (2001), p.6723.

[15] D. Karagiozova: Int. J. Imp. Eng., Vol. 30 (2004), p.143.

[16] D. Karagiozova: Int. J. Imp. Eng., Vol. 30 (2004), p.167.

[17] S. Haruyama, M. Takano, K. Ushijima and D.H. Chen: Trans. Jpn. Soc. Mech. Eng. A (in Japanese), Vol. 71 (2005), p.1030.

[18] Radioss theory manual 11. 0 version, Chap. 5, Altair Engineering, Inc., (2011), p.51.
