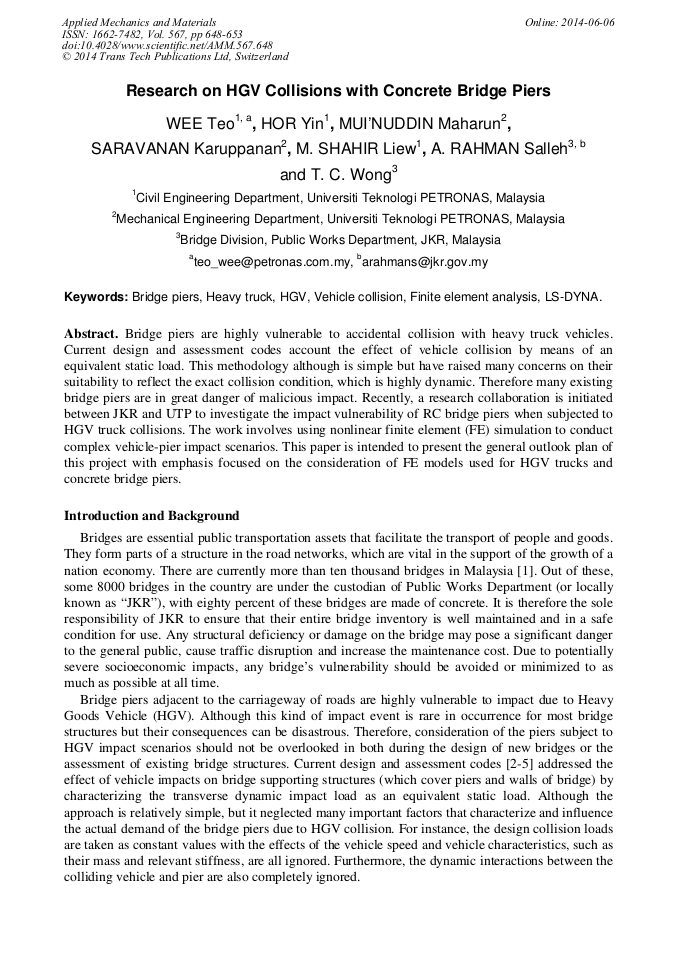

Research on HGV Collisions with Concrete Bridge Piers

Abstract:

Bridge piers are highly vulnerable to accidental collision with heavy truck vehicles. Current design and assessment codes account the effect of vehicle collision by means of an equivalent static load. This methodology although is simple but have raised many concerns on their suitability to reflect the exact collision condition, which is highly dynamic. Therefore many existing bridge piers are in great danger of malicious impact. Recently, a research collaboration is initiated between JKR and UTP to investigate the impact vulnerability of RC bridge piers when subjected to HGV truck collisions. The work involves using nonlinear finite element (FE) simulation to conduct complex vehicle-pier impact scenarios. This paper is intended to present the general outlook plan of this project with emphasis focused on the consideration of FE models used for HGV trucks and concrete bridge piers.

• Periodical: Applied Mechanics and Materials (Volume 567)
• Pages: 648-653
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.567.648
• Online since: June 2014
• Authors: Teo Wee*, Hor Yin, Mui’nuddin Maharun, Karuppanan Saravanan, M. Shahir Liew, A. Rahman Salleh, T.C. Wong
• Keywords: Bridge Piers, Finite Element Analysis (FEA), Heavy Truck, HGV, LS-DYNA, Vehicle Collision

References

[1] S. M. Idris, Z. Ismail, Appraisal of Concrete Bridges: Some Local Examples, Jurutera, July 2007, pp.36-41.

[2] BS EN 1991-1-7: 2006, Eurocode 1: Actions on structures – Part 1-7: General actions – Accidental actions, European Committee for Standardization, July (2006).

[3] BS EN 1991-2: 2003, Eurocode 1: Actions on structures – Part 2: Traffic loads on bridges, European Committee for Standardization, Sept (2003).

DOI: 10.3403/30393711u

[4] BD 60/04, The Design of Highway Bridges for Vehicle Collision Loads, Design Manual for Roads and Bridges, Vol. 1, Sec. 3, Part 5, (2004).

[5] BD 48/93, The Assessment and Strengthening of Highway Bridge Supports, Design Manual for Roads and Bridges, Vol. 3, Sec. 4, Part 7, (1993).

[6] S. El-Tawil, E. Severino and P. Fonseca, Vehicle Collision with Bridge Piers, Journal of Bridge Engineering, ASCE, Vol. 10, No. 3, May-June (2005).

DOI: 10.1061/(asce)1084-0702(2005)10:3(345)

[7] A. Ghose, Strategies for the Management of Bridges for Vehicular Impacts, Structures and Buildings, Proceedings of the Institution of Civil Engineers, 162, Feb. 2009, pp.3-10.

DOI: 10.1680/stbu.2009.162.1.3

[8] H. Sharma, S. Hurlebaus, P. Gardoni, Performance-based Response Evaluation of Reinforced Concrete Columns Subject to Vehicle Impact, International Journal of impact Engineering, 43, 2012, pp.52-62.

DOI: 10.1016/j.ijimpeng.2011.11.007

[9] LS-DYNA, Keyword User's Manual, Vol. 1 & 2, Version 971, Livermore Software Technology Corporation (LSTC), May (2007).

[10] Road Transport Department (RTD) Malaysia, Last time visit on 8th February (2013).

[11] National Crash Analysis Center (NCAC), Available in: http: /www. ncac. gwu. edu.

[12] European Standard EN-1317 Test Vehicle Models, CM/E Group - Politecnico di Milano, Italy. Available in: http: /www. ncac. gwu. edu/vml/models. html.

[13] H. Kang, J. Shin, J. Kim, Analysis of Steel Moment Frames Subjected to Vehicle Impact, 5th Asia Pacific Congress on Computational Mechanics & 4th International Symposium on Computational Mechanics (APCOM & ISCM 2013), Singapore, 11-14th December (2013).

[14] E. Oldani, L. Castelletti, M. Anghileri, M. Mongiardini, Impact Analysis of a 16t Truck Against Different Road Safety Restraint Systems, 5th European LS-DYNA Users Conference, Birmingham, UK, 25-26th May (2005).

[15] B. Ferrer, S. Ivorra, E. Segovia, R. Irles, Tridimensional modelization of the impact of a vehicle against a metallic parking column at a low speed, Engineering Structures, 32, 2010, p.1986-(1992).

DOI: 10.1016/j.engstruct.2010.02.032
