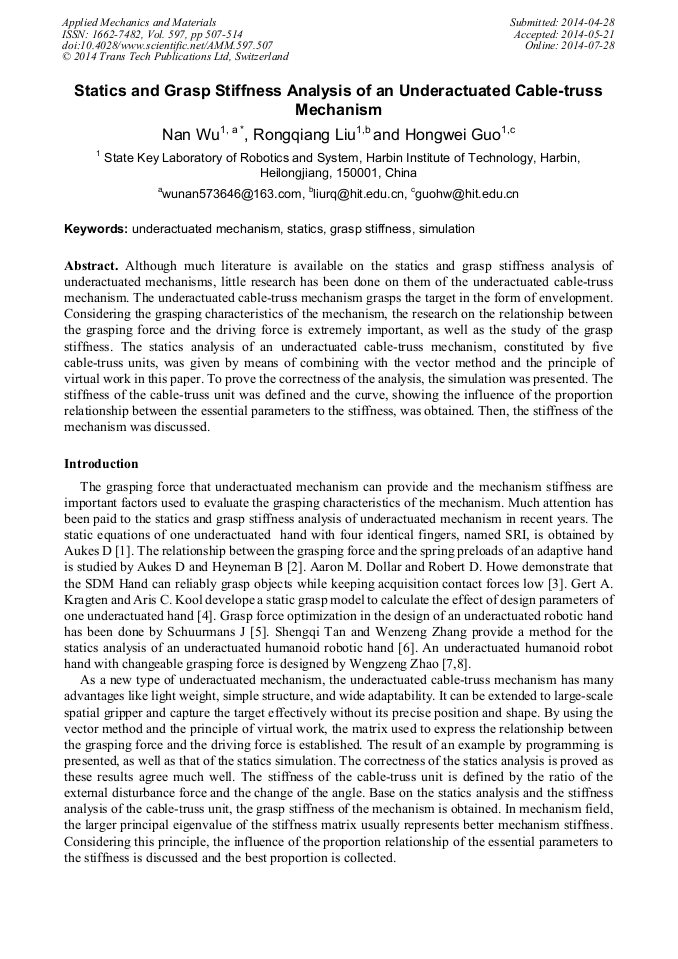

Statics and Grasp Stiffness Analysis of an Underactuated Cable-Truss Mechanism

Abstract:

Although much literature is available on the statics and grasp stiffness analysis of underactuated mechanisms, little research has been done on them of the underactuated cable-truss mechanism. The underactuated cable-truss mechanism grasps the target in the form of envelopment. Considering the grasping characteristics of the mechanism, the research on the relationship between the grasping force and the driving force is extremely important, as well as the study of the grasp stiffness. The statics analysis of an underactuated cable-truss mechanism, constituted by five cable-truss units, was given by means of combining with the vector method and the principle of virtual work in this paper. To prove the correctness of the analysis, the simulation was presented. The stiffness of the cable-truss unit was defined and the curve, showing the influence of the proportion relationship between the essential parameters to the stiffness, was obtained. Then, the stiffness of the mechanism was discussed.

• Periodical: Applied Mechanics and Materials (Volume 597)
• Pages: 507-514
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.597.507
• Online since: July 2014
• Authors: Nan Wu*, Rong Qiang Liu, Hong Wei Guo
• Keywords: Grasp Stiffness, Simulation, Statics, Underactuated Mechanism

References

[1] Aukes D, Kim S, Carcis P. Selectively Compliant Underactuated Hand for Mobile Manipulation[C]/IEEE ICRA. Saint Paul, Minnesota, USA: IEEE, 2012: 2824-2829.

DOI: 10.1109/icra.2012.6224738

[2] Aukes D, Heyneman B. Varying spring preloads to select grasp strategies in an adaptive hand [C]/IEEE/RSJ IROS. San Francisco, CA, USA: IEEE, 2011: 1373-1379.

DOI: 10.1109/iros.2011.6095078

[3] Aaron M. Dollar, Robert D. Howe. The SDM Hand: A Highly Adaptive Compliant Grasper for Unstructured Environments [J]. International Journal of Robotics Research, 2010(in press): 1-11.

DOI: 10.1007/978-3-642-00196-3_2

[4] Gert A. Kragten, Aris C. Kool, Just L. Grasp force optimization in the design of an underactuated robotic hand[C]/IEEE 10th ICORR. Kobe, Japan: IEEE, 2009: 2493-2498.

[5] Schuurmans J, Linde R Q. Ability to hold grasped objects by underactuated hands: performance prediction and experiments[C]/IEEE ICRA. Noordwijk, The Netherlands: IEEE, 2007: 776-782.

DOI: 10.1109/robot.2009.5152659

[6] Shengqi Tan, Wenzeng Zhang. Design and Analysis of Underactuated Humanoid Robotic Hand Based on Slip Block-Cam Mechanism [C]/IEEE ROBIO. Biomimetics. Guilin, China: IEEE, 2009: 2356-2361.

DOI: 10.1109/robio.2009.5420859

[7] Wengzeng Zhao, Xiande Ma. Underactuated humanoid robot hand with end power grasping [N]. J Tsinghua Univ (Sci & Tech), 2009, Vo l. 49, No. 2: 194-197.

[8] Wengzeng Zhao, Qiang Chen. Underactuated humanoid robot hand with changeable grasping force[N]. J Tsinghua Univ (Sci & Tech), 2003, Vo l. 43, No. 8: 1143-1147.
