Mechanical Properties of Polylactic Acid/Treated Fermented Chitin Nanowhiskers Biocomposites

Syazeven Effatin Azma Mohd Asri; Zainoha Zakaria; Azman Hassan; Mohamad Kassim Mohamad Haafiz

doi:10.4028/www.scientific.net/AMM.606.89

Paper Titles

Biofilm Green Packaging: Characterization and Biodegradation Studies
p.67

Pyrolysis of Solid Palm Waste Biomass with Microwave Absorber under Microwave Irradiation
p.73

Preferred Growth Orientation of Cementite Carbide by Phase-Field Simulation
p.79

A Review of the Low-Temperature Degradation of Dental Zirconia
p.85

Mechanical Properties of Polylactic Acid/Treated Fermented Chitin Nanowhiskers Biocomposites
p.89

Phase Evaluation of Pure Mg, Mg-1Ca and Mg-1Ca-3Zn ‎Alloys by Thermal Analysis Used in ‎Medical Applications
p.93

Photo Catalytic Reduction of Pb(II) Using Titanium Oxide PVA-Alginate Beads under Sunlight
p.99

Aluminum-Copper Bilayers Thin Films Deposited at Room Temperature by RF Magnetron Sputtering
p.105

Parameter Study of Tool-Laminate Interface through Simulation for Composite Manufacturing Using Autoclave Process
p.113

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 606Mechanical Properties of Polylactic Acid/Treated...

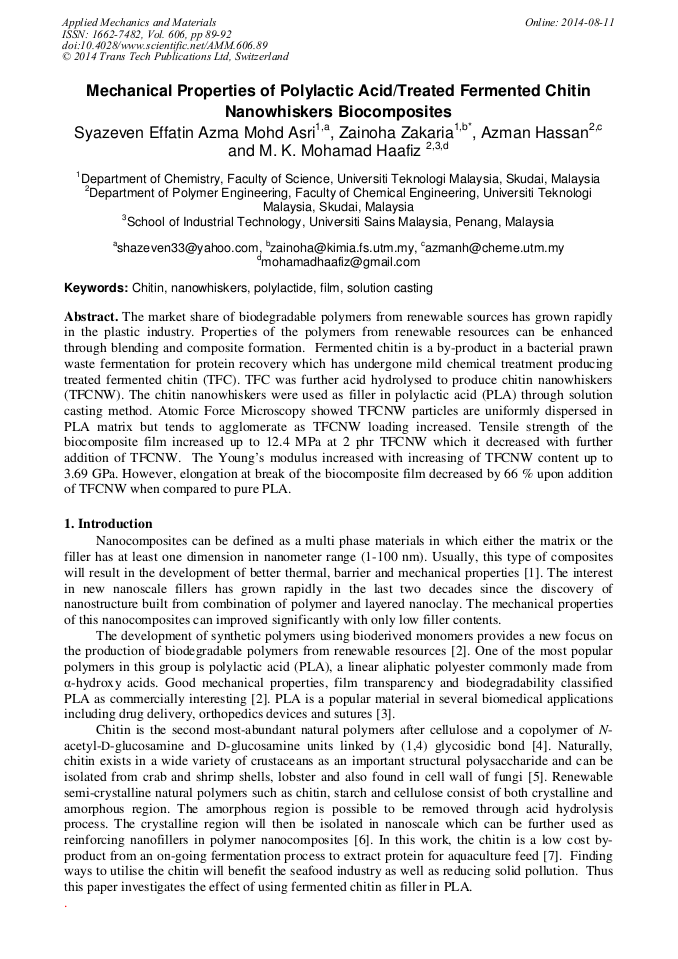

Mechanical Properties of Polylactic Acid/Treated Fermented Chitin Nanowhiskers Biocomposites

Abstract:

The market share of biodegradable polymers from renewable sources has grown rapidly in the plastic industry. Properties of the polymers from renewable resources can be enhanced through blending and composite formation. Fermented chitin is a by-product in a bacterial prawn waste fermentation for protein recovery which has undergone mild chemical treatment producing treated fermented chitin (TFC). TFC was further acid hydrolysed to produce chitin nanowhiskers (TFCNW). The chitin nanowhiskers was used as filler in polylactic acid (PLA) through solution casting method. Atomic Force Microscopy showed TFCNW particles are uniformly dispersed in PLA matrix but tends to agglomerate as TFCNW loading increased. Tensile strength of the biocomposite film increased up to 12.4 MPa at 2 phr TFCNW which it decreased with further addition of TFCNW. The Young’s modulus increased with increasing of TFCNW content up to 3.69 GPa. However, elongation at break of the biocomposite film decreased by 66 % upon addition of TFCNW when compared to pure PLA.
