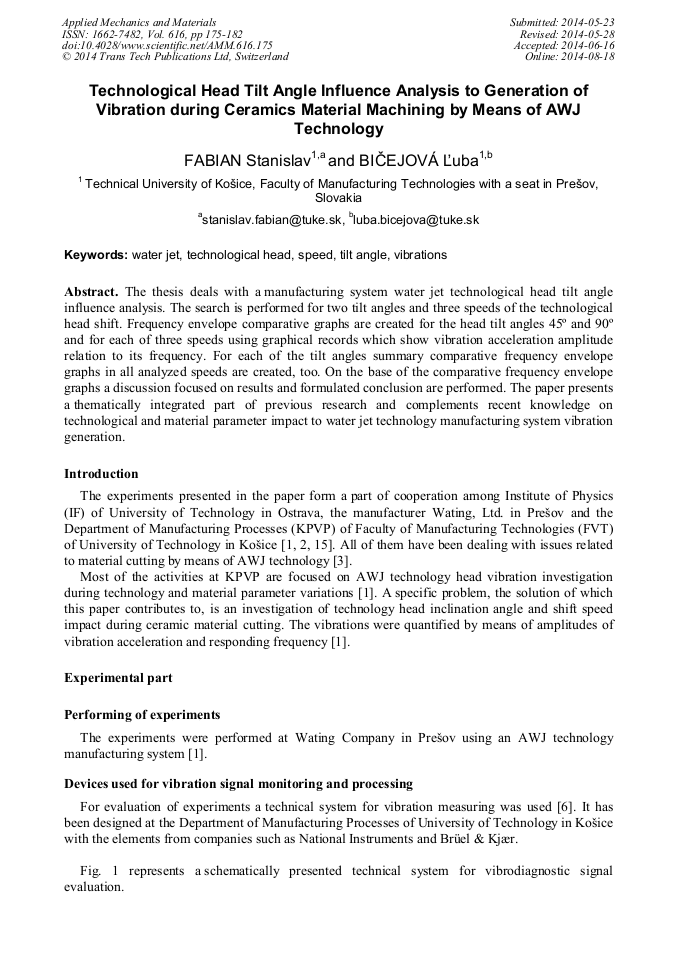

Technological Head Tilt Angle Influence Analysis to Generation of Vibration during Ceramics Material Machining by Means of AWJ Technology

Abstract:

The thesis deals with a manufacturing system water jet technological head tilt angle influence analysis. The search is performed for two tilt angles and three speeds of the technological head shift. Frequency envelope comparative graphs are created for the head tilt angles 45o and 90o and for each of three speeds using graphical records which show vibration acceleration amplitude relation to its frequency. For each of the tilt angles summary comparative frequency envelope graphs in all analyzed speeds are created, too. On the base of the comparative frequency envelope graphs a discussion focused on results and formulated conclusion are performed. The paper presents a thematically integrated part of previous research and complements recent knowledge on technological and material parameter impact to water jet technology manufacturing system vibration generation.

• Periodical: Applied Mechanics and Materials (Volume 616)
• Pages: 175-182
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.616.175
• Online since: August 2014
• Authors: Stanislav Fabian*, Luba Bicejova
• Keywords: Speed, Technological Head, Tilt Angle, Vibration, Water Jet
