Utilization of Tooth Contact Pattern in a Gear Meshing Model for Estimation of Sliding Loss in a Parallel-Axis Gear Pair

Abstract:

The utilization of tooth contact pattern in a gear meshing model for estimation of sliding loss in a spur and helical gear pair is presented in this paper. The photo of tooth contact pattern taken after the gear operation is used as the database to generate the simplified tooth contact pattern. Then the simplified contact pattern is used along with the gear meshing model to estimate the sliding loss of a gear pair. Experiments are done to verify the results. The estimated results from the presented method agree well with the experimental results. The presented method is able to estimate the effect of the helix angle on the sliding loss correctly whereas the estimation without using the data of tooth contact pattern cannot.

You might also be interested in these eBooks

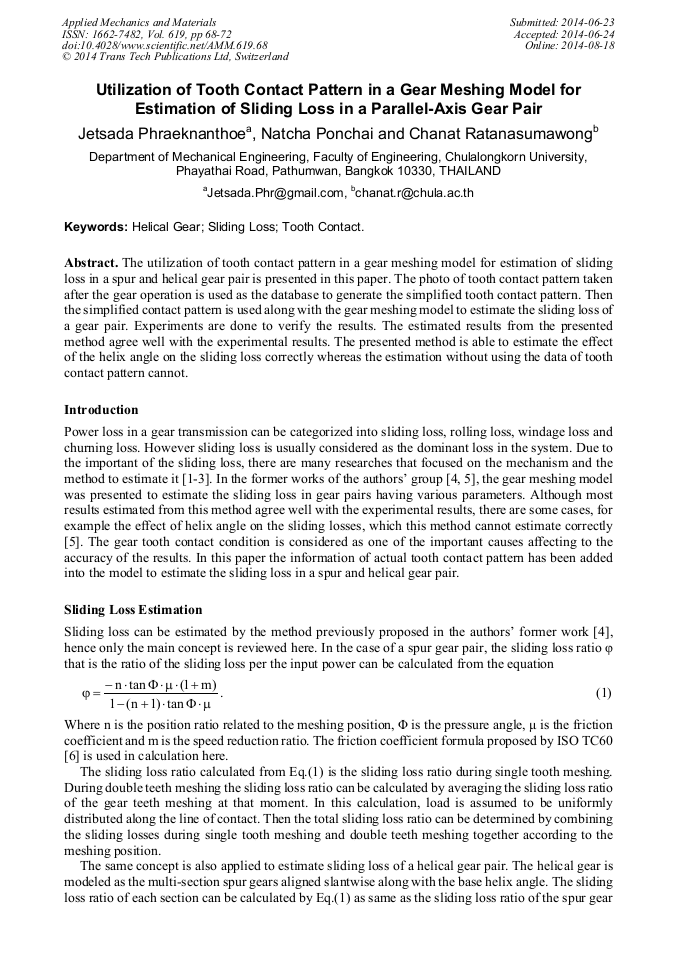

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 619)

Pages:

68-72

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.619.68

Citation:

Cite this paper

Online since:

August 2014

Authors:

Jetsada Phraeknanthoe*, Natcha Ponchai, Chanat Ratanasumawong

Keywords:

Helical Gear, Sliding Loss, Tooth Contact

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y. Michlin and V. Myunster: Determination of power loss in gear transmission with rolling and sliding friction incorporated, Mech. Mach. Theory, vol. 37, no. 2 (2002), pp.167-174.

DOI: 10.1016/s0094-114x(01)00070-2

Google Scholar

[2] N. E. Anderson, and S. H. Lowenthal: Effect of Geometry and Operating Conditions on Spur Gear System Power Loss, J. Mech. Design, Vol. 103, Jan, (1981), pp.151-159.

DOI: 10.1115/1.3254854

Google Scholar

[3] H. Xu, A. Kahraman, N. E. Anderson, and D. G. Maddock: Prediction of Mechanical Efficiency of Parallel Axis Gear Pairs, J. Mech. Design, Vol. 129, Jan, (2007), pp.58-68.

DOI: 10.1115/1.2359478

Google Scholar

[4] C. Ratanasumawong, P. Asawapichayachot, S. Phongsupasamit, H. Houjoh, and S. Matsumura: Estimation of Sliding Loss in a Parallel-Axis Gear Pair, Special Issue on ICMDT 2011 – J. Adv. Mech. Des. Syst. Manuf., Vol. 6, No. 1 (2012), pp.88-103.

DOI: 10.1299/jamdsm.6.88

Google Scholar

[5] P. Asawapichayachot: Improvement of A Mathematical Model and Experiment for Estimation of Sliding Loss in Helical Gear Transmission, Master of Engineering Thesis, Dept. Mech. Eng., Chulalongkorn University, Thailand, (2011), (in Thai).

Google Scholar

[6] ISO TC 60, DTR 13989.

Google Scholar

[7] T.A. Harris, and M.N. Kotzalas: Rolling Bearing Analysis – Essential Concepts of Bearing Technology, Boca Raton, CRC Press, (2007).

Google Scholar

[8] C. Yenti, S. Phongsupasamit and C. Ratanasumawong: Analytical and Experimental Investigation of Parameters Affecting Sliding Loss in a Spur Gear Pair, Engineering Journal, Vol. 17, No. 1, Jan, (2013), pp.79-93.

DOI: 10.4186/ej.2013.17.1.79

Google Scholar
