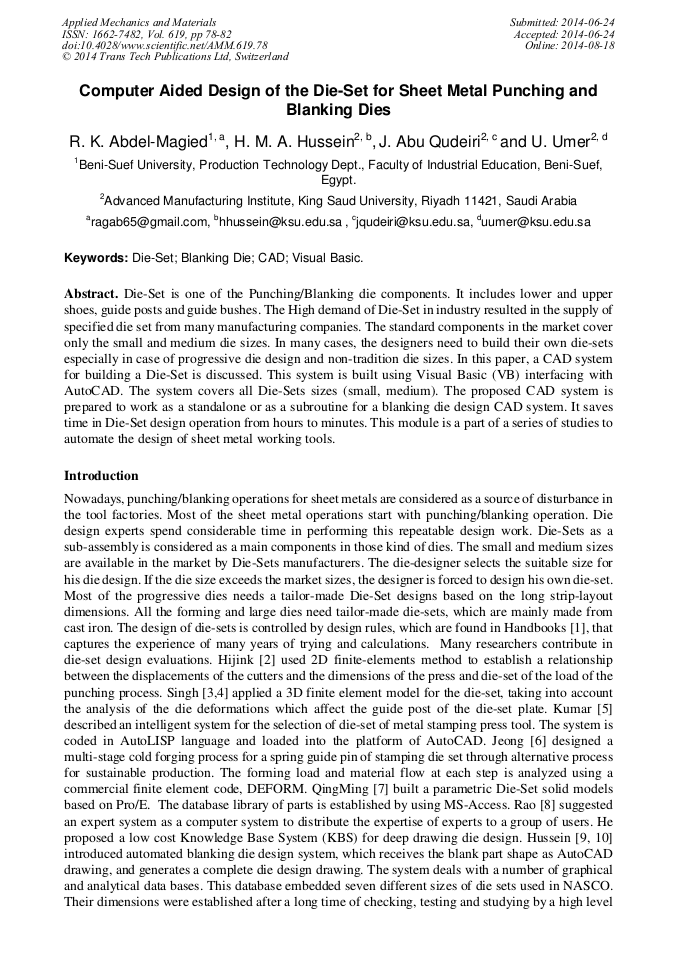

Computer Aided Design of the Die-Set for Sheet Metal Punching and Blanking Dies

Abstract:

Die-Set is one of the Punching/Blanking die components. It includes lower and upper shoes, guide posts and guide bushes. The High demand of Die-Set in industry resulted in the supply of specified die set from many manufacturing companies. The standard components in the market cover only the small and medium die sizes. In many cases, the designers need to build their own die-sets especially in case of progressive die design and non-tradition die sizes. In this paper, a CAD system for building a Die-Set is discussed. This system is built using Visual Basic (VB) interfacing with AutoCAD. The system covers all Die-Sets sizes (small, medium). The proposed CAD system is prepared to work as a standalone or as a subroutine for a blanking die design CAD system. It saves time in Die-Set design operation from hours to minutes. This module is a part of a series of studies to automate the design of sheet metal working tools.

• Periodical: Applied Mechanics and Materials (Volume 619)
• Pages: 78-82
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.619.78
• Online since: August 2014
• Authors: R.K. Abdel-Magied*, H.M.A. Hussein, J. Abu Qudeiri, U. Umer
• Keywords: Blanking Die, CAD, Die-Set, Visual Basic

References

[1] D. A. Smith., Die Design Handbook., Library of congress catalog, SME, (1990).

[2] J.A.W. Hijink, A.C.H. Wolf, On the Design of Die-Sets., Ann CIRP, 24, 1, (1975), 357-360.

[3] U.P. Singh, H.J.J. Kals, and A.H. Streppel, Computer Aided Design of a Die-Set for Punching/Blanking, Proceedings of 28th International MTDR Conference, (1990), 379-386, (1990).

DOI: 10.1007/978-1-349-10890-9_52

[4] W. Klingenberg, U.P. Singh, Design and optimization of punching/blanking systems aided by experimental modeling, International Journal of Vehicle Design, 39, 1/2, (2005), 125-139.

DOI: 10.1504/ijvd.2005.007224

[5] S. Kumar and R. Singh, An intelligent system for selection of die-set of metal stamping press tool, Journal of Materials Processing Technology, 164–165, (2005), 1395–1401.

DOI: 10.1016/j.jmatprotec.2005.02.066

[6] M.S. Jeong, S.K. Lee, J. H. Sung, K.E. Kim, S. Lee, K.W. Lee, and T.H. Choi, Green Alternative Processing Technology for a Spring Guide Pin of Stamping Die Set, KSPE and Springer 2012, Int. Journal of Precision Engineering & Manufacturing, 13, 7, (2012).

DOI: 10.1007/s12541-012-0164-6

[7] Q.M. Fan, G. Liu, and W. Wang, Development of Die Sets standard parts library based on Pro/E., Procedia Engineering, 15, (2011), 3802: 3807.

DOI: 10.1016/j.proeng.2011.08.712

[8] B.V.S. Rao, G.C.M. Reddy, G Krishna Mohan Rao, P Ranadheer and P.V. R Ravindra Reddy, Low cost knowledge base system for Design of deep drawing die set, Int. J. Mech. Eng. & Rob. Res., IJMERR., 2, 1, (2013), 246-253.

[9] H.M.A. Hussein, , A CAD System in Sheet Metal Blanking Dies in 2D, First International and 22th All Indian Manufacturing Technology Design and Research Conference (22th AIMTDR), 21: 23 December , IIT-Roorke, India, (2006), 253-258.

[10] H.M.A. Hussein, , A.F. Barakat, , L. A. Abdel Latif, , F. Wang, An Approach To Develop An Intelligent System For Sheet Metal Cutting Dies, ICTP 2008, Korea, 7-11 Sept, (2008), 2336-2341.
