1-Phase Induction Motor Control Using Modified H-Bridge 11-Level Inverter

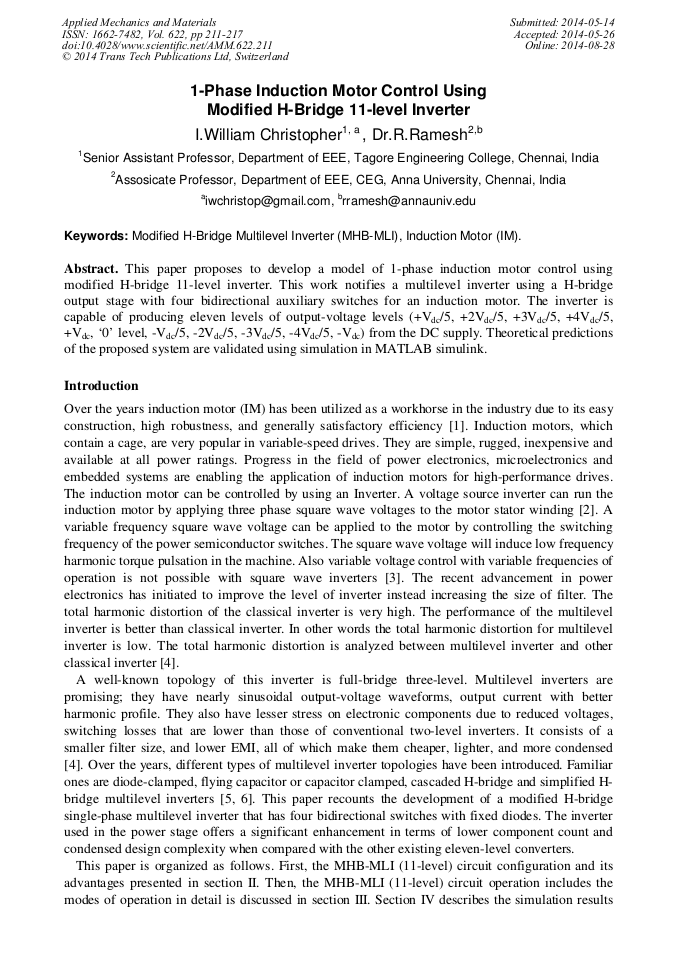

Article Preview

Abstract:

This paper proposes to develop a model of 1-phase induction motor control using modified H-bridge 11-level inverter. This work notifies a multilevel inverter using a H-bridge output stage with four bidirectional auxiliary switches for an induction motor. The inverter is capable of producing eleven levels of output-voltage levels (+Vdc/5, +2Vdc/5, +3Vdc/5, +4Vdc/5, +Vdc, ‘0’ level, -Vdc/5, -2Vdc/5, -3Vdc/5, -4Vdc/5, -Vdc) from the DC supply. Theoretical predictions of the proposed system are validated using simulation in MATLAB simulink.
