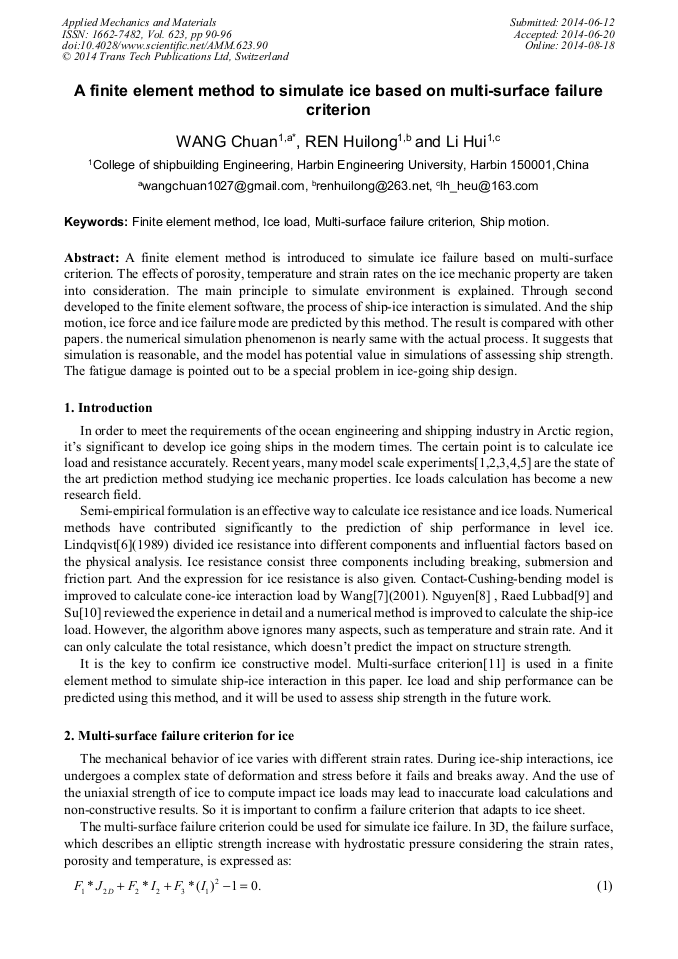

A Finite Element Method to Simulate Ice Based on Multi-Surface Failure Criterion

Abstract:

A finite element method is introduced to simulate ice failure based on multi-surface criterion. The effects of porosity, temperature and strain rates on the ice mechanic property are taken into consideration. The main principle to simulate environment is explained. Through second developed to the finite element software, the process of ship-ice interaction is simulated. And the ship motion, ice force and ice failure mode are predicted by this method. The result is compared with other papers. the numerical simulation phenomenon is nearly same with the actual process. It suggests that simulation is reasonable, and the model has potential value in simulations of assessing ship strength. The fatigue damage is pointed out to be a special problem in ice-going ship design.

• Periodical: Applied Mechanics and Materials (Volume 623)
• Pages: 90-96
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.623.90
• Online since: August 2014
• Authors: Chuan Wang*, Hui Long Ren, Hui Li
• Keywords: Finite Element Method (FEM), Ice Load, Multi-Surface Failure Criterion, Ship Motion

References

[1] Ralston T.D. An analysis of ice sheet indentation, Fourth International IAHR Symposium on Ice Problems, 1978, pp.7-9.

[2] Stephen J. Jones. The Confined Compressive Strength of Polycrystalline Ice, Journal of Glaciology, Vol. 98, No. 28, 1982, pp.171-177.

DOI: 10.1017/s0022143000011874

[3] G.W. Timco, W.F. Weeks. A review of the engineering properties of sea ice, Cold Regions Science and Technology, Vol. 60, 2010, pp.107-129.

DOI: 10.1016/j.coldregions.2009.10.003

[4] Von Bock und Polach,R., Ehlers. Model scale ice-Part A: Experiments. Cold Regions Science and Technology, Vol. 94, 2013, pp.74-81.

DOI: 10.1016/j.coldregions.2013.07.001

[5] Erland M. Schulson. Brittle Failure of Ice. Engineering Fracture Mechanics, Vol. 68, 2001. pp.1839-1887.

DOI: 10.1016/s0013-7944(01)00037-6

[6] Lindqvist,G., A straightforward method for calculation of ice resistance of ships. Proceedings of POAC,. 1989, pp.722-735.

[7] Wang, S. A dynamic model for breaking pattern of level ice by conical structures. Helsinki University of Technology, Finland, (2001).

[8] Nguyen, D. T., Sørbø, A. H., Sørensen, A. J. Modeling and Control for Dynamic Positioned Vessels in Level Ice. Proceedings of 8th Conference on Manoeuvring and Control of Marine Craft (MCMC'2009), 2009, p.229–236.

DOI: 10.3182/20090916-3-br-3001.0006

[9] Biao Su, Kai Riska. A numerical method for the prediction of ship performace in level ice. Cold Regions Science and Technology, Vol. 60, 2010, pp.177-188.

DOI: 10.1016/j.coldregions.2009.11.006

[10] Raed Lubbad, Sveinung Løset. A numerical model for real-time simulation of ship–ice interaction. Cold Regions Science and Technology, Vol. 65, pp.111-117.

DOI: 10.1016/j.coldregions.2010.09.004

[11] Ahmed Derradji-Aouat. Multi-surface failure criterion for saline ice in the brittle regime. Cold Regions Science and Technology, Vol. 36, 2003, pp.47-70.

DOI: 10.1016/s0165-232x(02)00093-9
