Design of the Experimental System of Electromechanical Control Based on Soft PLC

Abstract:

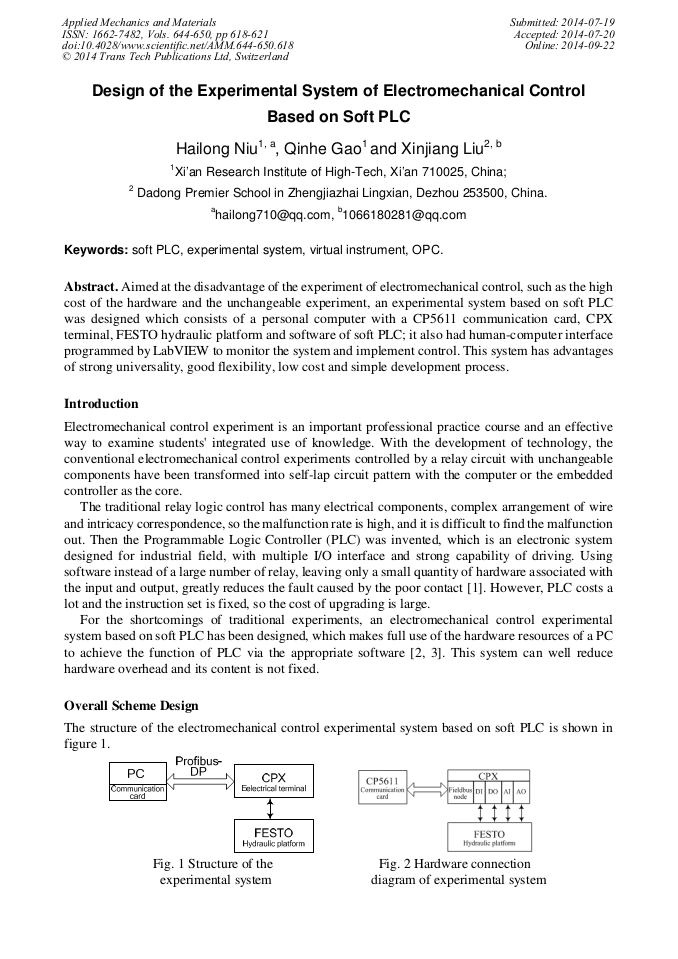

Aimed at the disadvantage of the experiment of electromechanical control, such as the high cost of the hardware and the unchangeable experiment, an experimental system based on soft PLC was designed which consists of a personal computer with a CP5611 communication card, CPX terminal, FESTO hydraulic platform and software of soft PLC; it also had human-computer interface programmed by LabVIEW to monitor the system and implement control. This system has advantages of strong universality, good flexibility, low cost and simple development process.
