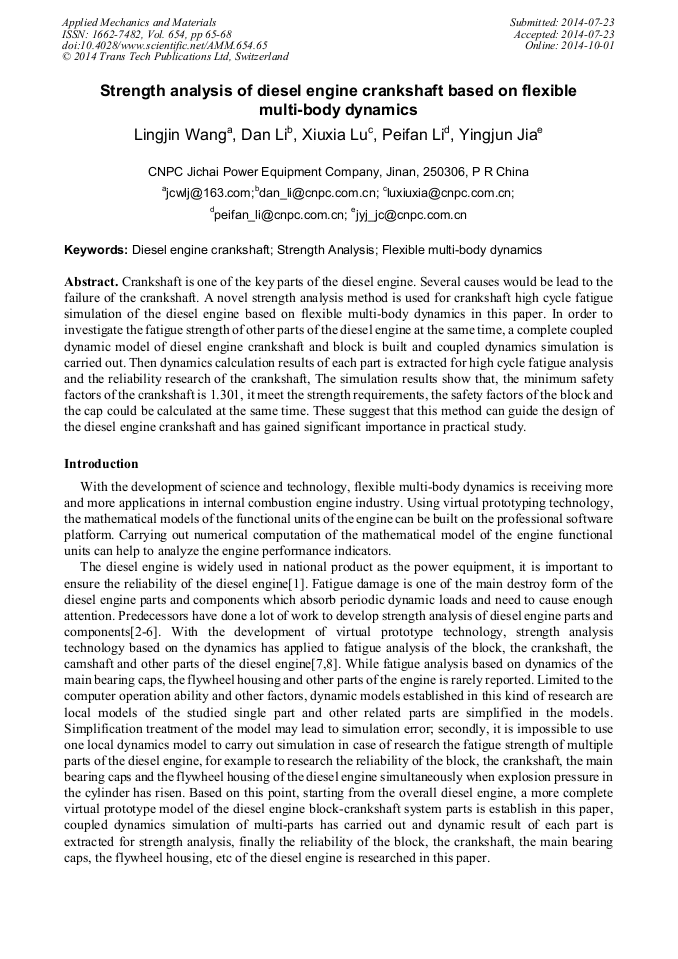

Strength Analysis of Diesel Engine Crankshaft Based on Flexible Multi-Body Dynamics

Abstract:

Crankshaft is one of the key parts of the diesel engine. Several causes would be lead to the failure of the crankshaft. A novel strength analysis method is used for crankshaft high cycle fatigue simulation of the diesel engine based on flexible multi-body dynamics in this paper. In order to investigate the fatigue strength of other parts of the diesel engine at the same time, a complete coupled dynamic model of diesel engine crankshaft and block is built and coupled dynamics simulation is carried out. Then dynamics calculation results of each part is extracted for high cycle fatigue analysis and the reliability research of the crankshaft, The simulation results show that, the minimum safety factors of the crankshaft is 1.301, it meet the strength requirements, the safety factors of the block and the cap could be calculated at the same time. These suggest that this method can guide the design of the diesel engine crankshaft and has gained significant importance in practical study.

• Periodical: Applied Mechanics and Materials (Volume 654)
• Pages: 65-68
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.654.65
• Online since: October 2014
• Authors: Ling Jin Wang, Dan Li, Xiu Xia Lu, Pei Fan Li, Ying Jun Jia
• Keywords: Diesel Engine Crankshaft, Flexible Multi-Body Dynamics, Strength Analysis

References

[1] Wenyong Xiao, Multi-factor predication of diesel engine by using artificial neural networks, International Journal of Digital Content Technology and its Applications, AICIT, vol. 4, no. 6, pp.161-167, (2010).

DOI: 10.4156/jdcta.vol4.issue6.19

[2] Malakizadi Ami, Chaman Hamidreza, Shahangian Seyed Navid, Jazayeri Seyed Ali, Sattarifar Iraj, Thermo-mechanical Fatigue Life Prediction of a Heavy Duty Diesel Engine Liner, In Proceedings of the 2007 Fall Technical Conference of the ASME Internal Combustion Engine Division, pp.529-535, (2008).

DOI: 10.1115/icef2007-1775

[3] Michaud H, Sprauel J. M, Analytical and Experimental Approach of Residual Stress on Deep-rolled Crankshafts and Auto-fretted Diesel Injection Rails: Effect on Fatigue Resistances in Service, Materials Science Forum, vol. 681, pp.261-266, (2011).

DOI: 10.4028/www.scientific.net/msf.681.261

[4] Thumser R, Bergmann J W, Herz E, Hertel O., Vormwald M., Variable Amplitude Fatigue of Autofrettaged Diesel Injection Parts, Materialwissenschaft und Werkstofftechnik, vol. 39, no. 10, pp.719-725, (2008).

DOI: 10.1002/mawe.200800353

[5] Hansen A V, Olesen J F, Agerskov H, An Investigation on the Influence of Root Defects on The FatigueLife of the Welded Structure of a Large Two-stroke Giesel Engine, Welding in the World, vol. 48, no. 5-6, pp.46-55, (2004).

DOI: 10.1007/bf03266431

[6] Son Jung Ho, Ahn Sung Chan, Bae Jong Gug, Ha Man Yeong, Fretting Damage Prediction of Connecting Rod of Marine Diesel Engine, Journal of Mechanical Science and Technology, vol. 25, no. 2, pp.441-447, (2011).

DOI: 10.1007/s12206-010-1206-6

[7] WANG Yuan, ZHANG Jiaxi, ZHU Huitian, Study on Dynamics and Multi-Axle Fatigue Analysis of Camshaft, Neiranji Gongcheng/Chinese Internal Combustion Engine Engineering, vol. 31, no. 1, pp.104-107, (2010).

[8] Sun Yaoguo, Du Haiming, Zhou Xun, Yu Xiaoli, Simulation of Fatigue Life of Diesel Engine Cylinder Block Based on Finite Element Analysis, Neiranji Gongcheng/Chinese Internal Combustion Engine Engineering, vol. 30, no. 4, pp.48-51, (2009).
