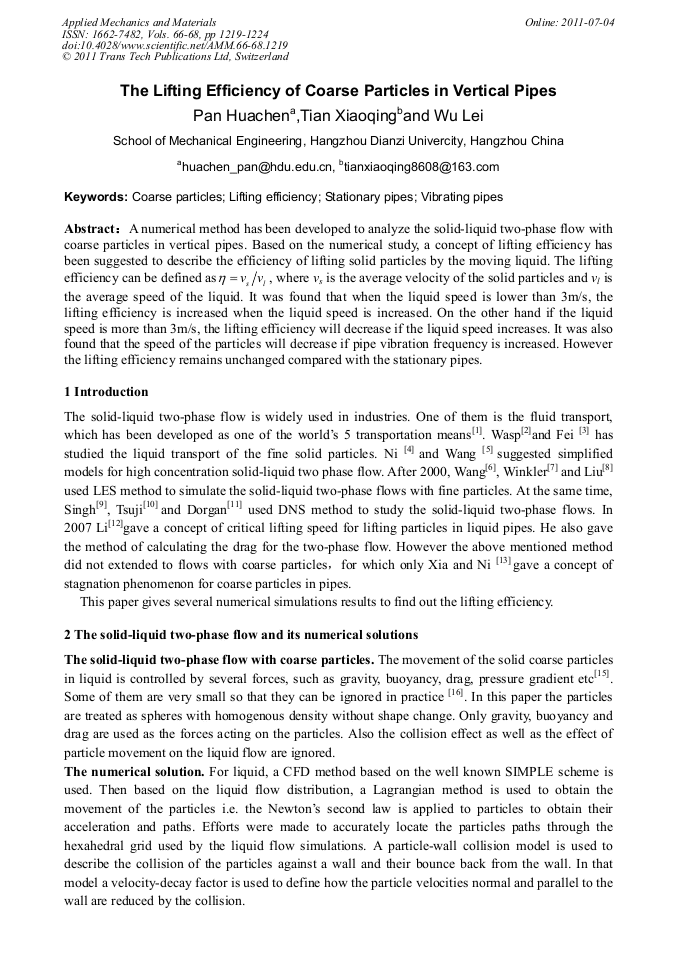

The Lifting Efficiency of Coarse Particles in Vertical Pipes

Abstract:

A numerical method has been developed to analyze the solid-liquid two-phase flow with coarse particles in vertical pipes. Based on the numerical study, a concept of lifting efficiency has been suggested to describe the efficiency of lifting solid particles by the moving liquid. The lifting efficiency can be defined as, where v_s is the average velocity of the solid particles and v_l is the average speed of the liquid. It was found that when the liquid speed is lower than 3m/s, the lifting efficiency is increased when the liquid speed is increased. On the other hand if the liquid speed is more than 3m/s, the lifting efficiency will decrease if the liquid speed increases. It was also found that the speed of the particles will decrease if pipe vibration frequency is increased. However the lifting efficiency remains unchanged compared with the stationary pipes.

• Periodical: Applied Mechanics and Materials (Volumes 66-68)
• Pages: 1219-1224
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.66-68.1219
• Online since: July 2011
• Authors: Hua Chen Pan, Xiao Qing Tian, Lei Wu
• Keywords: Coarse Particle, Lifting Efficiency, Stationary Pipes, Vibrating Pipes

References

[1] Xia J. Two phase flow and its application in hydraulic lifting of ocean polymetallic nodules, doctoral dissertation, China Mineral University, (2000).

[2] Wasp et al. Solid-liquid flow slurry pipeline transportation, Translated by Yellow River Commission, Hydropower Publisher, Beijing (1980).

[3] Fei et al. Fluid transport of slurry and particles, Tsinghua University Press, (1994).

[4] Ni and Wang. The mechanism of the steady solid-liquid two-phase flow with high concentration solid phase, Part I: Theory, Journal of Hydraulics, May (2000).

[5] Ni and Wang. The mechanism of the steady solid-liquid two-phase flow with high concentration solid phase, Part II: Applications, Journal of Hydraulics, May (2000).

[6] Wang A, Liu N S, Lu X Y. Large eddy simulation of particle transport in fully developed vertical turbulent channel flow, Journal of Hydrodynamics(Ser. B), 2001, 16(4): 386-392.

[7] Winkler C, Rani S L, Vanka S. Preferential concentration of particles in a fully developed turbulent square duct flow, International Journal of Multiphase Flow, 2004, 30: 27-50.

DOI: 10.1016/j.ijmultiphaseflow.2003.11.003

[8] Liu et all. Large eddy flow simulations for two-phase flow in a 3-D ditch, Journal of Huazhong University of Science and Technology (Natural Science), 2004, 32(11): 10-12.

[9] Singh P, Hesla T I, Joseph D D. Distributed Lagrange multiplier method for particulate flows with collisions, International Journal of Multiphase Flow, 2003, 29: 495-509.

DOI: 10.1016/s0301-9322(02)00164-7

[10] Tsuji T, Narutomi R, Yokomine T, et al. Unsteady three-dimensional simulation of interactions between flow and two particles. International Journal of Multiphase Flow, 2003, 29: 1431-1450.

DOI: 10.1016/s0301-9322(03)00137-x

[11] Dorgan A. and Loth E. Simulation of particles released near the wall in a turbulent boundary layer. International Journal of Multiphase Flow, 2004, 30: 649-673.

DOI: 10.1016/j.ijmultiphaseflow.2004.05.006

[12] Li P. Uplifting of coarse particles in vertical pipes, doctoral dissertation, Tsinghua University, (2007).

[13] Xia J. et al. Stagnation effect of the coarse particles in vertical pipes, Mineral Engineering, 22(3), (2002).

[14] Zou W. Private communications, (2009).

[15] Jiang L. Lfting speed and concentration of the coarse particles in vertical pipes, Master thesis, Tsinghua University, (2005).

[16] Huang et al. Equations for dispersed particle movement in any fluid flow, Applied mathematics and mechanism 2000(3): 265.

[17] Ansys12. 0 Help documents, Ansys Inc. (2009).
