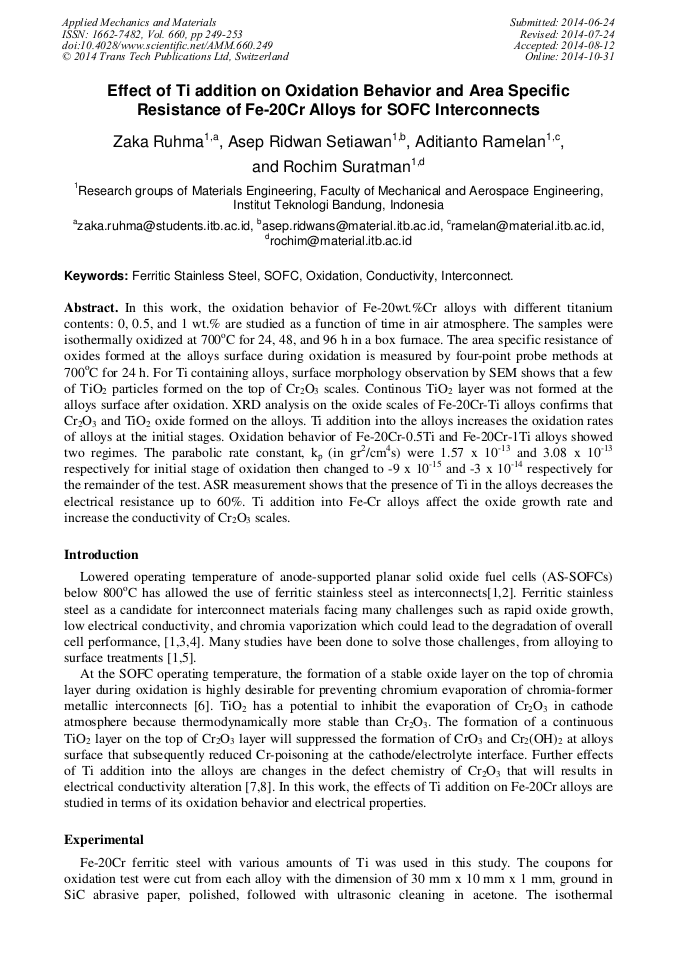

Effect of Ti Addition on Oxidation Behavior and Area Specific Resistance of Fe-20Cr Alloys for SOFC Interconnects

Abstract:

In this work, the oxidation behavior of Fe-20wt.%Cr alloys with different titanium contents: 0, 0.5, and 1 wt.% are studied as a function of time in air atmosphere. The samples were isothermally oxidized at 700°C for 24, 48, and 96 h in a box furnace. The area specific resistance of oxides formed at the alloys surface during oxidation is measured by four-point probe methods at 700°C for 24 h. For Ti containing alloys, surface morphology observation by SEM shows that a few of TiO₂ particles formed on the top of Cr₂O₃ scales. Continous TiO₂ layer was not formed at the alloys surface after oxidation. XRD analysis on the oxide scales of Fe-20Cr-Ti alloys confirms that Cr₂O₃ and TiO₂ oxide formed on the alloys. Ti addition into the alloys increases the oxidation rates of alloys at the initial stages. Oxidation behavior of Fe-20Cr-0.5Ti and Fe-20Cr-1Ti alloys showed two regimes. The parabolic rate constant, k_p (in gr²/cm⁴s) were 1.57 x 10^-13 and 3.08 x 10^-13 respectively for initial stage of oxidation then changed to-9 x 10^-15 and-3 x 10^-14 respectively for the remainder of the test. ASR measurement shows that the presence of Ti in the alloys decreases the electrical resistance up to 60%. Ti addition into Fe-Cr alloys affect the oxide growth rate and increase the conductivity of Cr₂O₃ scales.

• Periodical: Applied Mechanics and Materials (Volume 660)
• Pages: 249-253
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.660.249
• Online since: October 2014
• Authors: Zaka Ruhma, Asep Ridwan Setiawan*, Aditianto Ramelan, Rochim Suratman
• Keywords: Conductivity, Ferritic Stainless Steel, Interconnect, Oxidation, SOFC

References

[1] W. Zhu and S. Deevi, Development of interconnect materials for solid oxide fuel cells, Materials Science and Engineering, vol. 348, no. 1-2, pp.227-243, (2003).

DOI: 10.1016/s0921-5093(02)00736-0

[2] E. D. Wachsman and K. T. Lee, Lowering the temperature of solid oxide fuel cell, Science, vol. 334, no. 6058, pp.935-939, (2011).

DOI: 10.1126/science.1204090

[3] P. Kofstad and R. Bredesen, High temperature corrosion in SOFC environments, Solid State Ionics, vol. 52, pp.69-75, (1992).

DOI: 10.1016/0167-2738(92)90092-4

[4] Z. Zeng and K. Natesan, Corrosion of metallic interconnects for SOFC in fuel gases, Solid State Ionics, vol. 167, no. 1-2, pp.9-16, (2004).

DOI: 10.1016/j.ssi.2003.11.026

[5] N. Shaigan, W. Qu, D. G. Ivey and W. Chen, A Review of Recent Progress in Coatings, Surface Modification and Alloy Development for Solid Oxide Fuel Cell Ferritic Stainless Steel Interconnects, Journal of Power Sources, vol. 195, pp.1529-1542, (2010).

DOI: 10.1016/j.jpowsour.2009.09.069

[6] S. Geng and J. Zhu, Promising alloys for intermediate-temperature solid oxide fuel cell interconnect application, Journal of Power Sources, vol. 160, no. 2, pp.1009-16, (2006).

DOI: 10.1016/j.jpowsour.2006.02.028

[7] A. Atkinson, M. R. Levy, S. Roche and R. A. Rudkin, Defect properties of Ti-doped Cr2O3, Solid State Ionics, vol. 177, no. 19-25, pp.1767-1770, (2006).

DOI: 10.1016/j.ssi.2005.11.015

[8] A. Holt and P. Kofstad, Electrical Conductivity of Cr2O3 doped with TiO2, Solid State Ionics, vol. 117, no. 1-2, pp.21-25, (1999).

DOI: 10.1016/s0167-2738(98)00244-6

[9] W.J. Shong, Method and Apparatus for Measuring Metallic Area-Spesific Resistance. United States Patent US 766384 B2, 16 Feb. (2010).
