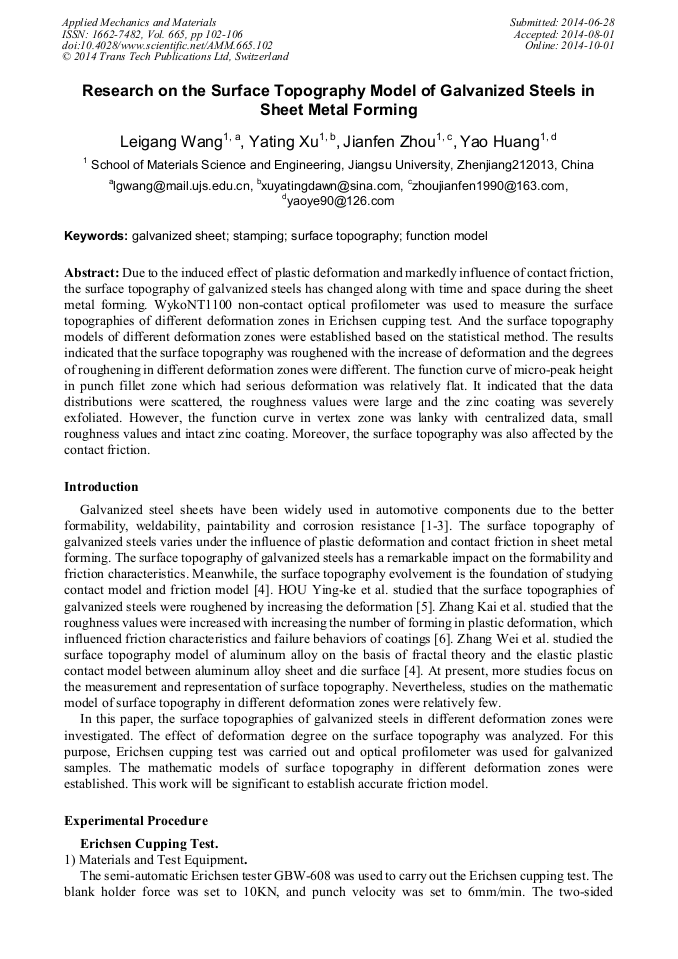

Research on the Surface Topography Model of Galvanized Steels in Sheet Metal Forming

Abstract:

Due to the induced effect of plastic deformation and markedly influence of contact friction, the surface topography of galvanized steels has changed along with time and space during the sheet metal forming. WykoNT1100 non-contact optical profilometer was used to measure the surface topographies of different deformation zones in Erichsen cupping test. And the surface topography models of different deformation zones were established based on the statistical method. The results indicated that the surface topography was roughened with the increase of deformation and the degrees of roughening in different deformation zones were different. The function curve of micro-peak height in punch fillet zone which had serious deformation was relatively flat. It indicated that the data distributions were scattered, the roughness values were large and the zinc coating was severely exfoliated. However, the function curve in vertex zone was lanky with centralized data, small roughness values and intact zinc coating. Moreover, the surface topography was also affected by the contact friction.

• Periodical: Applied Mechanics and Materials (Volume 665)
• Pages: 102-106
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.665.102
• Online since: October 2014
• Authors: Lei Gang Wang*, Ya Ting Xu, Jian Fen Zhou, Yao Huang
• Keywords: Function Model, Galvanized Sheet, Stamping, Surface Topography

References

[1] M. Safaeirad, M.R. Toroghinejad, F. Ashrafizadeh: Effect of microstructure and texture on formability and mechanical properties of hot-dip galvanized steel sheets. Journal of materials processing technology Vol. 196 (2008), pp.205-212.

DOI: 10.1016/j.jmatprotec.2007.05.035

[2] ZHANG Qi-fu, LIU Bang-jin. Recent development in study of effect of coating phase structure of IF galvannealed steel sheet on its properties. Iron and Steel Vol. 37 (12) (2002), pp.65-68. (In Chinese).

[3] DONG Shi-jie, ZHOU Norman. Effect of TiC coating on electrode tip surface on electrode degradation during resistance spot welding zinc coated steel. The Chinese Journal of Nonferrous Metals Vol. 15(2) (2005), pp.184-191. (In Chinese).

[4] ZHANG Wei, LI Zhi-gang. Research on the topography model of aluminum alloy sheet surface. China Mechanical Engineering Vol. 18(4) (2007), pp.492-495. (In Chinese).

[5] HOU Ying-ke, YU Zhong-qi, ZHANG Wei-gang, JIANG Hao-min, LIN Zhong-qin. Surface topography evolvement of galvanized steels in sheet metal forming. Trans. Nonferrous Met. Soc. China Vol. 19(2009), pp.305-310.

DOI: 10.1016/s1003-6326(08)60269-1

[6] ZHANG Kai, CHEN Guang-nan, ZHANG Kun, LI Huai-xue. Surface roughening of substrate of galvanized sheet induced by plastic deformation. Journal of Plasticity Engineering Vol. 15(6) (2008), pp.1-3. (In Chinese).

[7] XU Bing. Testing the ends of optical fibers surface profiler by Wyko NT1100. Metrology & Measurement Technique Vol. 40(2013), pp.35-36. (In Chinese).

[8] WEN Shi-zhu: Principle of Tribology [M] ( TSINGHUA University Press , Beijing 1990): (In Chinese).
