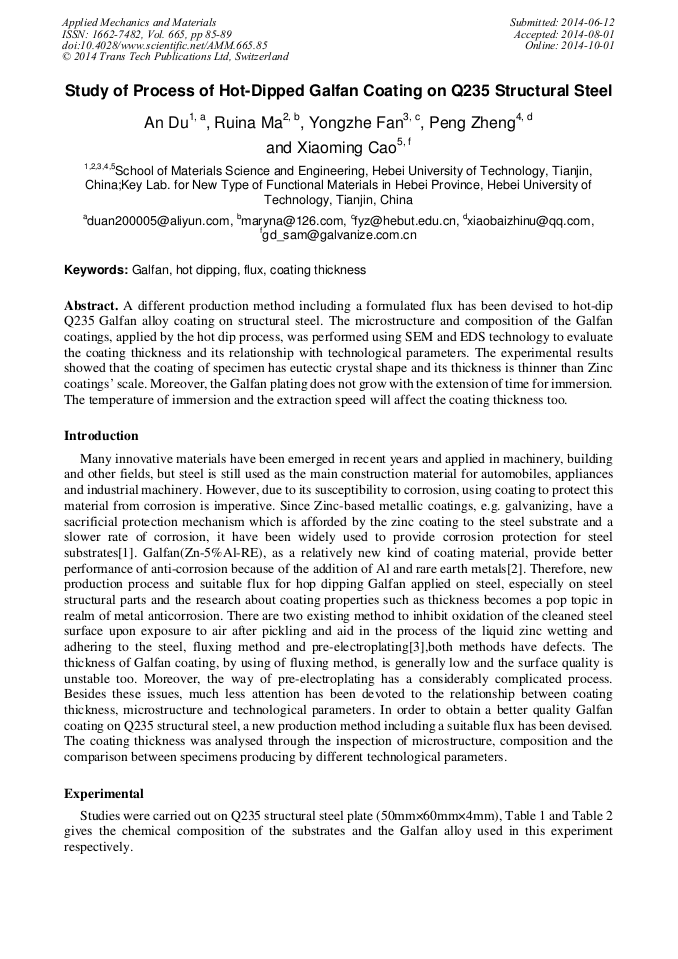

Study of Process of Hot-Dipped Galfan Coating on Q235 Structural Steel

Abstract:

A different production method including a formulated flux has been devised to hot-dip Q235 Galfan alloy coating on structural steel. The microstructure and composition of the Galfan coatings, applied by the hot dip process, was performed using SEM and EDS technology to evaluate the coating thickness and its relationship with technological parameters. The experimental results showed that the coating of specimen has eutectic crystal shape and its thickness is thinner than Zinc coatings’ scale. Moreover, the Galfan plating does not grow with the extension of time for immersion. The temperature of immersion and the extraction speed will affect the coating thickness too.

• Periodical: Applied Mechanics and Materials (Volume 665)
• Pages: 85-89
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.665.85
• Online since: October 2014
• Authors: An Du*, Rui Na Ma, Yong Zhe Fan, Peng Zheng, Xiao Ming Cao
• Keywords: Coating Thickness, Flux, Galfan, Hot Dipping

References

[1] F. Rosalbino, E. Angelini. Influence of rare earths addition on the corrosion behaviour of Zn–5%Al (Galfan) alloy in neutral aerated sodium sulphate solution. Electrochimica Acta. 52 (2007) 7107-7114.

DOI: 10.1016/j.electacta.2007.05.041

[2] F. Rosalbino, E. Angelini. Application of EIS to assess the effect of rare earths small addition on the corrosion behaviour of Zn–5%Al(Galfan)alloy in neutral aerated sodium chloride solution. Electrochimica Acta. 54(2009)1204-1209.

DOI: 10.1016/j.electacta.2008.08.063

[3] H.Y. Sun, R.N. Ma. Comparison of hot-dipping Galfan alloy aided by two technics. Hot Working Technology. 36(2007)45-49.

[4] Q.Z. Gao (2009). Research on microstructure and process of hot-dipping galfan coating bysendzimir. Tian Jin: Hebei University of Technology.

[5] S. Feliu Jr, V. Barranco. XPS study of the surface chemistry of conventional hot-dip galvanised pure Zn, galvanneal and Zn–Al alloy coatings on steel. Acta Materialia. 51(2003)5413-5424.

DOI: 10.1016/s1359-6454(03)00408-7

[6] Q. Z Gao, B. Feng. Research progress of formation mechanism of hot-dip Zn-5%Al-RE Galfan alloy layer. Hot Working Technology. 37(2008)89-91.

[7] H.C. Shih, J.W. Hsu, C.N. Sun, S.C. Chung. The lifetime assessment of hot-dip 5% Al–Zn coatings in chloride environments. Surface and Coatings Technology. 150(2002)70-75.

DOI: 10.1016/s0257-8972(01)01508-0

[8] X.B. Zhao, A. Du. Kinetics of interfacial layer during hot-dip Galfan alloys. Journal of HeBei University of Technology. 40(2011)70-77.

[9] A. Du, R.N. Ma. Effects of dipping temperature on hot-dip Galfan coating of steel wire. Transactions of materials and heat treatment. 31(2010)144-148.
