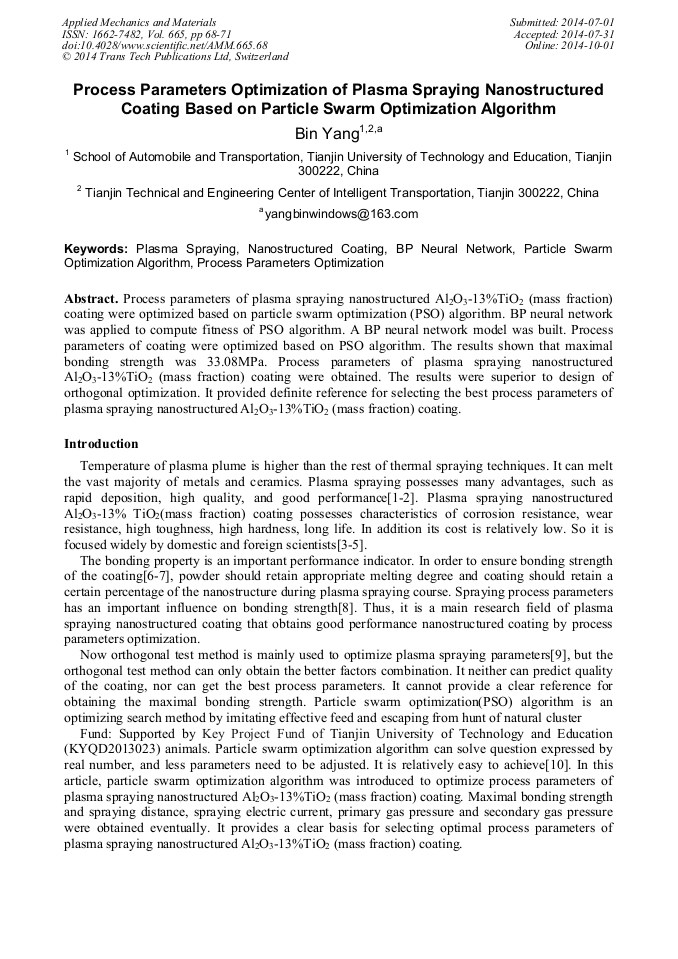

Process Parameters Optimization of Plasma Spraying Nanostructured Coating Based on Particle Swarm Optimization Algorithm

Abstract:

Process parameters of plasma spraying nanostructured Al₂O₃-13%TiO₂ (mass fraction) coating were optimized based on particle swarm optimization (PSO) algorithm. BP neural network was applied to compute fitness of PSO algorithm. A BP neural network model was built. Process parameters of coating were optimized based on PSO algorithm. The results shown that maximal bonding strength was 33.08MPa. Process parameters of plasma spraying nanostructured Al₂O₃-13%TiO₂ (mass fraction) coating were obtained. The results were superior to design of orthogonal optimization. It provided definite reference for selecting the best process parameters of plasma spraying nanostructured Al₂O₃-13%TiO₂ (mass fraction) coating.

• Periodical: Applied Mechanics and Materials (Volume 665)
• Pages: 68-71
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.665.68
• Online since: October 2014
• Authors: Bin Yang
• Keywords: BP Neural Network (BPNN), Nanostructured Coating, Particle Swarm Optimization Algorithm, Plasma Spraying, Process Parameters Optimization

References

[1] Chris Berndt. Thermal spray processing of nanoscale materials[J]. Journal of Thermal Spray Technology, 2001, 7(3): 147-181.

DOI: 10.1361/105996301770349637

[2] Lbrahim A, Lima R S, Berndt C C, et al. Fatigue mechanical properties of nanostructured and conventional( TiO2) thermal spray coatings[J]. Surface and Coating Technology, 2007, 201(16/17): 7589-7596.

DOI: 10.1016/j.surfcoat.2007.02.025

[3] Lima R S, Kucuk A, Berndt C C. Evaluation of microhardness and elastic modulus of thermally sprayed nanostructured zirconia coatings[J]. Surface and Coatings Technology, 2001, 135: 166-172.

DOI: 10.1016/s0257-8972(00)00997-x

[4] Di Yinghao, Zhang Jianxin, Yan Dianran, et al. Friction and Wear Resistance of Plasma Sprayed Nano- Al2O3/TiO2 Coating[J]. Heat Treatment of Metals, 2005, 30(5): 4-7.

[5] Xu Binshi, Ou Zhongwen, Ma Shining, et al. Nano-surface engineering [J]. China Mechanical Engineering, 2000, 11(6): 707-712.

[6] Chen Yajun, Wang Zhiping, Ji Zhaohui, et al. Bond strength and wear performance of plasma sprayed and arc sprayed Ni-Cr-Al coatings[J]. Transactions of Materials and Heat Treament, 2011, 32(2): 119-123.

[7] Wang Dongsheng, Tian Zongjun, Shen Lida, et al. Microstructure and formation mechanism of plasma-sprayed nanostructured composite ceramic coatings[J]. The Chinese Journal of Nonferrous Metals, 2009, 19(1): 77-83.

[8] Wang Tiegang, Song Binghong, Hua Weigang, et al. Influence of Process Parameters on The Performance Uniformity of Detonation Gun Sprayed Wc-Co Coatings[J]. Acta Metallurgica Sinica, 2011, 47(1): 115-122.

[9] Fan Jiming, Lu Yuxiang, Li Chunling, et al. Optimization of Plasma Spraying Process Parameters for Cr3C2-NiCr Coating[J]. Hot Working Technology, 2009, 38(20): 100-103.

[10] Huang Lei. Overview of Particle Swarm Optimization[J]. Mechanical Engineering & Automation, 2010, 162(5): 197-199.
