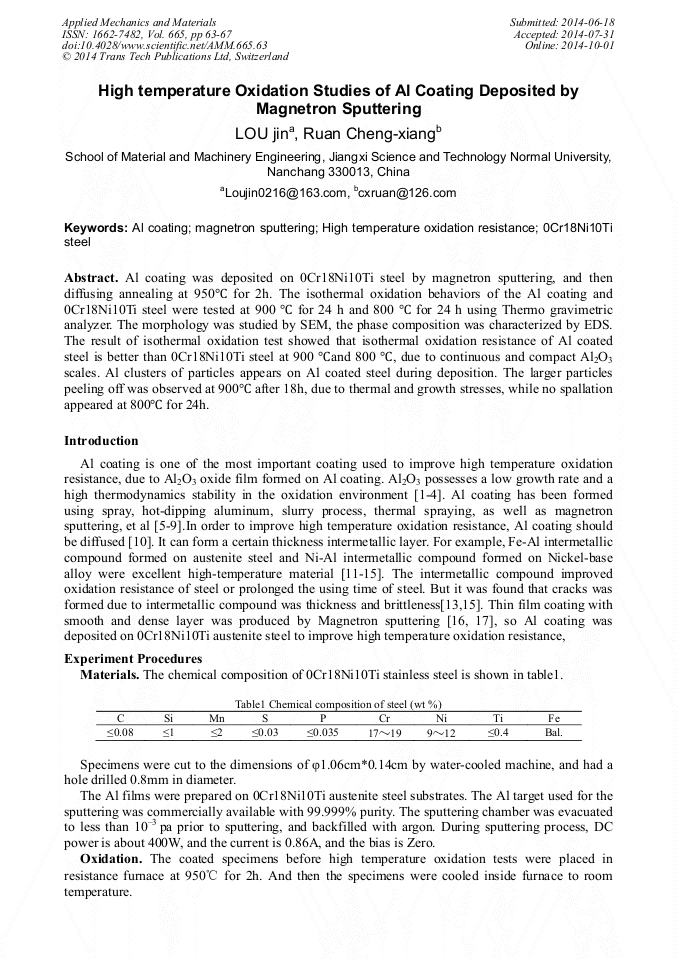

High Temperature Oxidation Studies of Al Coating Deposited by Magnetron Sputtering

Abstract:

Al coating was deposited on 0Cr18Ni10Ti steel by magnetron sputtering, and then diffusing annealing at 950°C for 2h. The isothermal oxidation behaviors of the Al coating and 0Cr18Ni10Ti steel were tested at 900 °C for 24 h and 800 °C for 24 h using Thermo gravimetric analyzer. The morphology was studied by SEM, the phase composition was characterized by EDS. The result of isothermal oxidation test showed that isothermal oxidation resistance of Al coated steel is better than 0Cr18Ni10Ti steel at 900 °Cand 800 °C, due to continuous and compact Al₂O₃ scales. Al clusters of particles appears on Al coated steel during deposition. The larger particles peeling off was observed at 900°C after 18h, due to thermal and growth stresses, while no spallation appeared at 800°C for 24h.

• Periodical: Applied Mechanics and Materials (Volume 665)
• Pages: 63-67
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.665.63
• Online since: October 2014
• Authors: Jin Lou, Cheng Xiang Ruan
• Keywords: 0Cr18Ni10Ti Steel, Al Coating, High Temperature Oxidation Resistance, Magnetron Sputtering

References

[1] Li Dong-sheng, Dai Qi-xun, Cheng Xiao-nong, et al. Journal of iron and steel, 19(2012): 74-78.

[2] Opila E J. Mat Sci Forum, 765(2004) 461- 464.

[3] Pintb A, Peraldi R, Maziasz P Z. Mat Sci Forum, 815(2004): 461- 464.

[4] Brady M P, Yamamoto Y, Lu Z P, et al. Chinese Journal of Nature, 30(2008): 189-191.

[5] Hu chuan-qi. Surface Modification Handbook. (beijing University of Technology Press, china, 2005): 308-310.

[6] Srivastava VC, GHosal P, Ojha SN. Mater Lett 56(2002): 797-801.

[7] Hu TL, Huang HL, Lee TY. Surf Coat Technol, 201(2006): 3502-3509.

[8] Awan GH, Hasan FU. Mater Sci Eng A, 472(2008): 157-165.

[9] Xie Kun1, Cui Hongzhi1, Sun Jinquan1, Xia Pengcheng1, et al. Rare Metal Materials and Engineering, 40(2011): 661-664.

[10] Liu Bangjin, The Hot-Dipping Aluminizing Process on Steels . (Metallurgical industry press, china, 1995): 5.

[11] Wei-Jen Cheng, Chaur-Jeng Wang: surface and coatings technology, Vol. 204( 2009): 824-826.

[12] Wei-Jen Cheng, Chaur-Jeng Wang: Applied Surface Science, Vol. 274 (2013): 258-265.

[13] Chaur-Jeng Wang, Shih-Ming Chen. surface and coatings technology, Vol. 201(2006): 3862- 3866.

[14] Yang shi-wei, Wu jin-wei, Cui li-ping: Journal of Harbin Engineering University, Vol. 24(2003): 198-200.

[15] Zhao Xia, Xu Jia-wen, Sun Yong-xin: Heat treatment of metals, Vol. 34(2009): 76-79.

[16] A.K. Chu, C.H. Chao, F.Z. Lee, H. L Huang. Journal of Electronic Materials, 30(2001): 3-7.

[17] Adele Carrado`, Mohamed A. Taha, Nahed A. El-Mahallawy. J. Coat. Technol. Res., 7 (2010): 515–519.

[18] DepingWang, Ziyuan Shi. Applied Surface Science, 227(2004): 225-260.

[19] Lin Jing, Liu Zhuang, Sun Zhi-hui, et al. Chinese Journal of Vacuum Science and Technology, 29(209): 91-93.

[20] Zhang Lin-lin, Huang Mei-dong, Li Peng, et al. Journal of Tian jian Normal University(Natural Science Ediion), 31(2011): 38-41.

[21] Chaur-Jeng, Shi-Ming Chen: Surface and coatings technology, 200(2006): 6601-6605.
