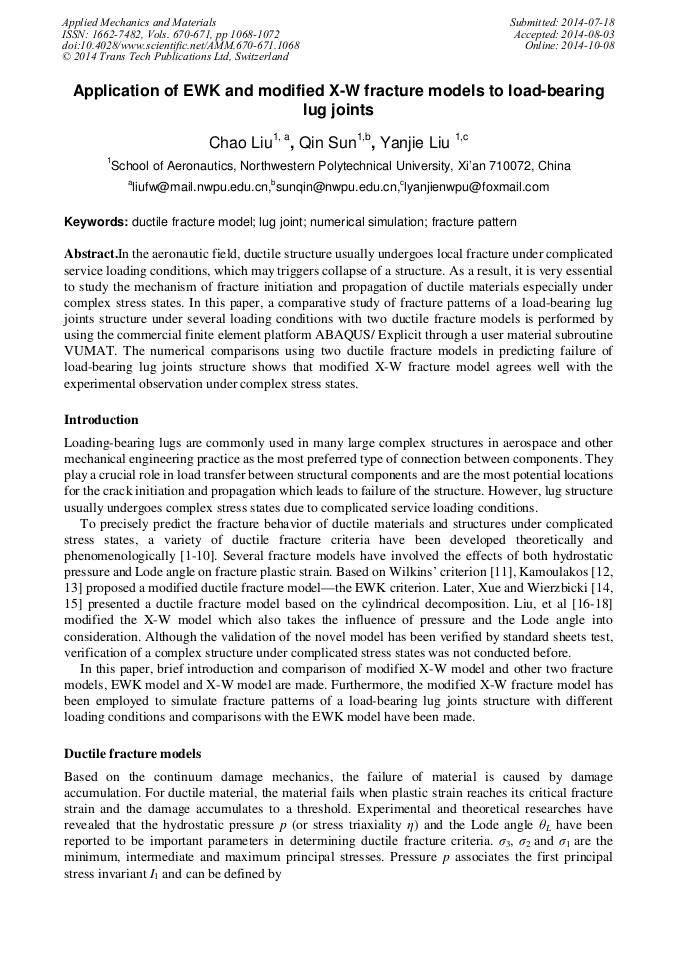

Application of EWK and Modified X-W Fracture Models to Load-Bearing Lug Joints

Abstract:

In the aeronautic field, ductile structure usually undergoes local fracture under complicated service loading conditions, which may triggers collapse of a structure. As a result, it is very essential to study the mechanism of fracture initiation and propagation of ductile materials especially under complex stress states. In this paper, a comparative study of fracture patterns of a load-bearing lug joints structure under several loading conditions with two ductile fracture models is performed by using the commercial finite element platform ABAQUS/ Explicit through a user material subroutine VUMAT. The numerical comparisons using two ductile fracture models in predicting failure of load-bearing lug joints structure shows that modified X-W fracture model agrees well with the experimental observation under complex stress states.

• Periodical: Applied Mechanics and Materials (Volumes 670-671)
• Pages: 1068-1072
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.670-671.1068
• Online since: October 2014
• Authors: Chao Liu*, Qin Sun, Yan Jie Liu
• Keywords: Ductile Fracture Model, Fracture Pattern, Lug Joint, Numerical Simulation

References

[1] I. Barsoum, J. Faleskog: Int J Solids Struct, Vol. 44 (2007) No. 6, p.1768.

[2] X. Gao, J. Kim: Int J Solids Struct, Vol. 43(2006) No. 20, p.6277.

[3] A.L. Gurson: J Eng Mater Technol, Vol. 99(1977) No. 1, p.2.

[4] G.R. Johnson, W.H. Cook: Eng Fract Mech, Vol. 21(1985) No. 1, p.31.

[5] J. Kim, G. Zhang and X. Gao: Int J Solids Struct, Vol. 44(2007) No. 6, p.1844.

[6] N. Loizou, R.B. Sims: J Mech Phys Solids, Vol. 1(1953) No. 4, p.234.

[7] K. Nahshon, J.W. Hutchinson: Eur J Mech A-Solid, Vol. 27(2008) No. 1, p.234.

[8] T. Pardoen: Comput Struct, Vol. 84(2006) No. 26, p.1641.

[9] T.J. Wang: Eng Fract Mech, Vol. 48(1994) No. 2, p.217.

[10] Y. Bai, T. Wierzbicki: Int J Plasticity, Vol. 24(2008) No. 6, p.1071.

[11] M.L. Wilkins, R.D. Streit and J.E. Reaugh: Technical Report Ucrl-53058(Lawrence Livermore national Laboratory, 1980) p.8.

[12] A. Kamoulakos, P. Culiere and T. Araki: International Body Engineering Conference (Chiba, Japan, 2003). p.47.

[13] A. Kamoulakos: Continuum Scale Simulation of Engineering Materials (Wiley-VCH Verlag GmbH & Co. KGaA, Berlin 2005).

[14] L. Xue: Int J Solids Struct, Vol. 44(2007) No. 16, p.5163.

[15] L. Xue, T. Wierzbicki: Int J Solids Struct, Vol. 46(2008), p.1423.

[16] C. Liu, Q. Sun, Y.J. Liu and X. L Fan: J Aeronaut Mater, Vol. 33(2013) No. 1, p.93. (in chinese).

[17] Y.J. Liu, Q. Sun, X. L Fan and T. Suo: Mat. Sci. Eng. A–Struct, Vol. 576 (2013), p.337.

[18] Y.J. Liu, Q. Sun: Mat. Sci. Eng. A–Struct, Vol. 589 (2014), p.262.
